Scan Tool Testing and Procedures

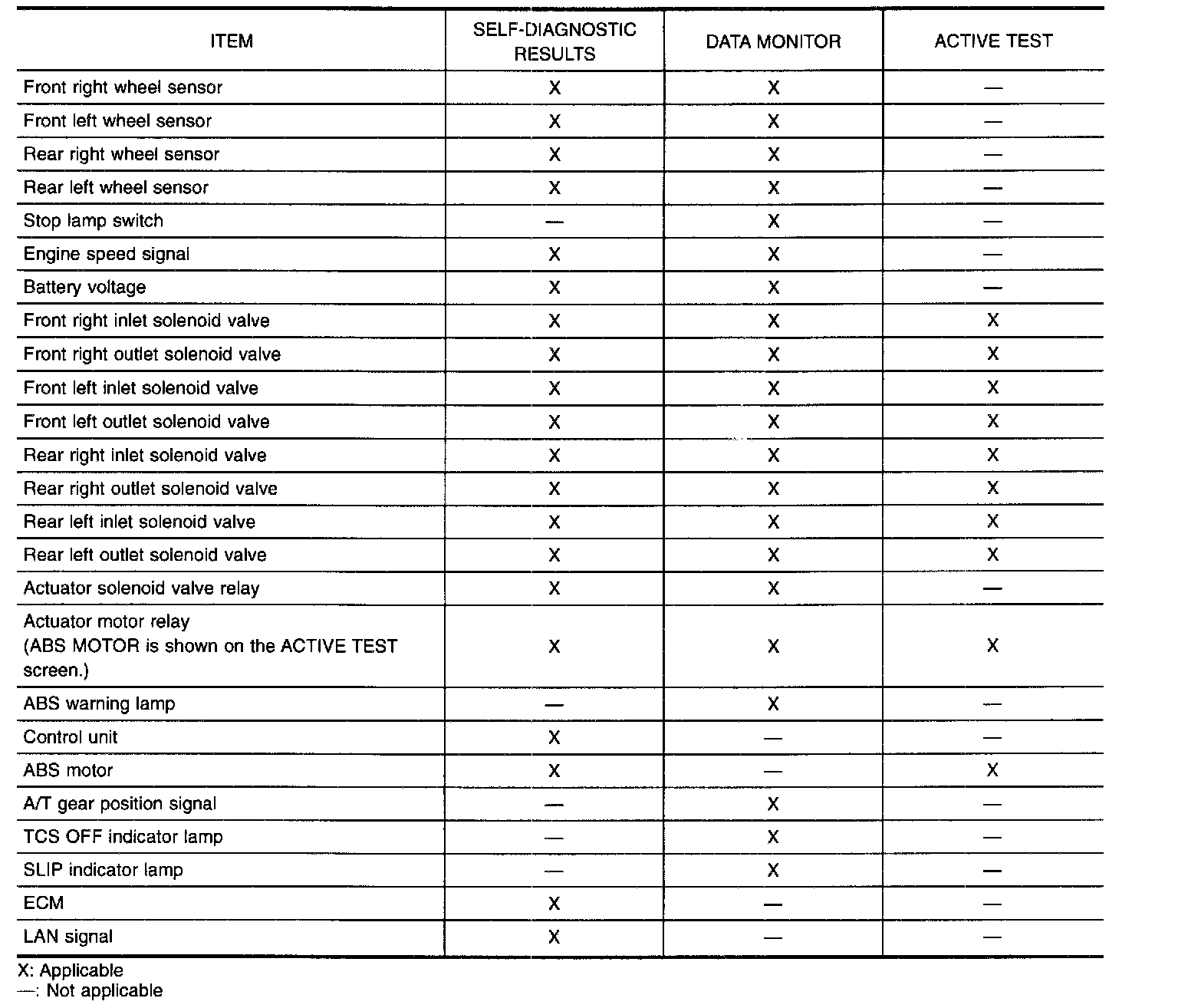

CONSULT APPLICATION TO ABS/TCS

ECU (ABS/TCS CONTROL UNIT) PART NUMBER MODE
Ignore the ECU part number displayed in the ECU PART NUMBER MODE.

CONSULT INSPECTION PROCEDURE





Self Diagnosis Procedure








Self-Diagnostic Results Mode

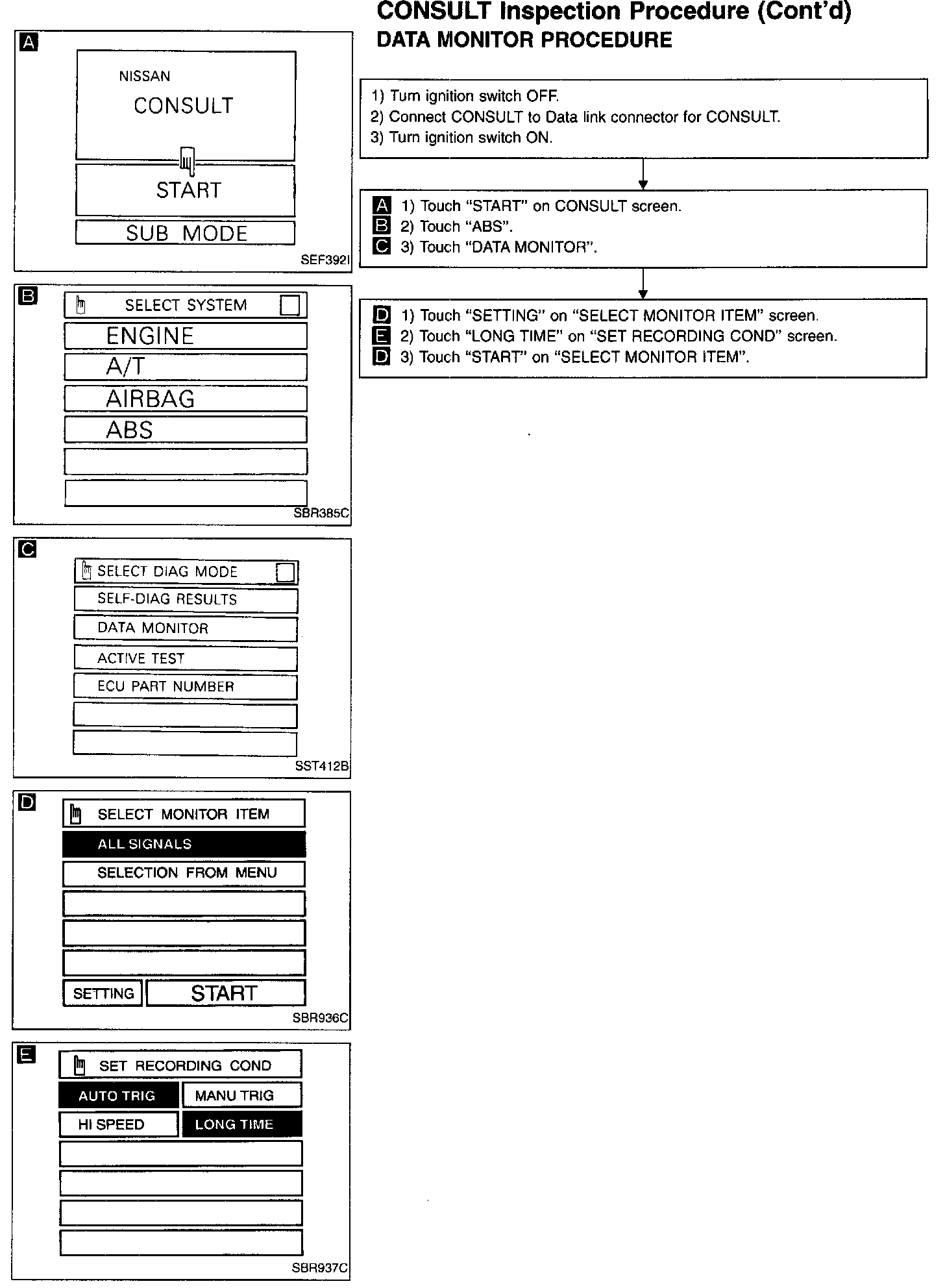

Data Monitor Procedure

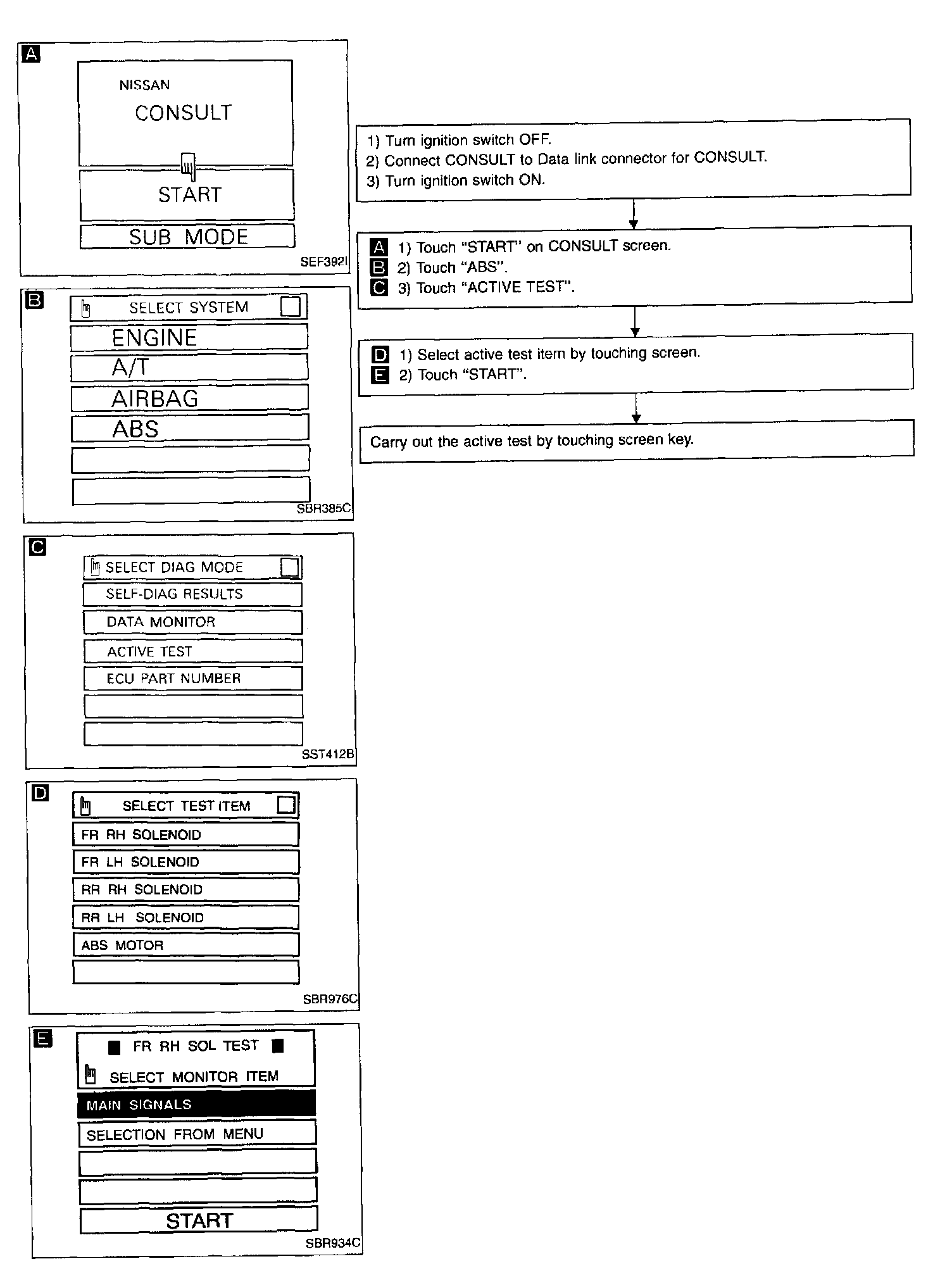

Active Test Procedure
- When conducting Active Test, vehicle must be stationary.
- When Anti-lock Brake System (ABS) warning lamp stays on, never conduct Active Test.

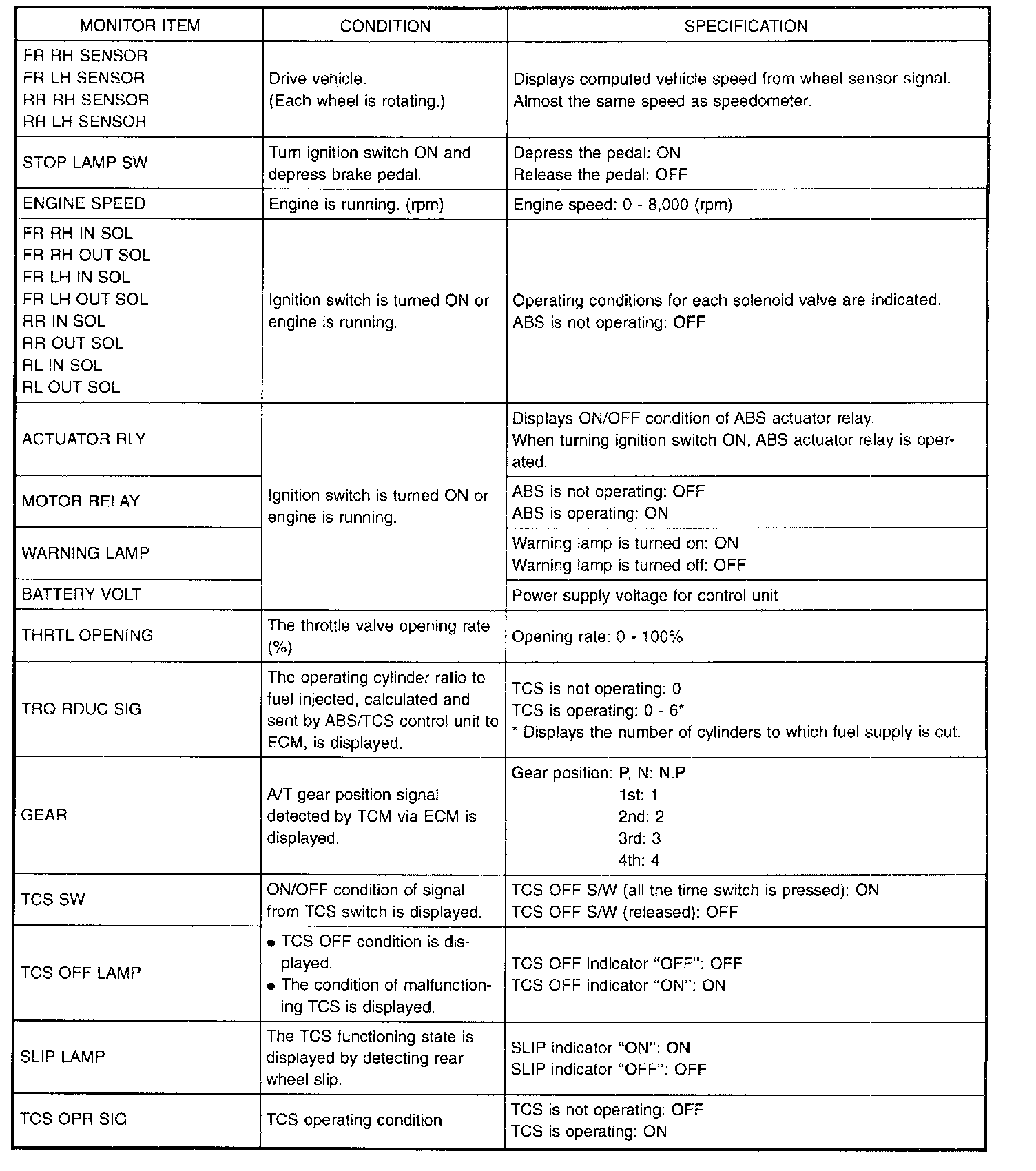

Data Monitor Mode

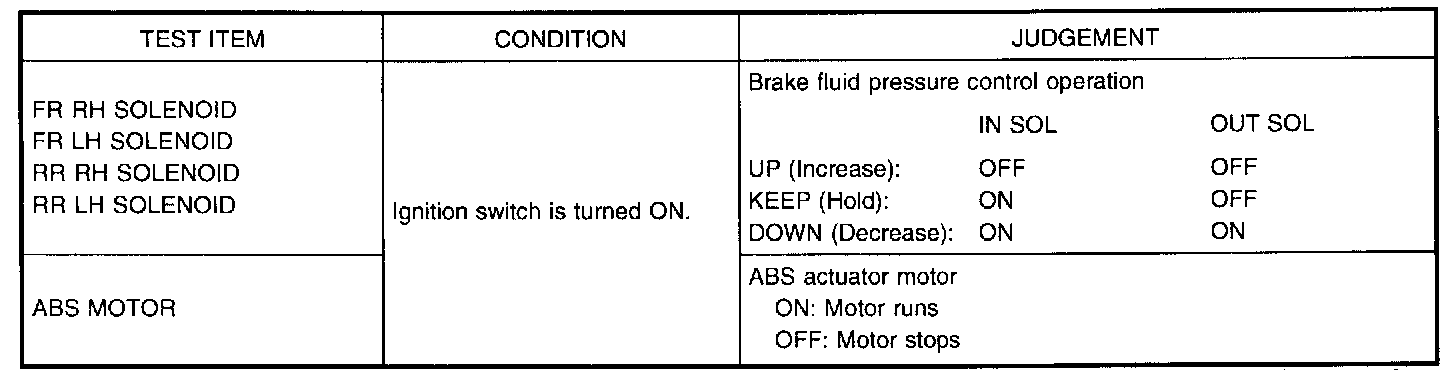

Active Test Mode

NOTE: Active Test will automatically stop ten seconds after the test starts. (TEST IS STOPPED monitor shows ON.)
