Without CONSULT Scan Tool

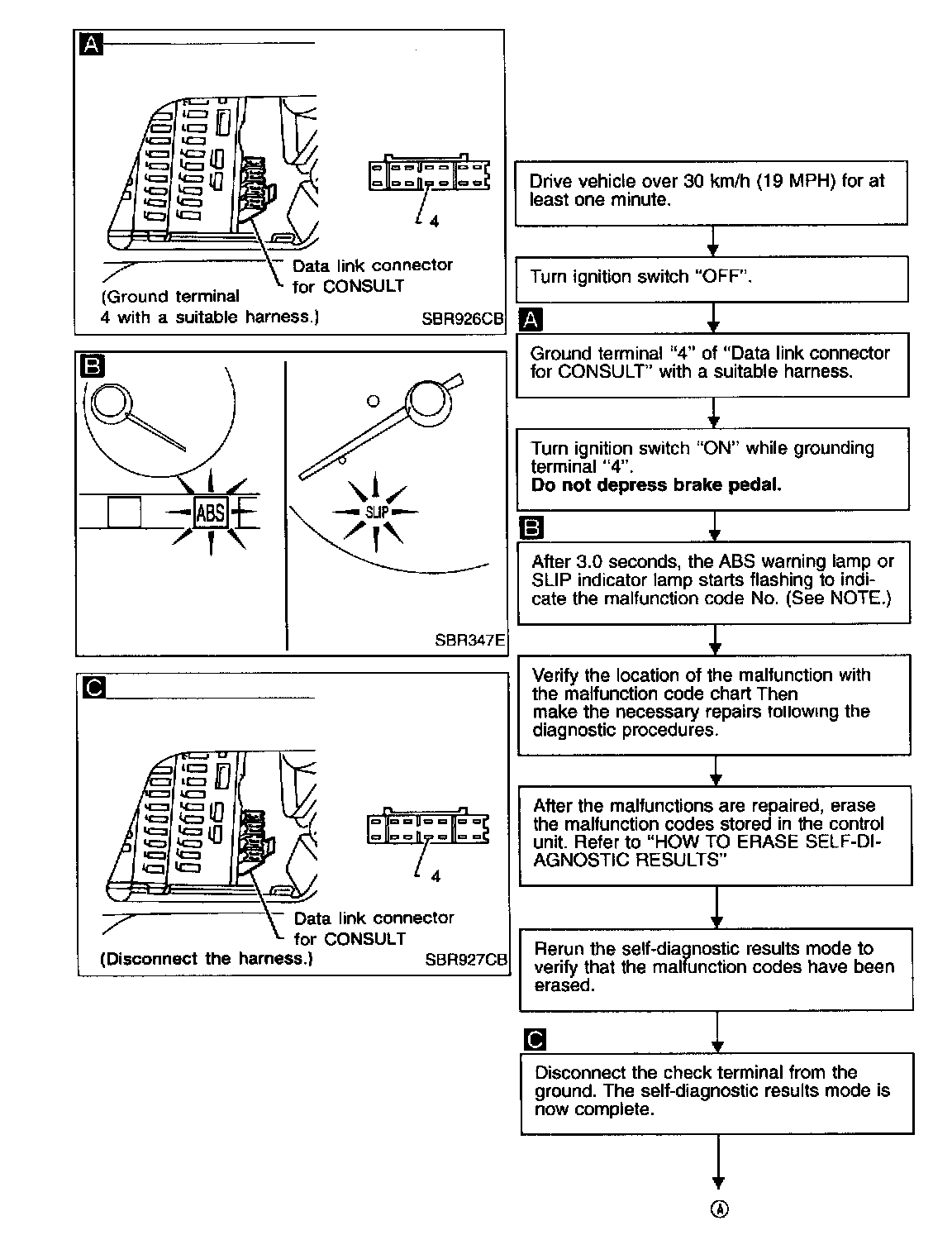

SELF-DIAGNOSIS PROCEDURE

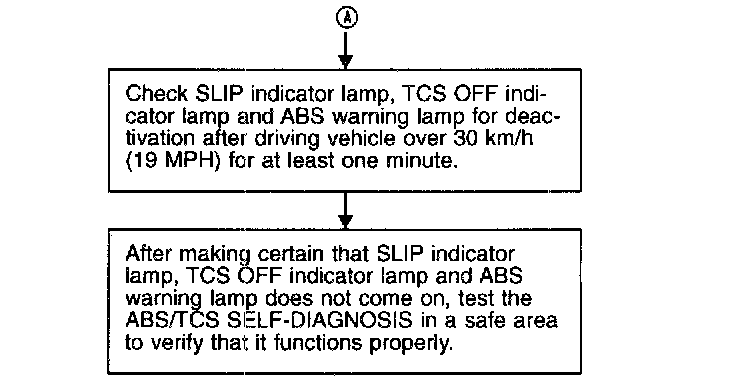

NOTE: The indication terminates after five minutes. However, when the ignition switch is turned from "OFF" to "ON", the SLIP indication starts flashing again. The TCS OFF indicator lamp and Anti-lock Brake System (ABS) warning lamp remain lighted.
