Home >> Nissan-Datsun >> 1999 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Reading and Clearing Diagnostic Trouble Codes >> How to Display and Read Diagnostic Trouble Codes >> With CONSULT Scan Tool

With CONSULT Scan Tool

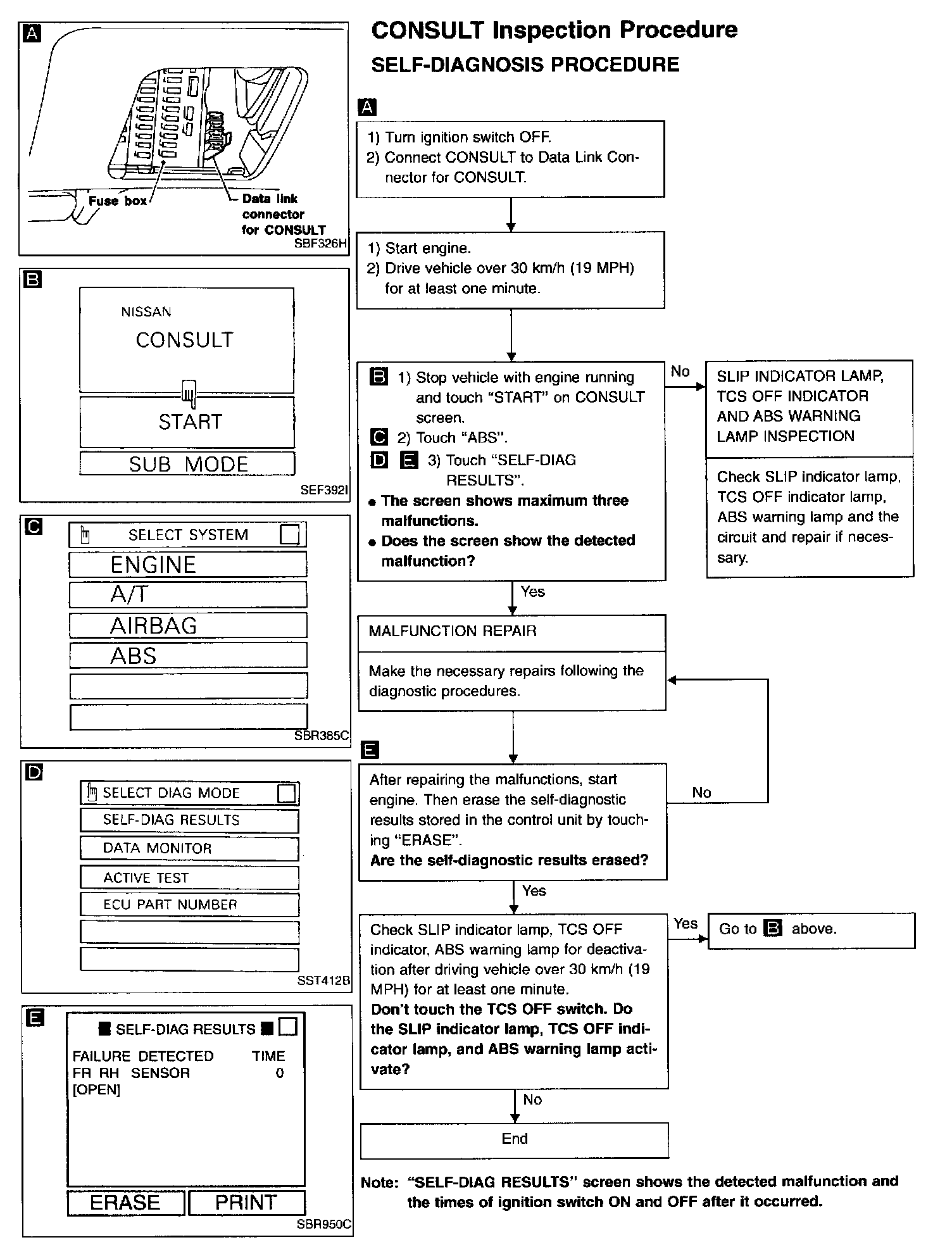

CONSULT INSPECTION PROCEDURE





Self Diagnosis Procedure

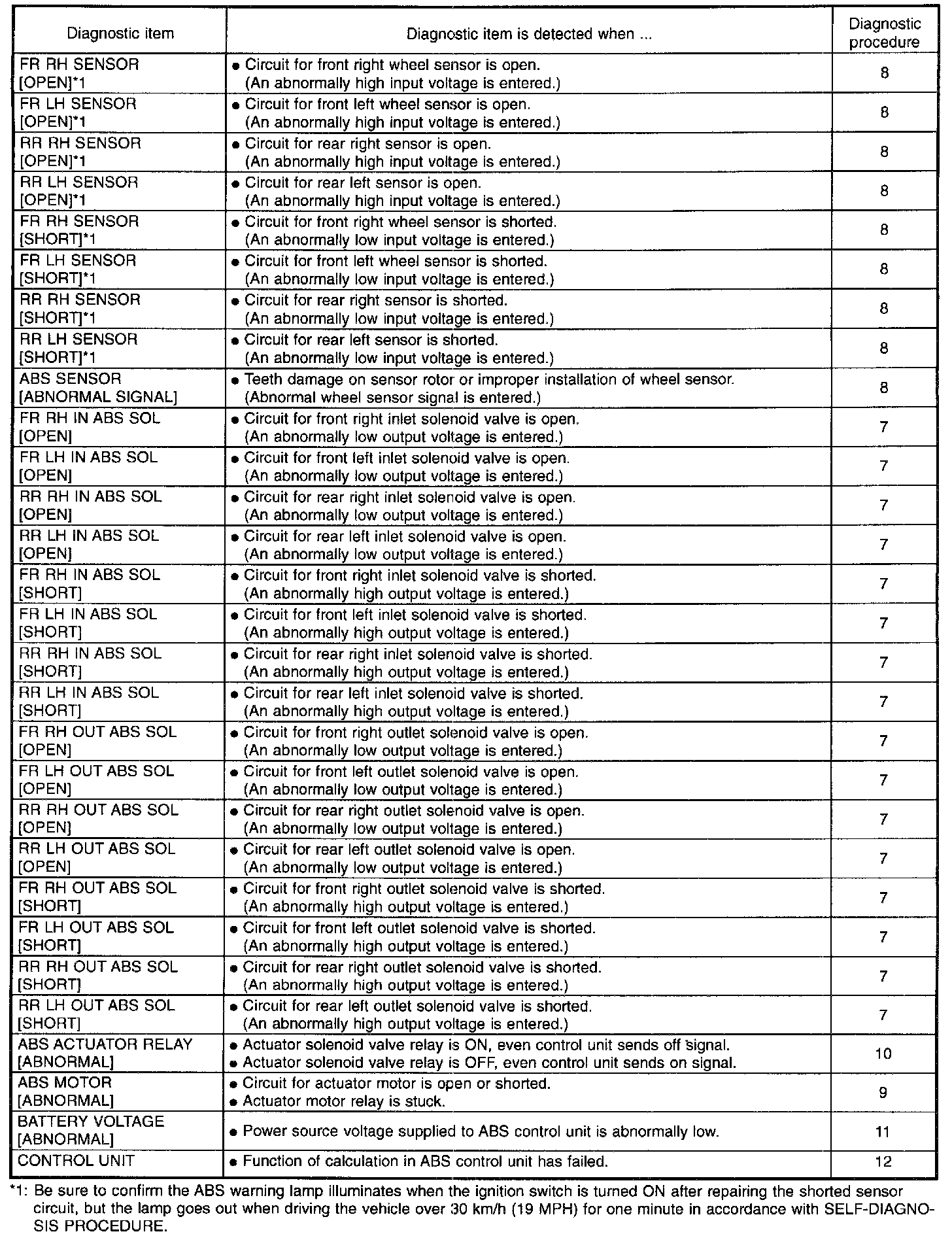

Self-Diagnostic Results Mode
