On Board Diagnostic Results Indicator Lamp

On-Board Diagnostic Results Indicator Lamp

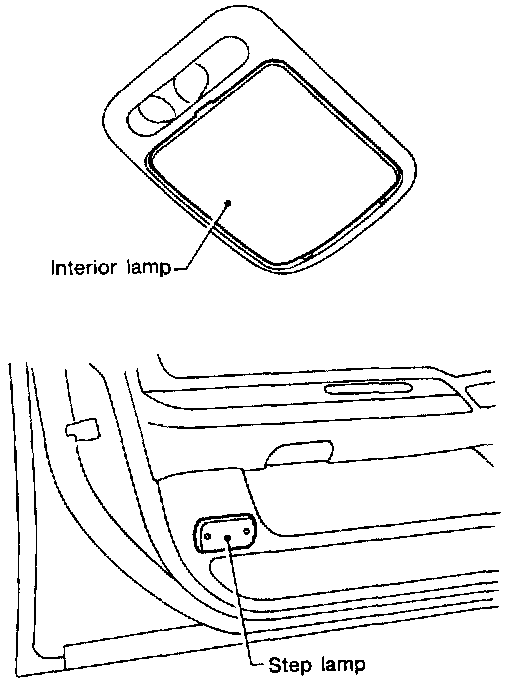

The interior lamp and step lamps (front seats) act as the indicators for the on-board diagnosis. These lamps blink simultaneously in response to diagnostic results.

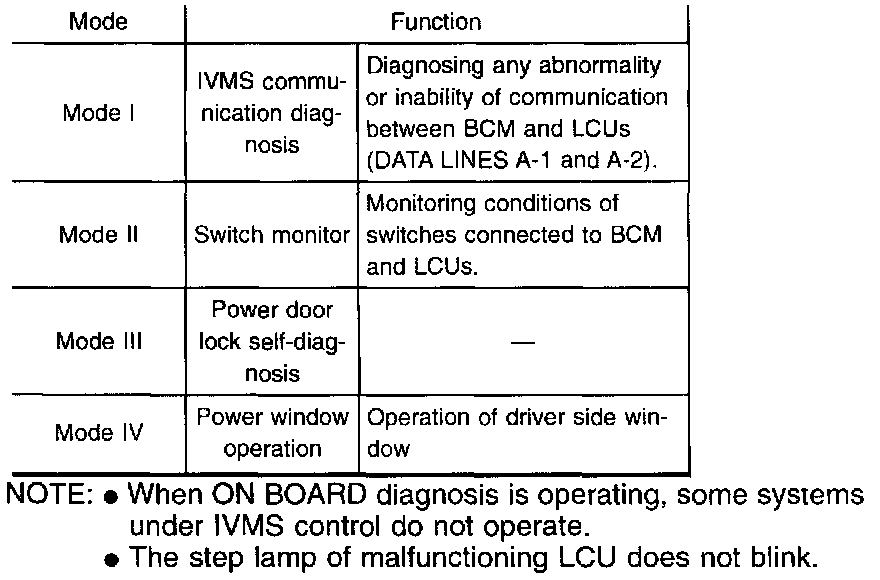

On-Board Diagnostic Function

NOTE:
- When ON BOARD diagnosis is operating, some systems under IVMS control do not operate.
- The step lamp of malfunctioning LCU does not blink.
