BCM Pinout Values

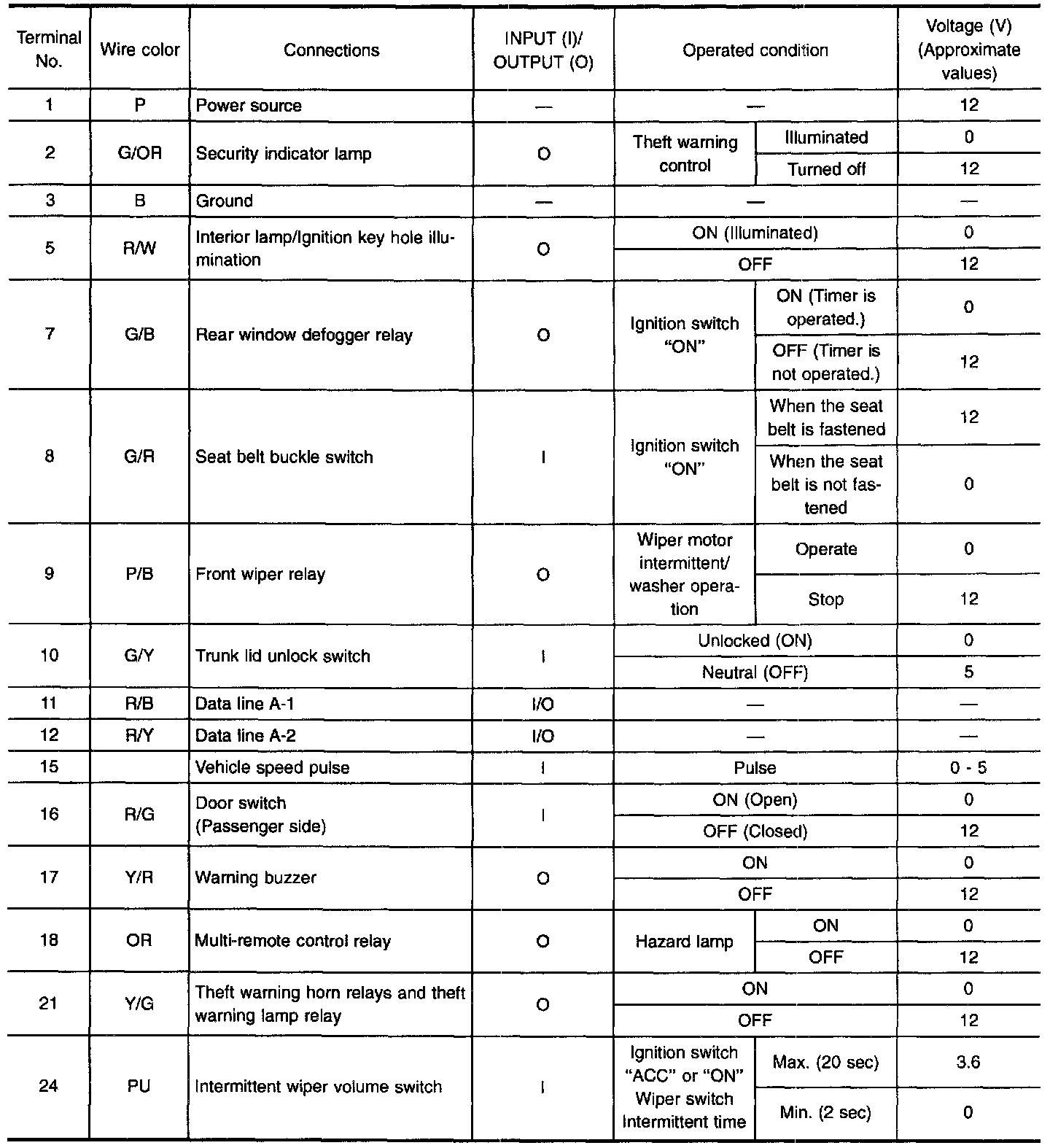

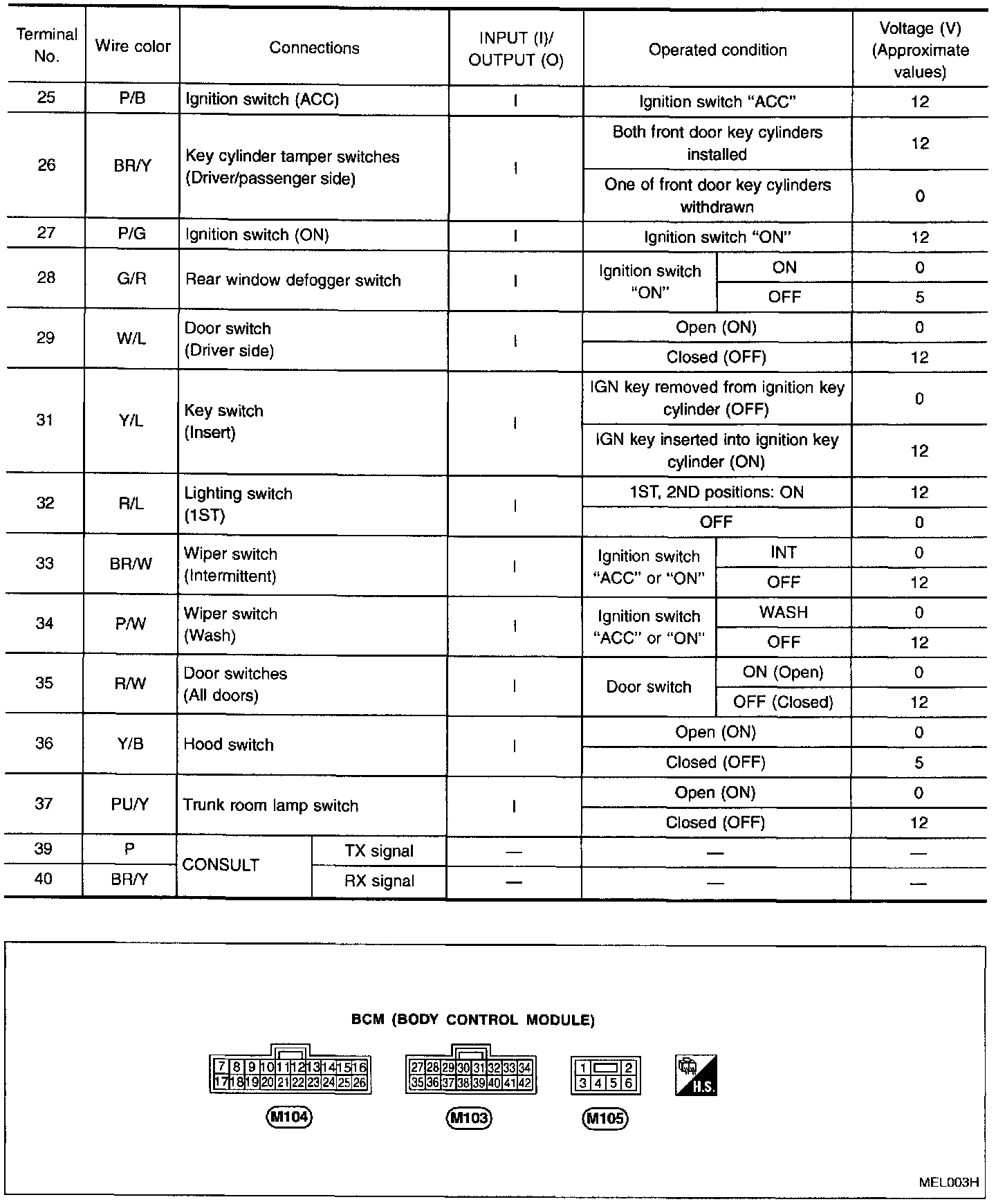

Body Control Module - Input/Output Operation Signal

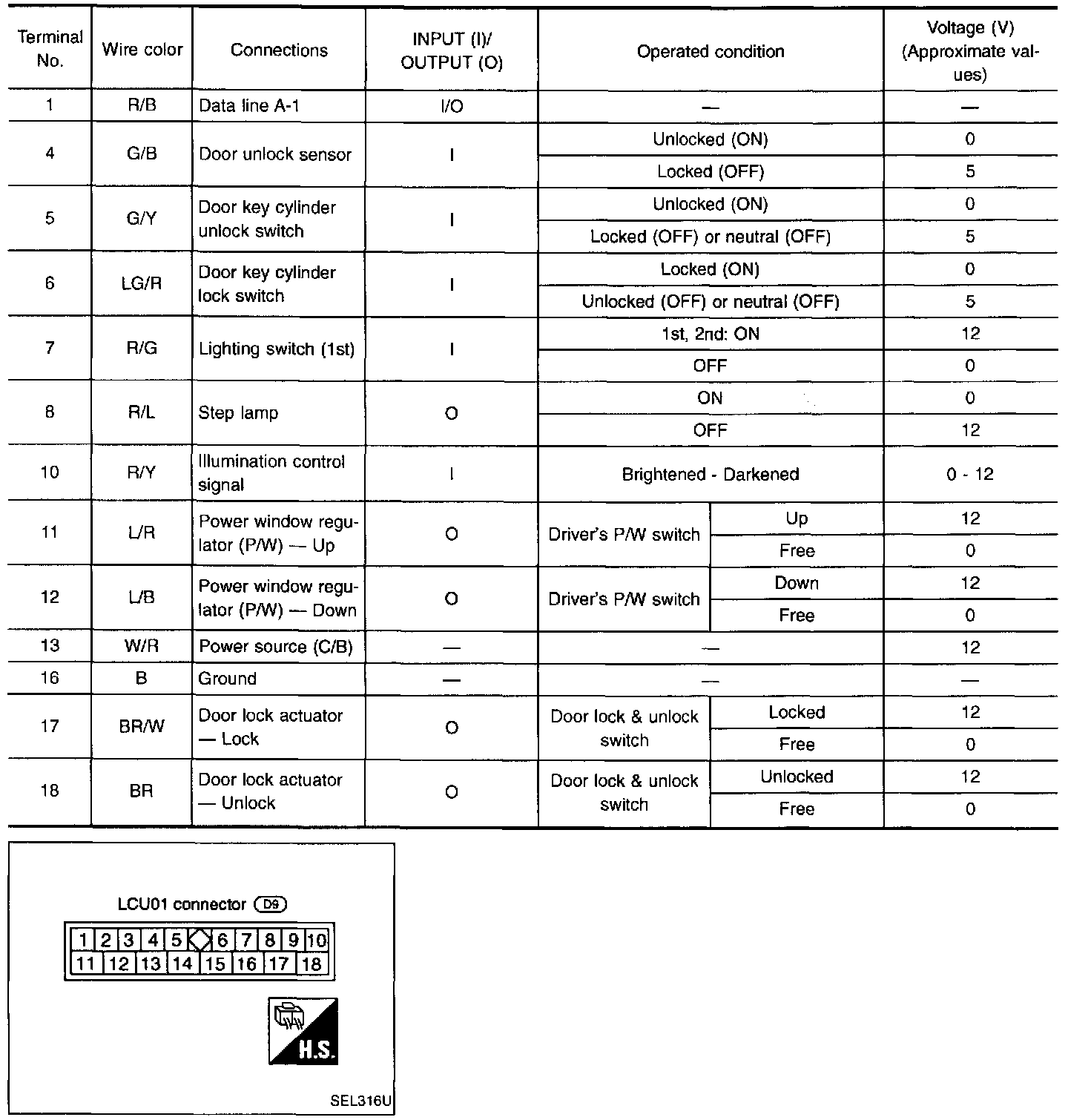

Driver Door Control Unit (LCU01) - Input/Output Operation Signal

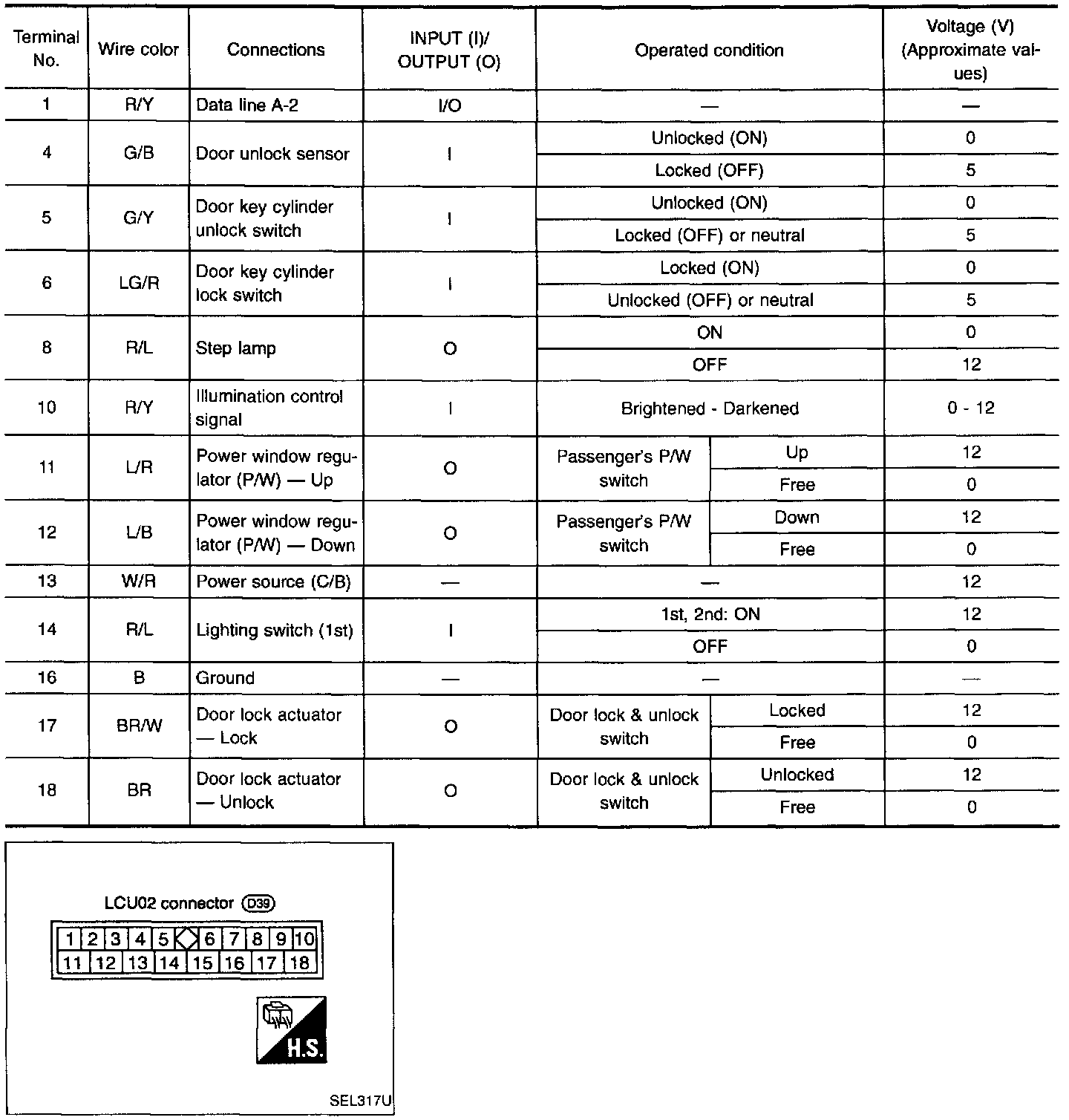

Passenger Door Control Unit (LCU02) - Input/Output Operation Signal

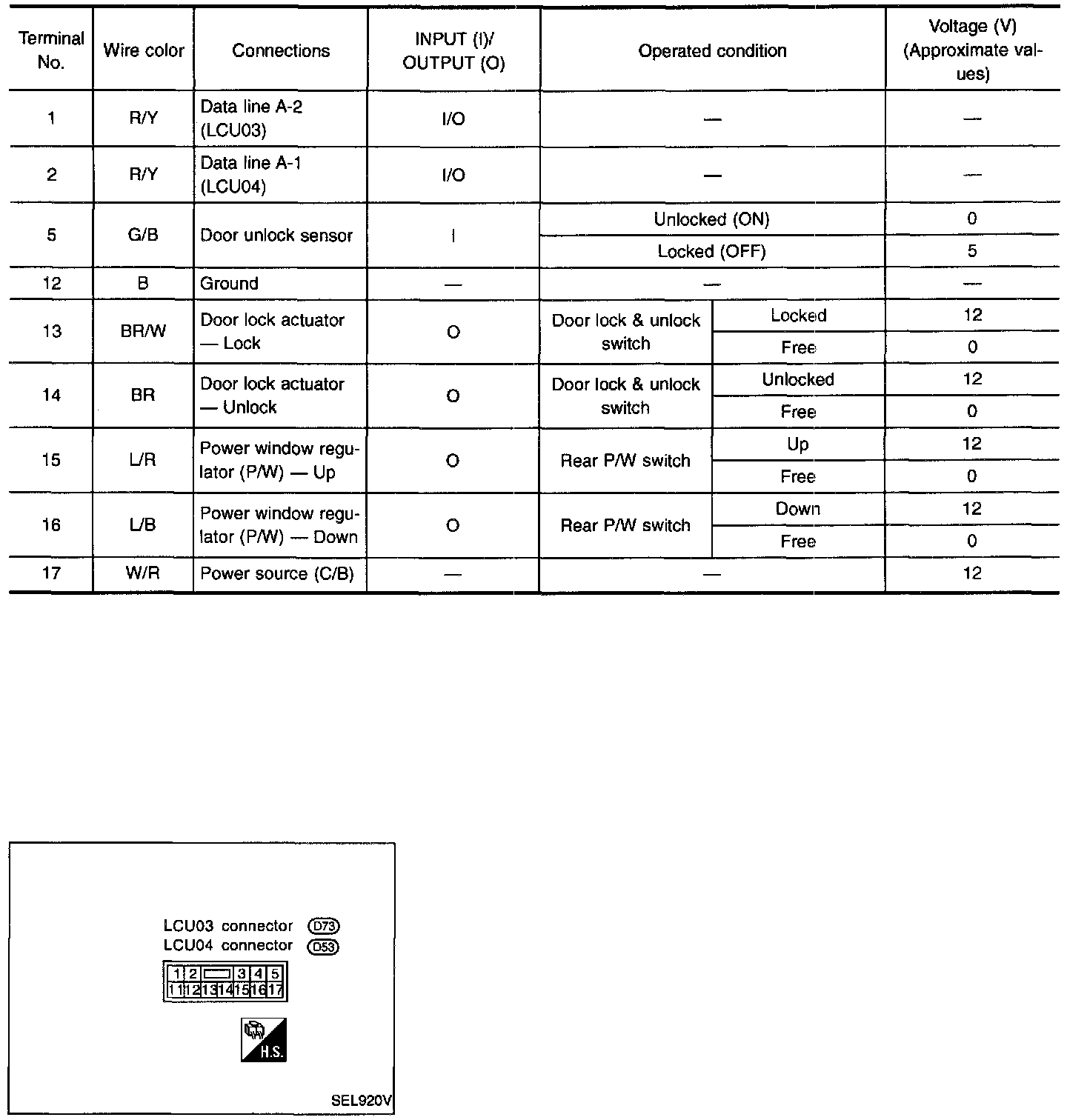

Rear LH/RH Door Control Unit (LCU03/04) - Input/Output Operation Signal

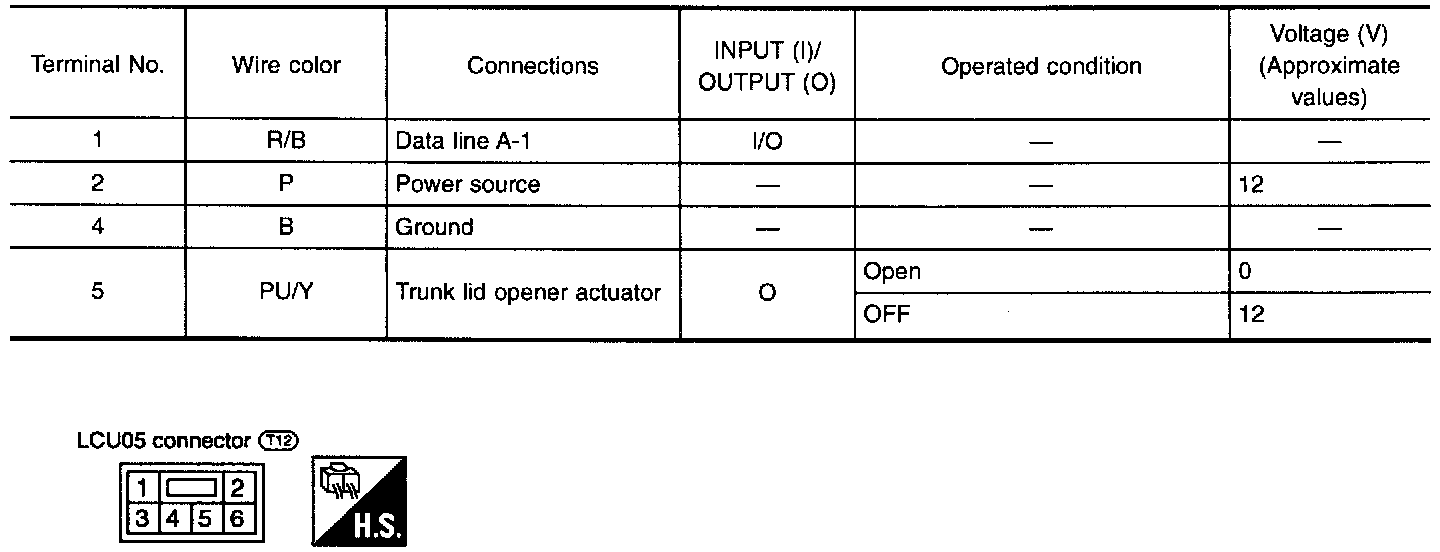

Multi-Remote Control Unit (LCU05) - Input/Output Operation Signal
