Radio/Stereo: Testing and Inspection

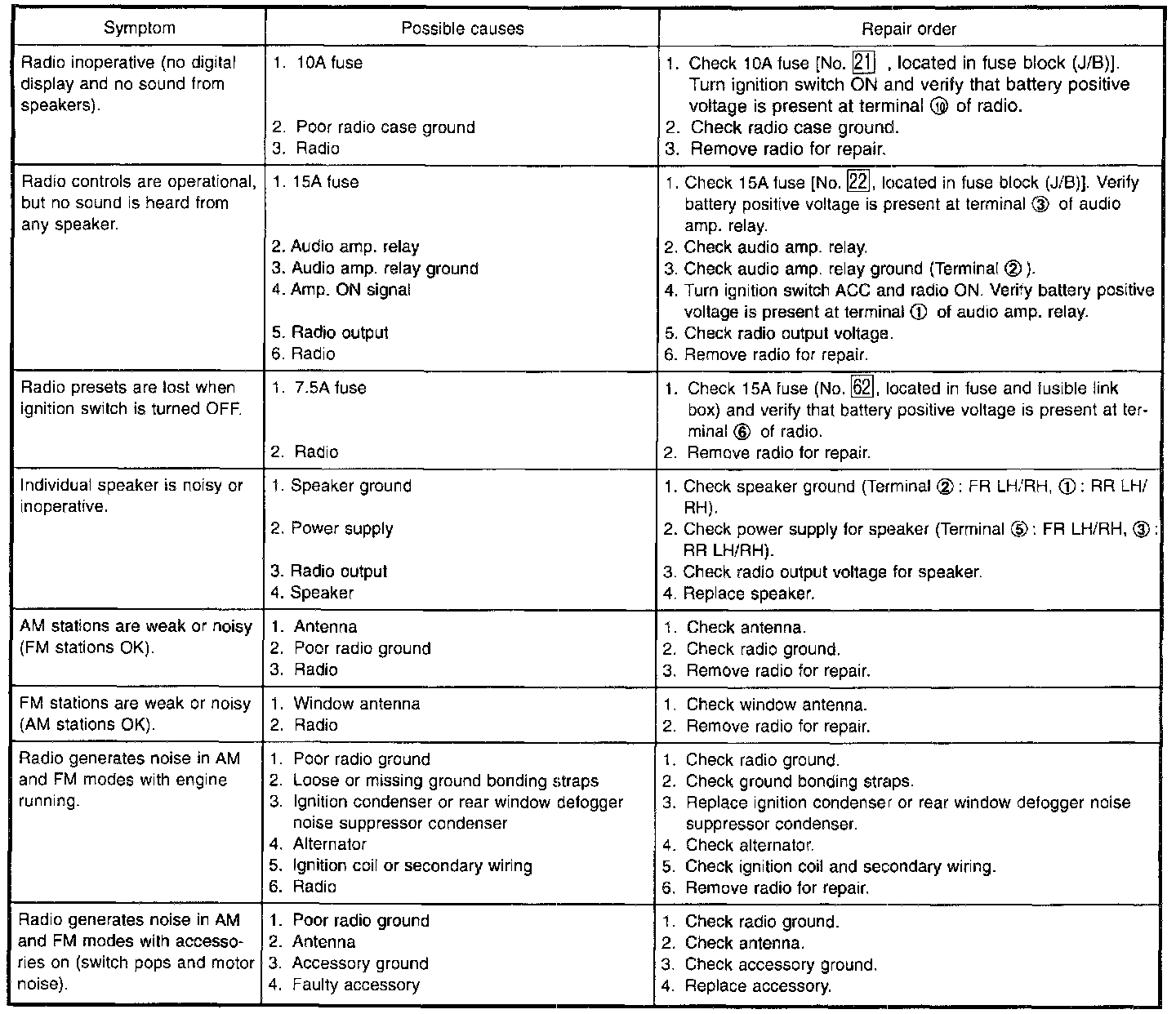

Trouble Diagnosis

RADIO INSPECTION

All voltage inspections are made with:
^ Ignition switch ON or ACC
^ Radio ON
^ Radio and speakers connected (If radio or speaker is removed for inspection, supply a ground to the case using a jumper wire.)
