Theft Warning System - IVMS

CONSULT

Consult Inspection Procedure




1. Turn ignition switch "OFF".

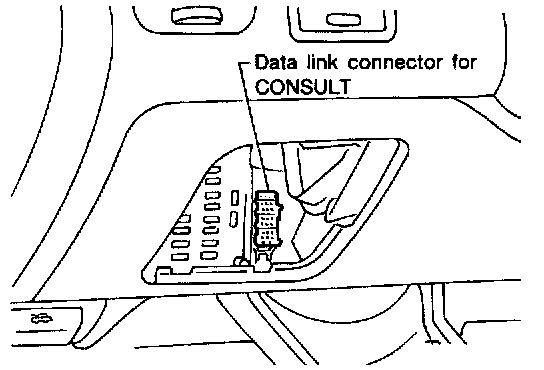

2. Connect "CONSULT" to the data link connector.




3. Turn ignition switch "ON".

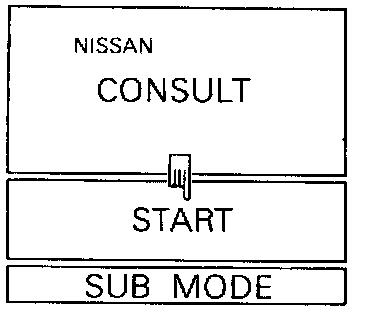

4. Touch "START".

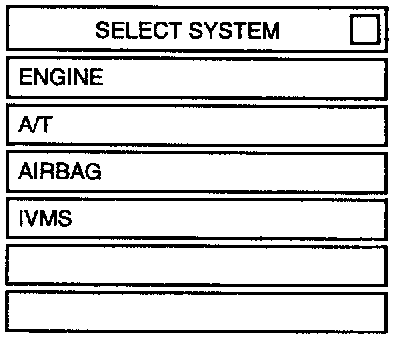

5. Touch "IVMS".




6. Touch "THEFT WARNING SYSTEM".

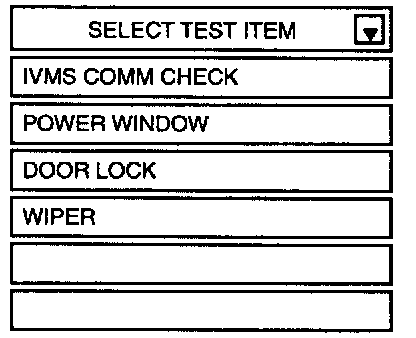

^ DATA MONITOR and ACTIVE TEST are available for the theft warning system.

Trouble Diagnosis

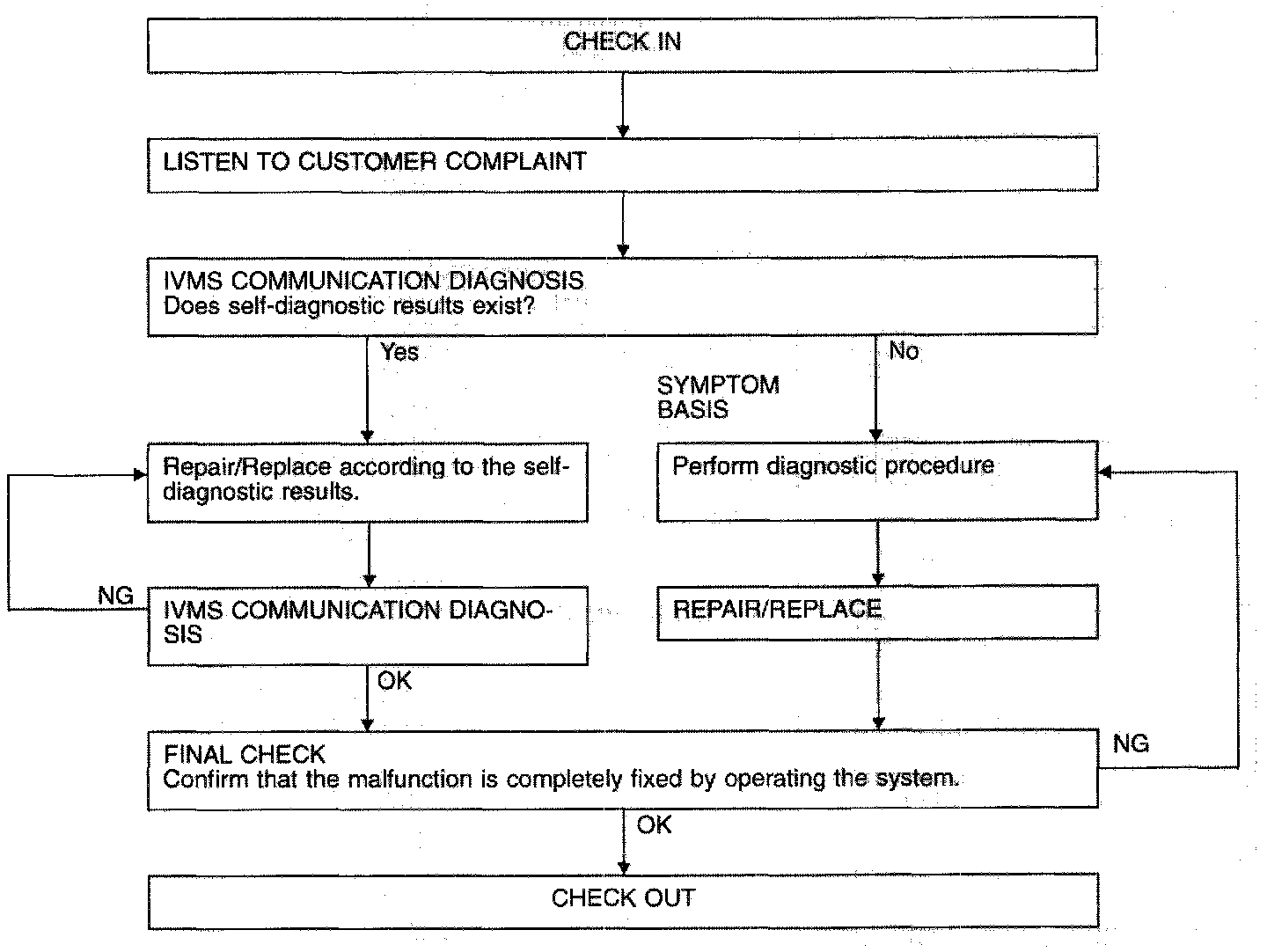

Work Flow


NOTE:
^ When Local Control Unit (LCU) connectors are disconnected for more than 1 minute such as during trouble diagnoses, the "disconnected" data will be memorized by the Body Control Module (BCM). Therefore, after reconnecting the LCU connectors, erase the memory.
^ To erase the memory, perform the procedure below.
Erase the memory with CONSULT or turn the ignition switch to "OFF" position and remove 7.5 A fuse (No. (56) located in the fuse and fusible link box).




Preliminary Check

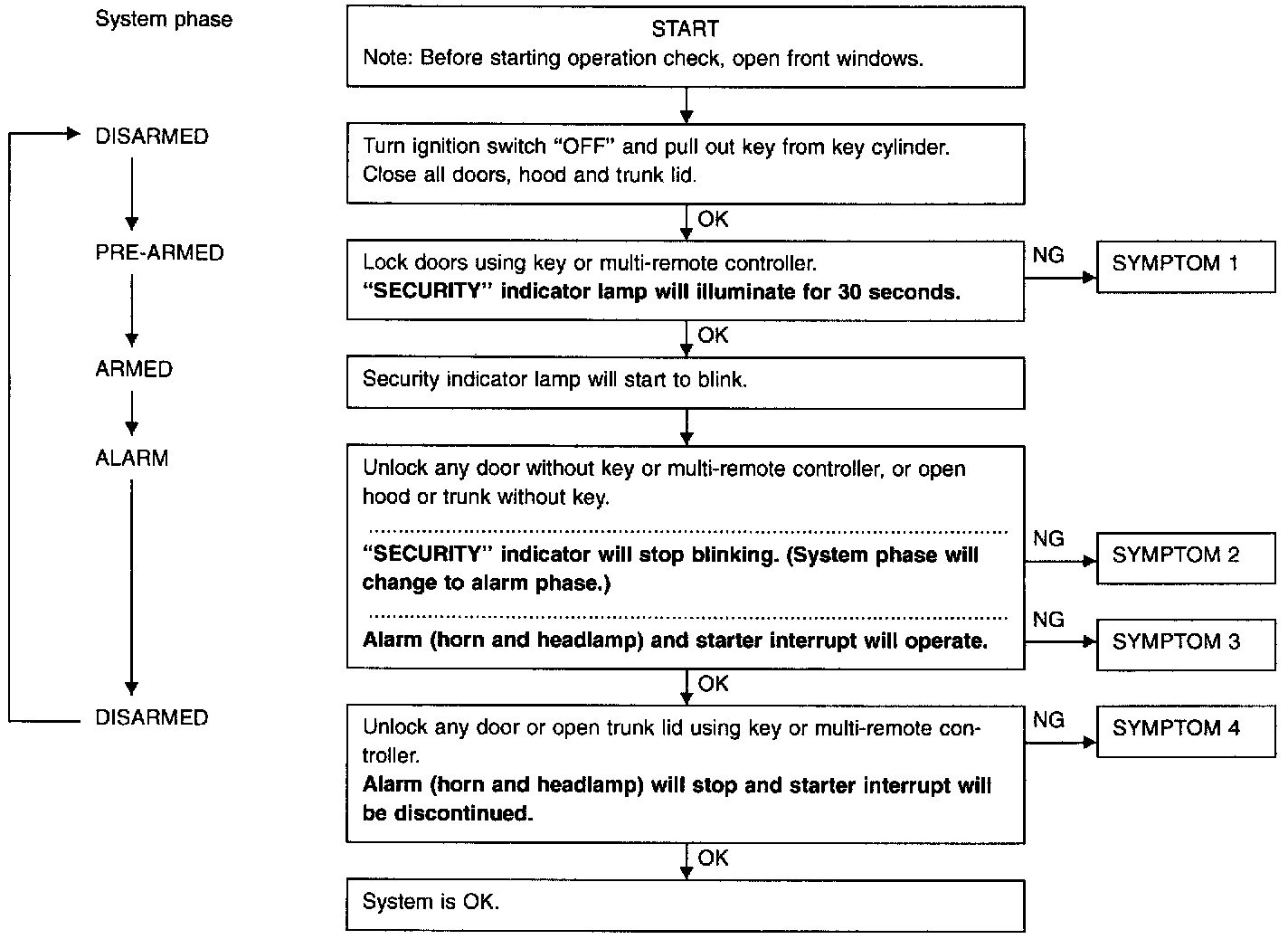

The system operation is canceled by turning ignition switch to "ACC" at any step between START and ARMED in the following above flow diagram.
After performing preliminary check, go to symptom chart.

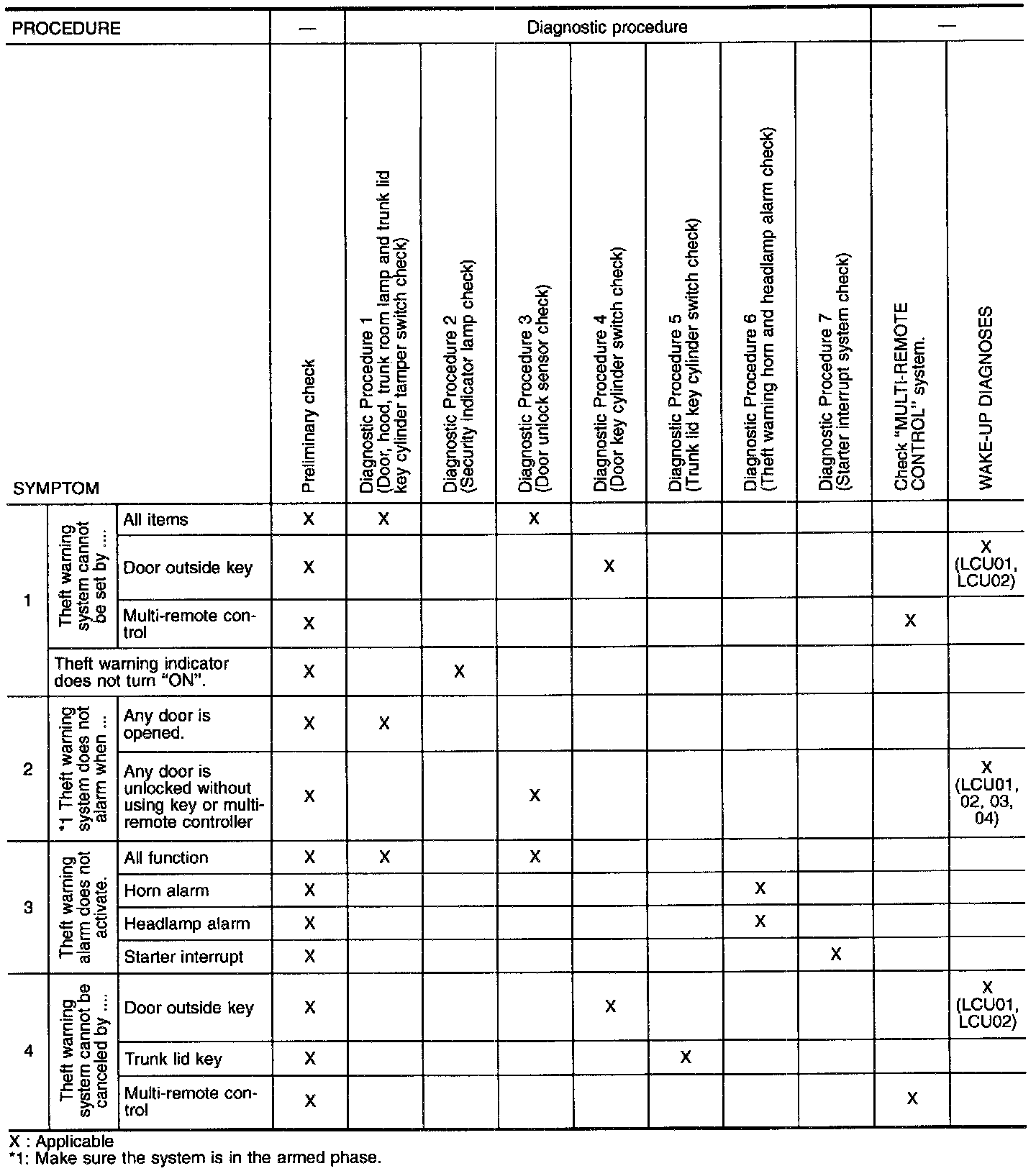

Symptom Chart
Before starting trouble diagnoses above, perform preliminary check. Symptom numbers in the symptom chart correspond with those of preliminary check.

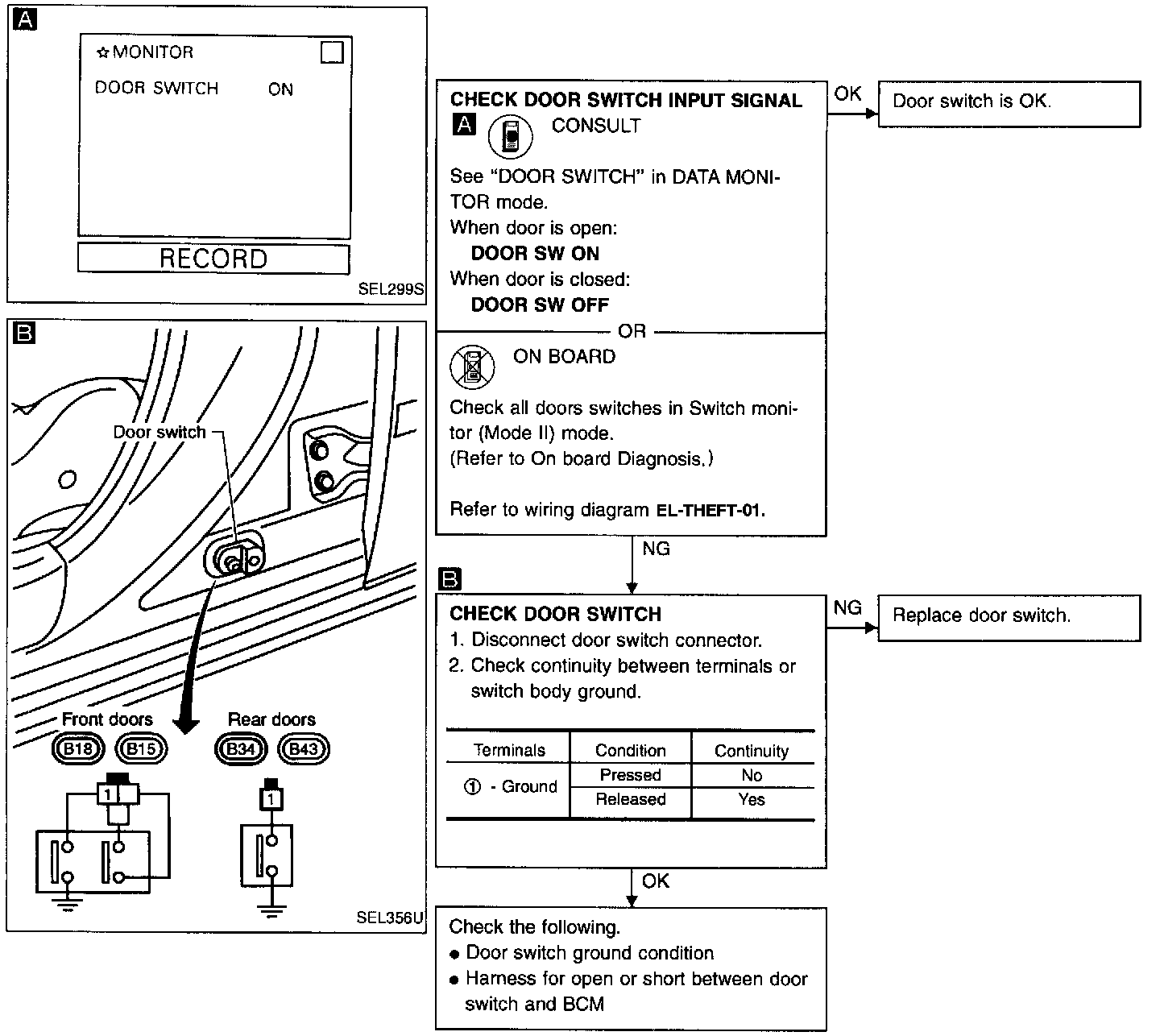

Diagnostic Procedure 1-(1) (Door switch check)

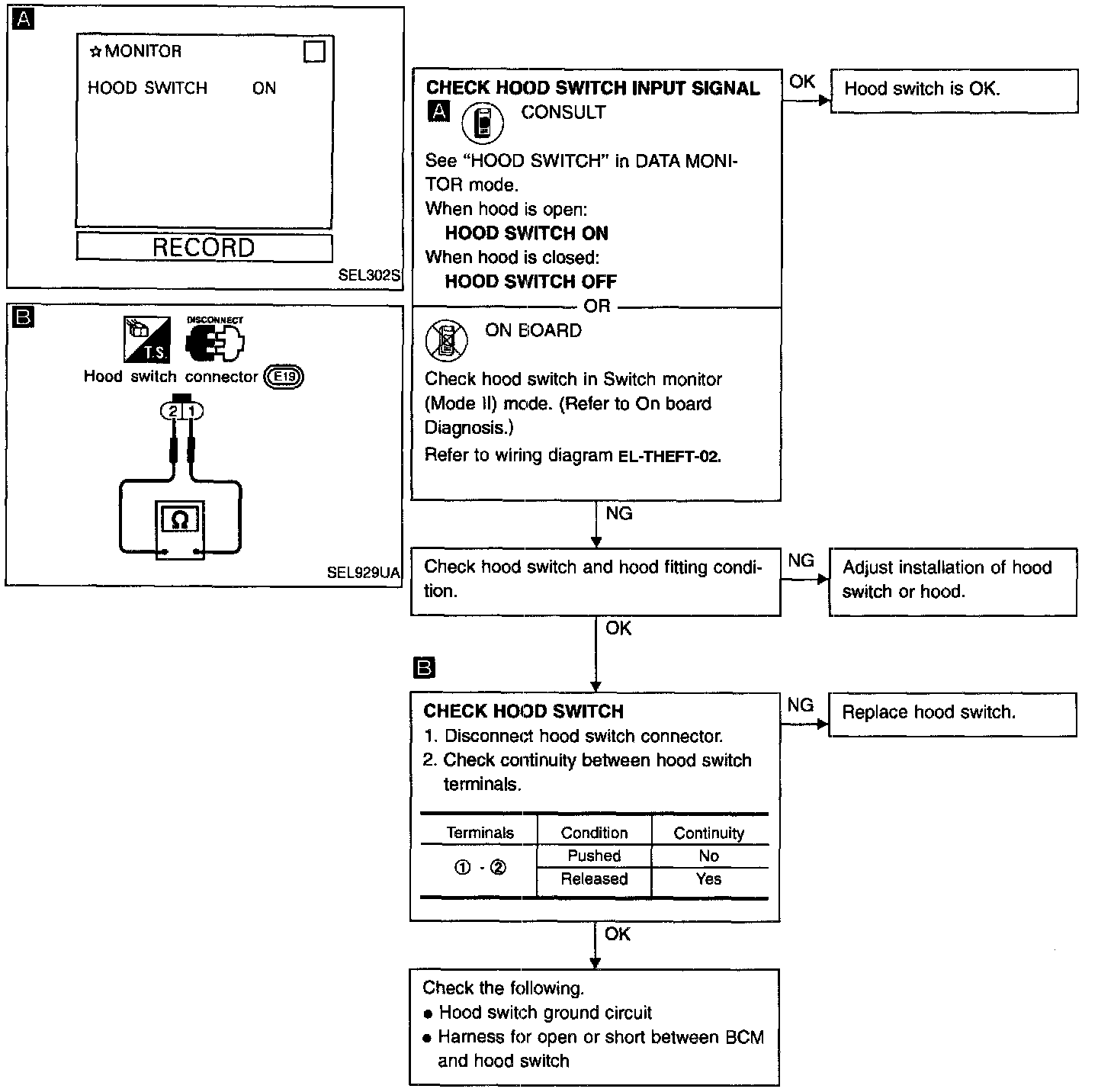

Diagnostic Procedure 1-(2) (Hood Switch Check)

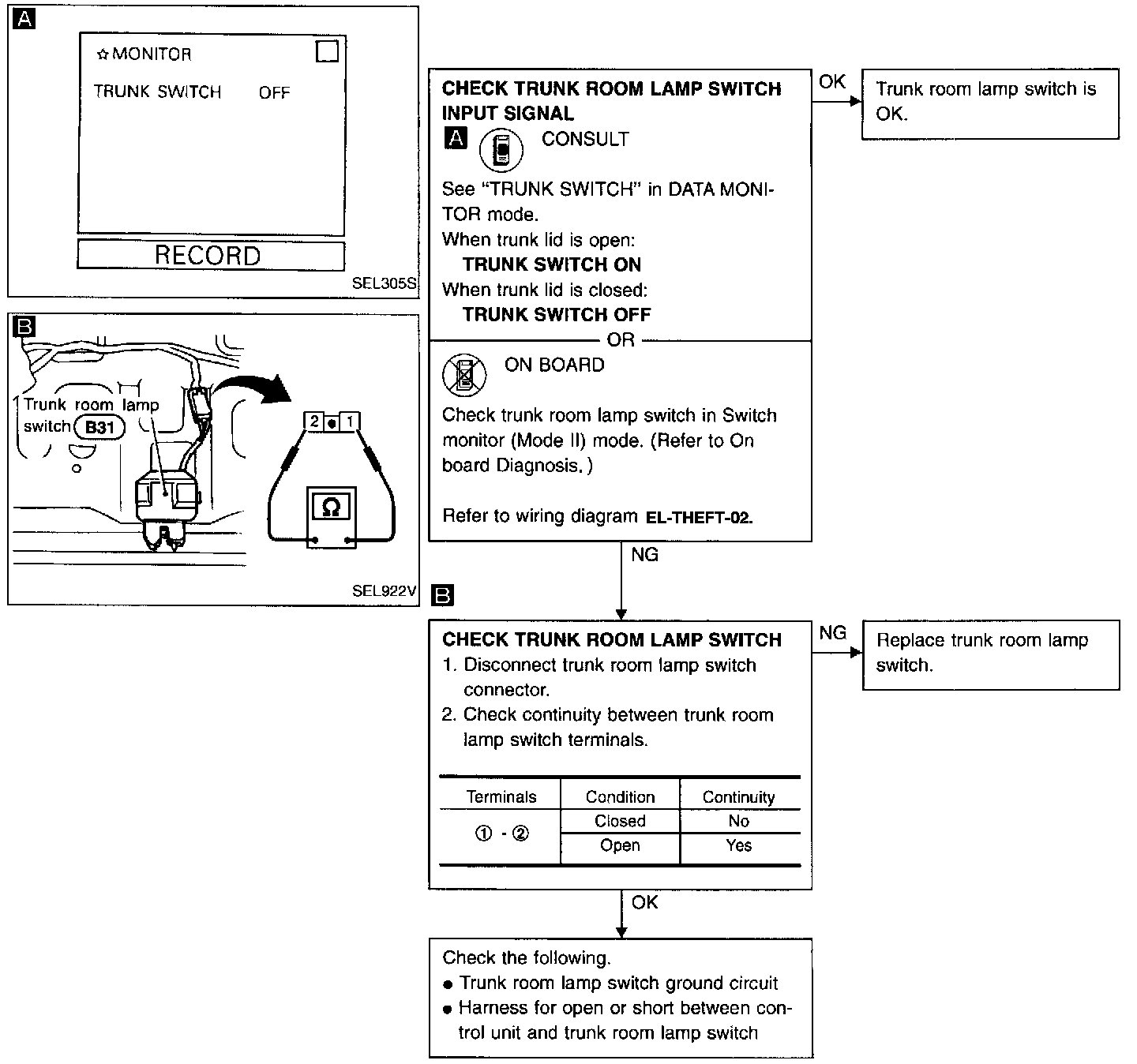

Diagnostic Procedure 1-(3) (Trunk Room Lamp Switch Check)

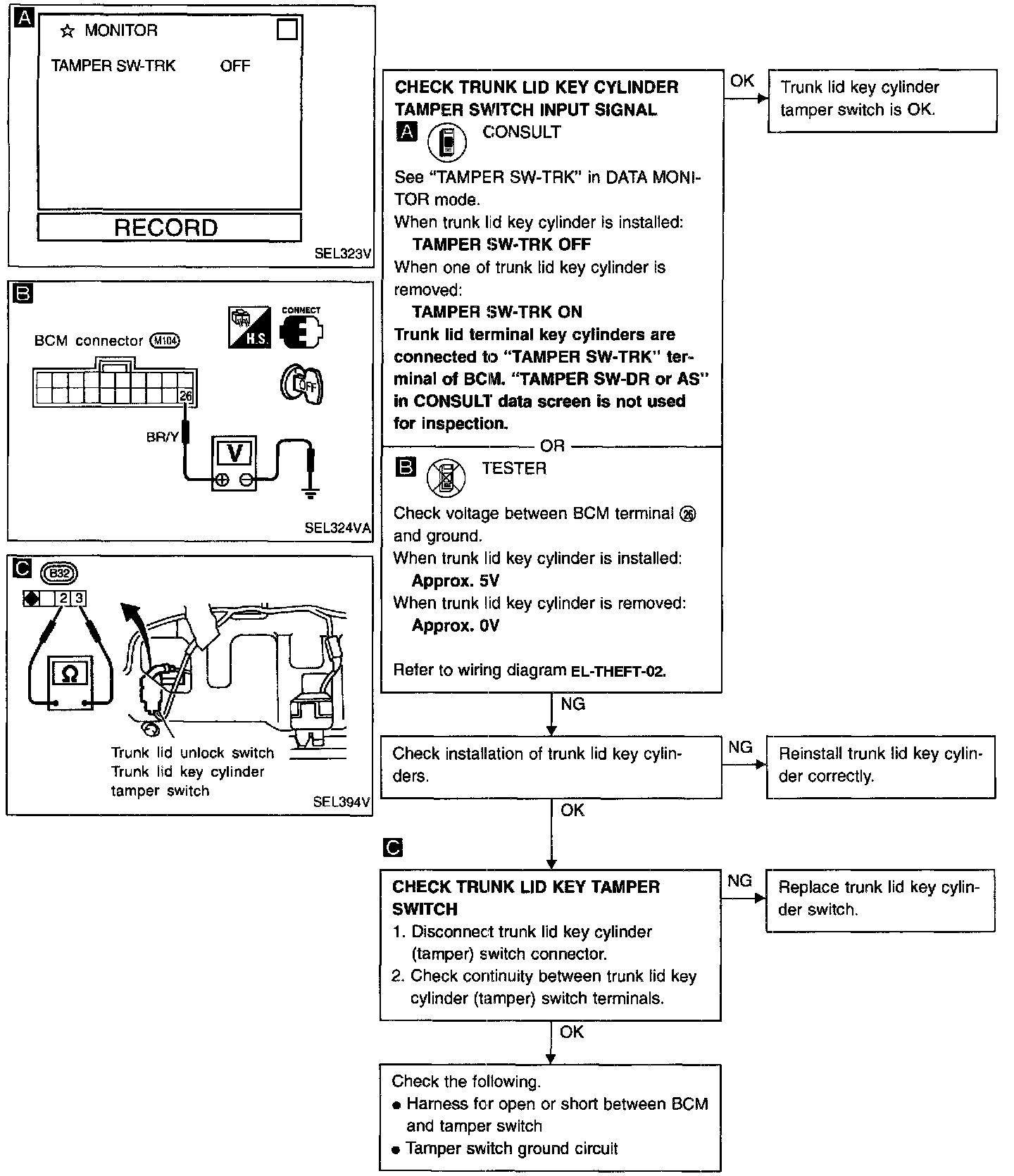

Diagnostic Procedure 1-(4) (Trunk Key Cylinder Tamper Switch Check)

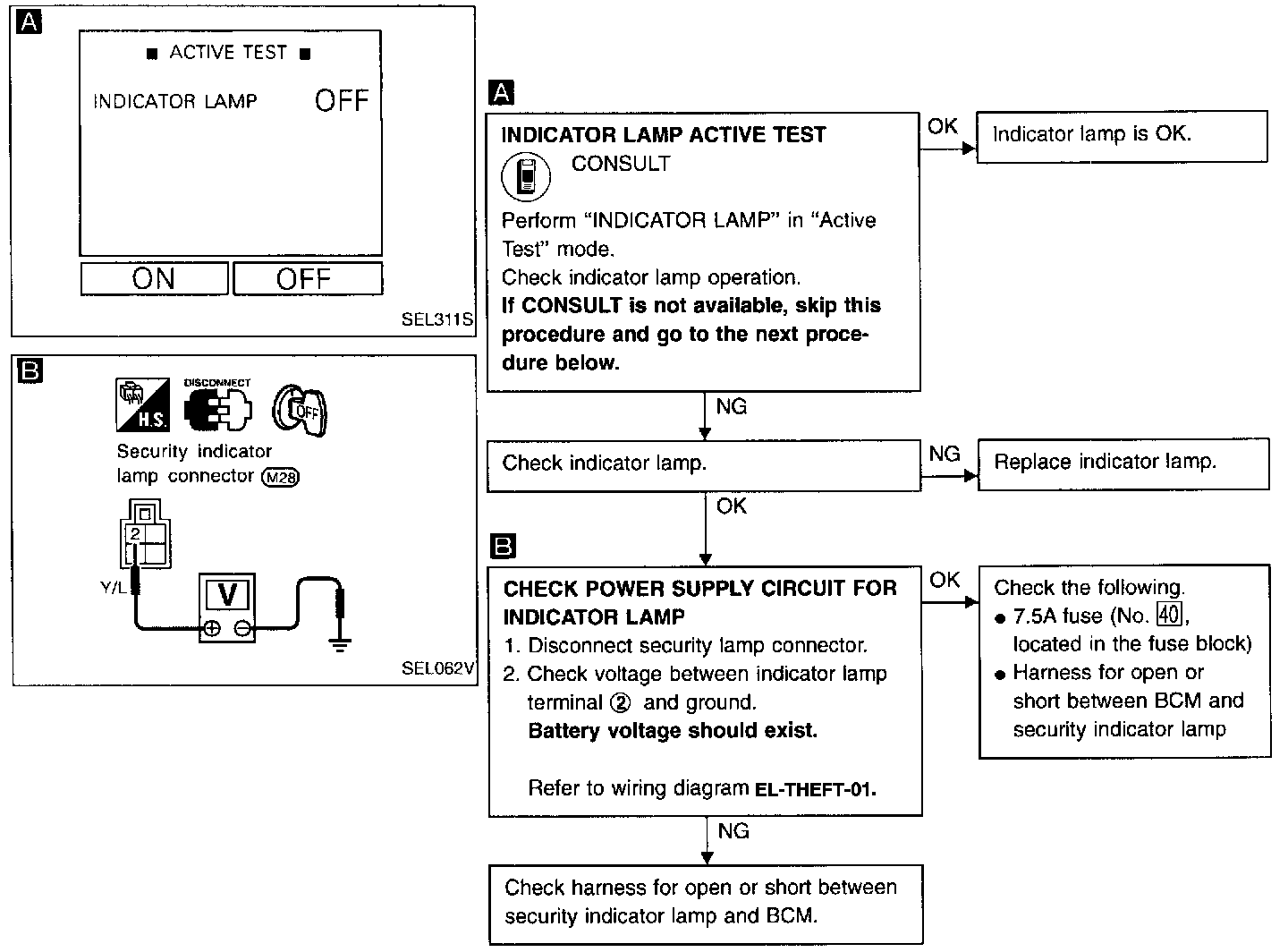

Diagnostic Procedure 2 (Security Indicator Lamp Check)

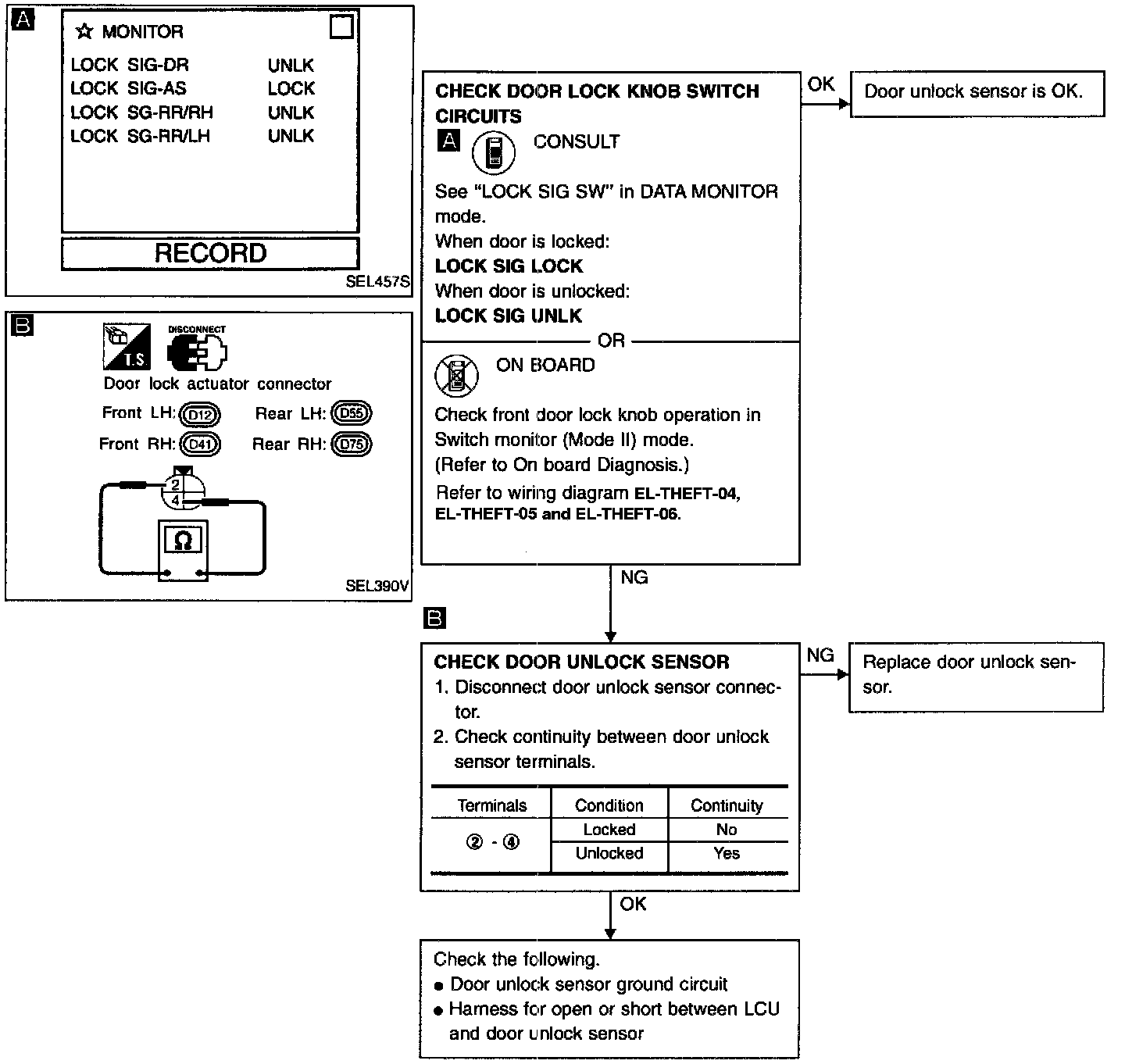

Diagnostic Procedure 3 (Door Unlock Sensor Check)

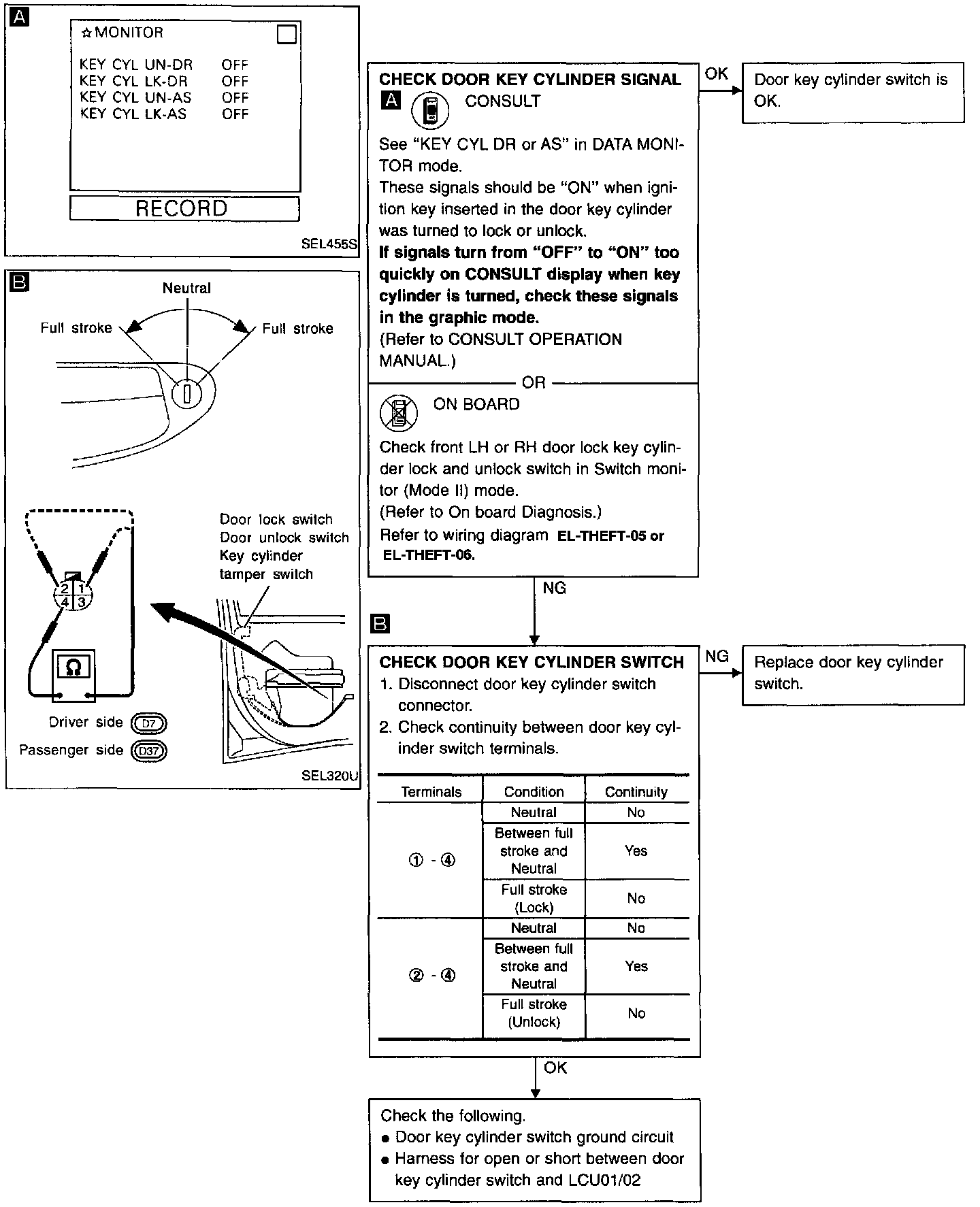

Diagnostic Procedure 4 (Door Key Cylinder Switch Check)

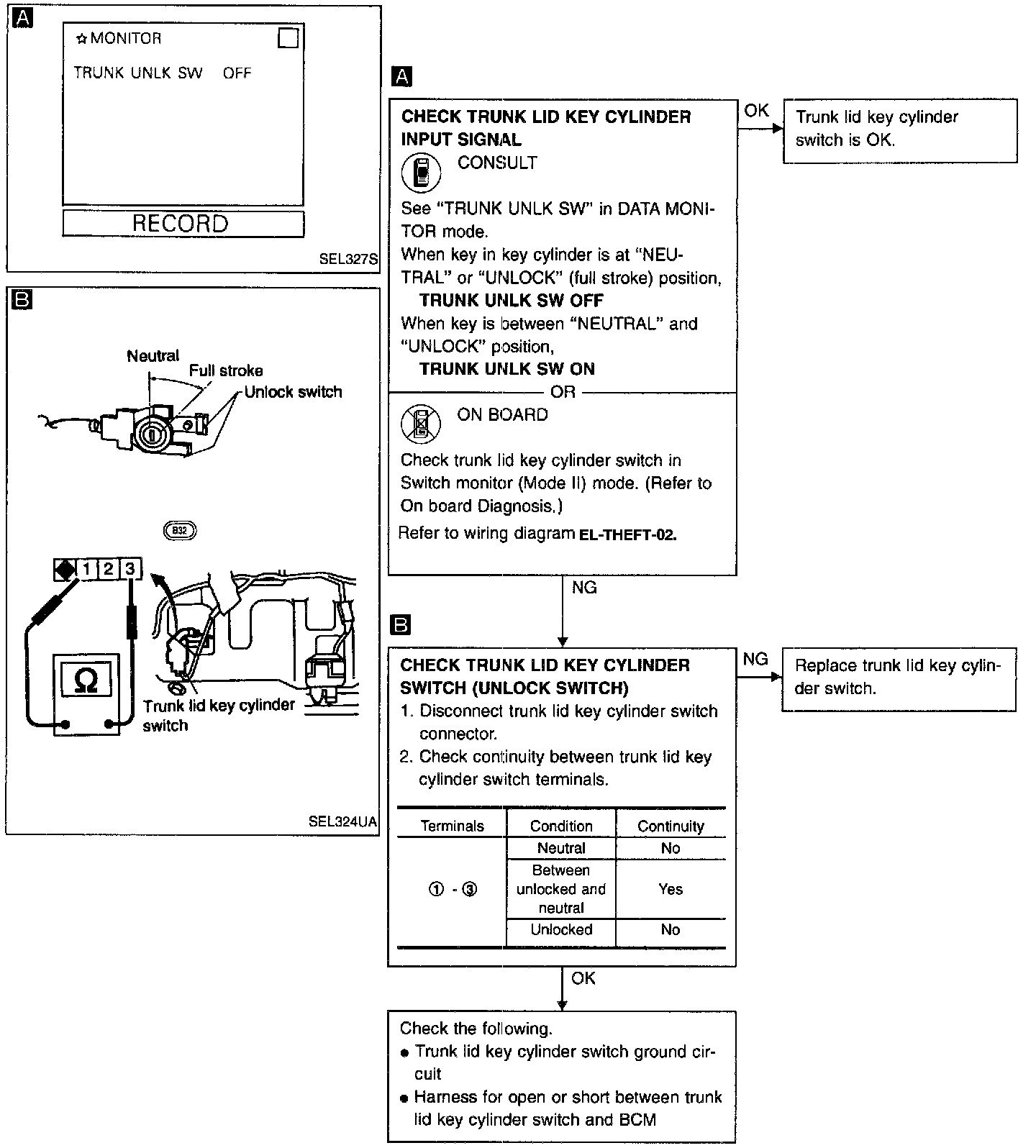

Diagnostic Procedure 5 (Trunk Lid Key Cylinder Switch Check)

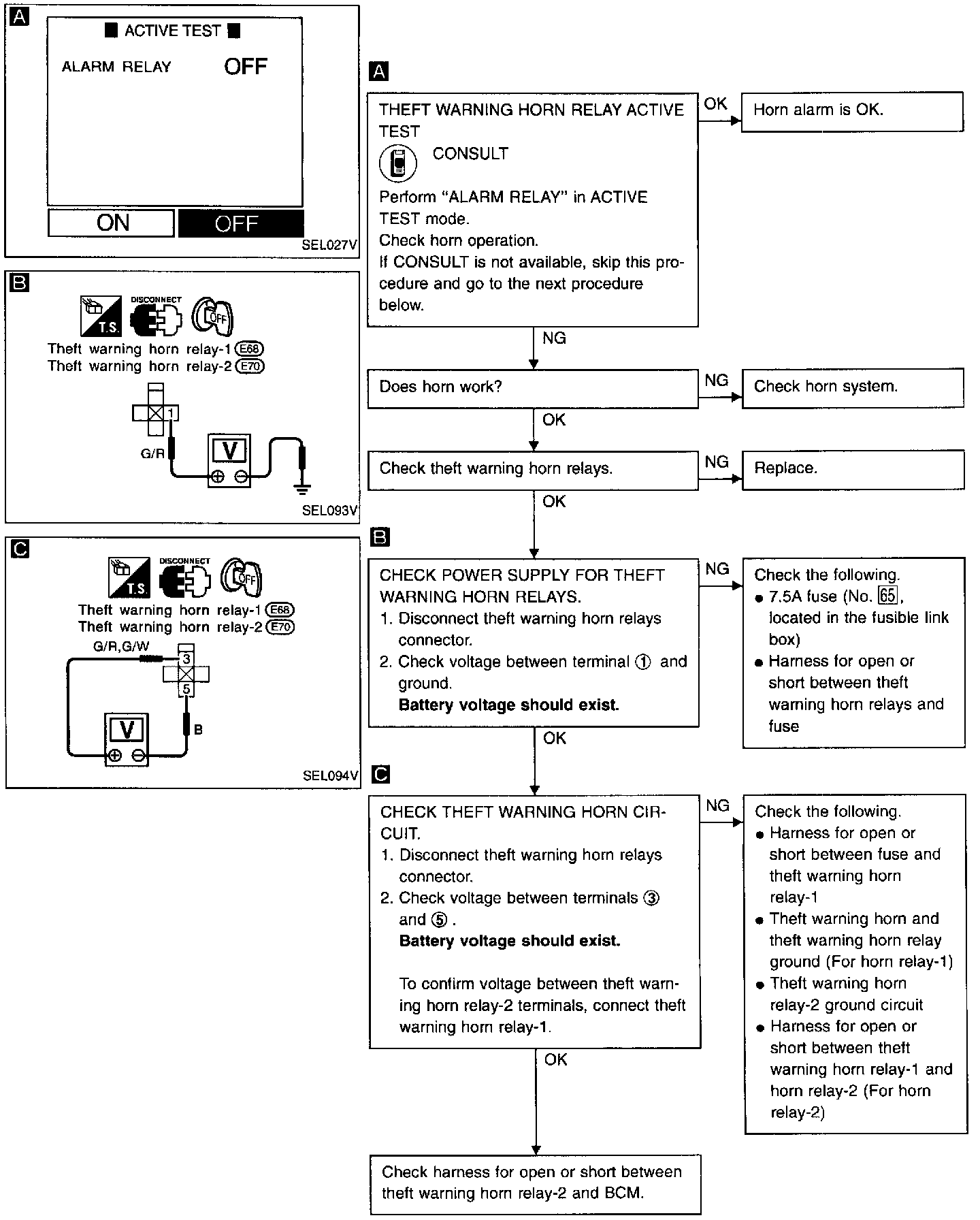

Diagnostic Procedure 6 (Theft Warning Horn Alarm Check)

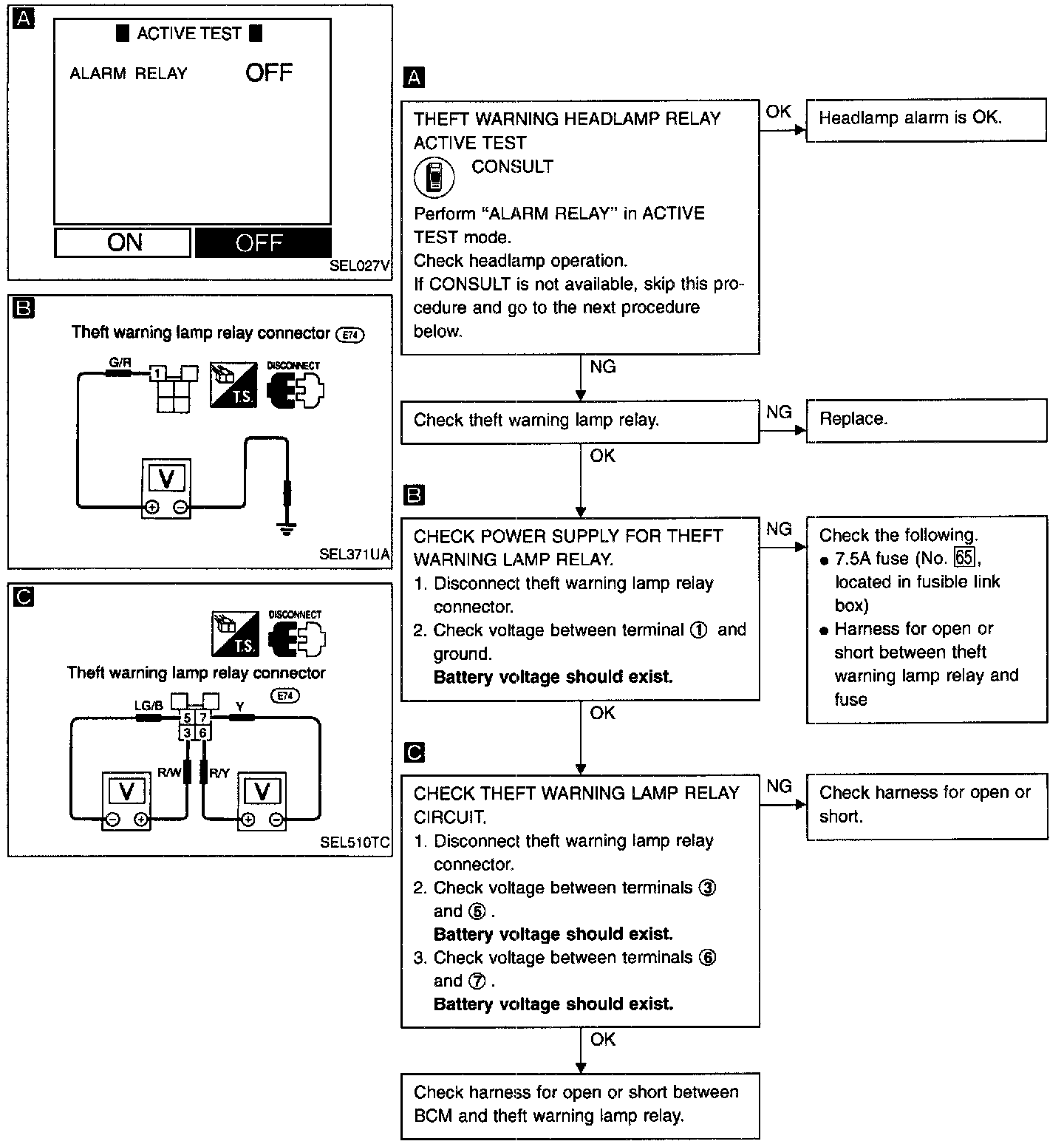

Diagnostic Procedure 7 (Head Alarm Check)
