P1760

DESCRIPTION
The overrun clutch solenoid valve is activated by the TCM in response to signals sent from the PNP switch, overdrive control switch, vehicle speed and throttle position sensors. The overrun clutch operation will then be controlled.

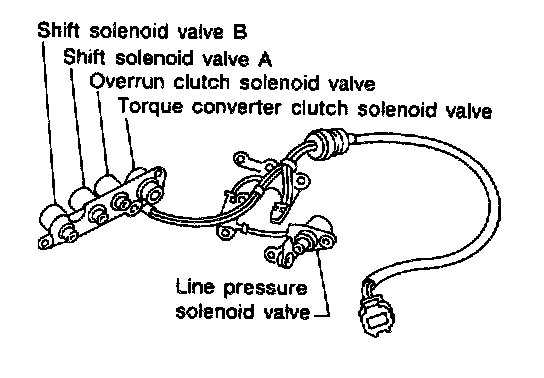

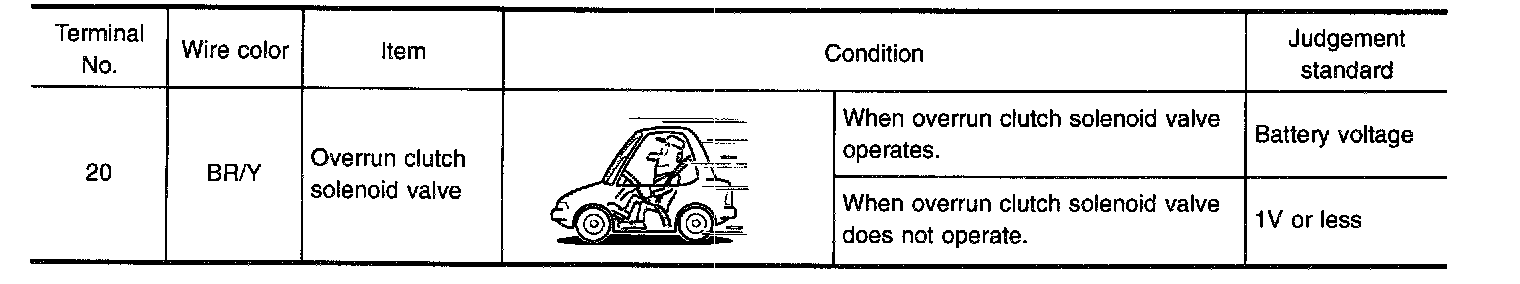

TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.

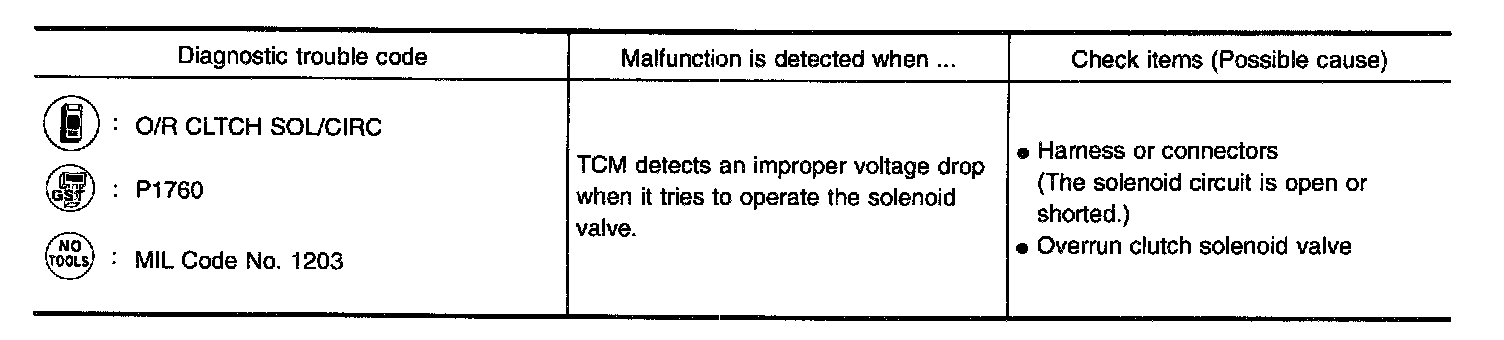

ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

TESTING CONDITION: Always the repair, perform the following procedure to confirm the malfunction is eliminated.







With Consult

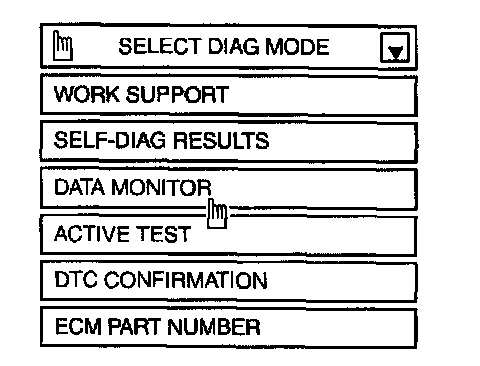

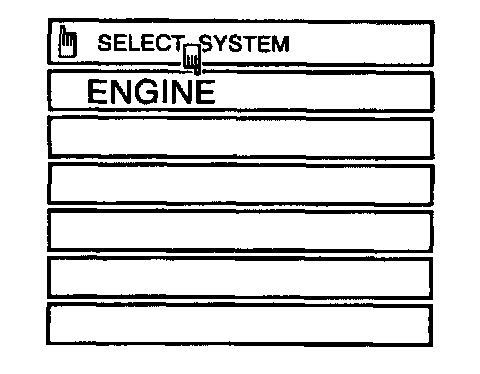

1. Turn ignition switch "ON" and select "DATA MONITOR" mode for "ENGINE" with CONSULT.
2. Start engine.
3. Accelerate vehicle to a speed of more than 10 KPH (6 MPH) in "D" position (OD "ON").
4. Release accelerator pedal completely in "D" position (OD "ON" or "OFF").

OR

With Generic Scan Tool
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever in "D", overdrive control switch in "ON" or "OFF" position and vehicle speed higher than 10 KPH (6 MPH).
3. Select "MODE 7" with GST.

OR

Without Scan Tools
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever in "D", overdrive control switch in "ON" or "OFF" position and vehicle speed higher than 10 KPH (6 MPH).
3. Perform self-diagnosis for ECM.
Refer to ["Malfunction Indicator Lamp (MIL)", "ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION"].

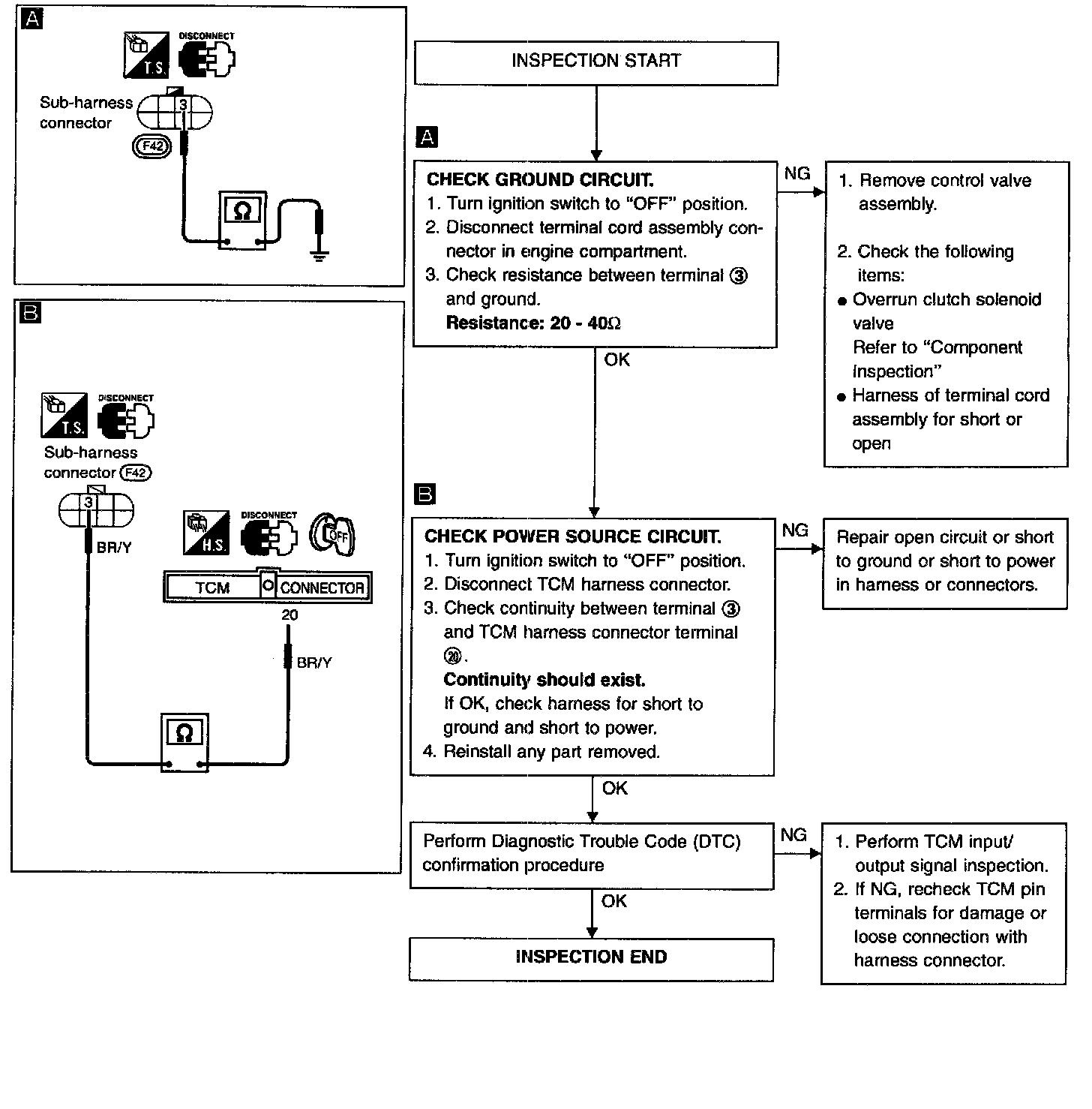

DIAGNOSTIC PROCEDURE




COMPONENT INSPECTION

Overrun clutch solenoid valve

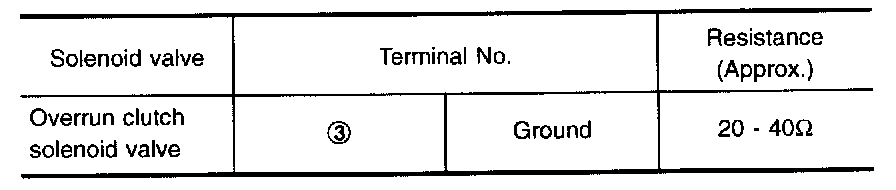

Resistance check

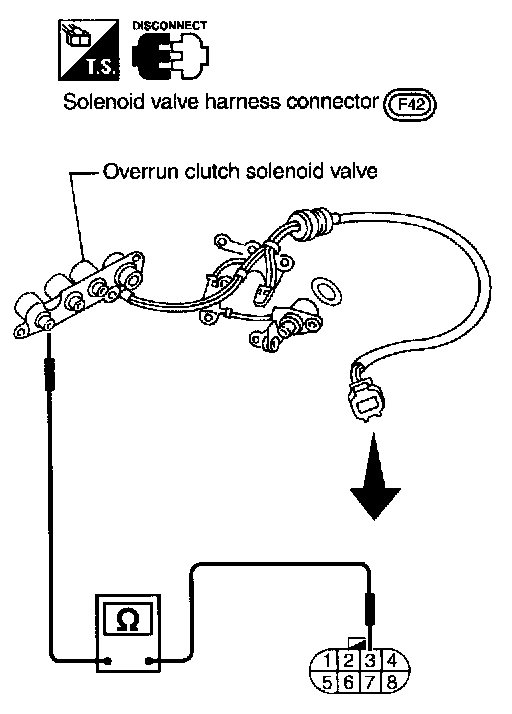

- Check resistance between terminal (3) and ground.




Operation check

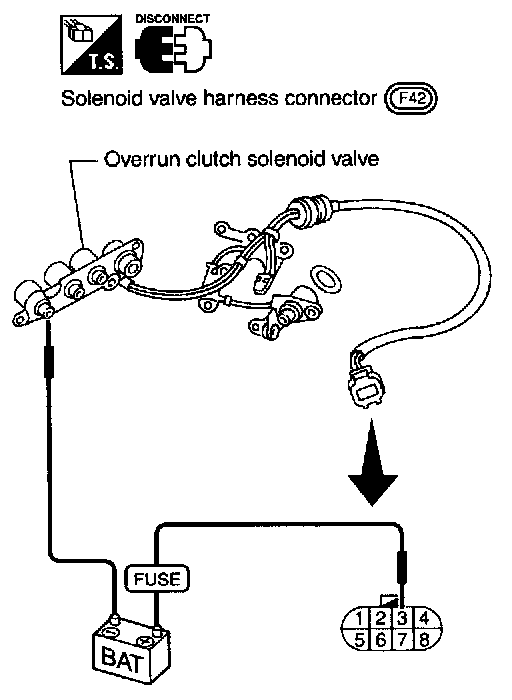

- Check solenoid valve by listening for its operating sound while applying battery voltage to the terminal (3) and ground.
