P0755

DESCRIPTION

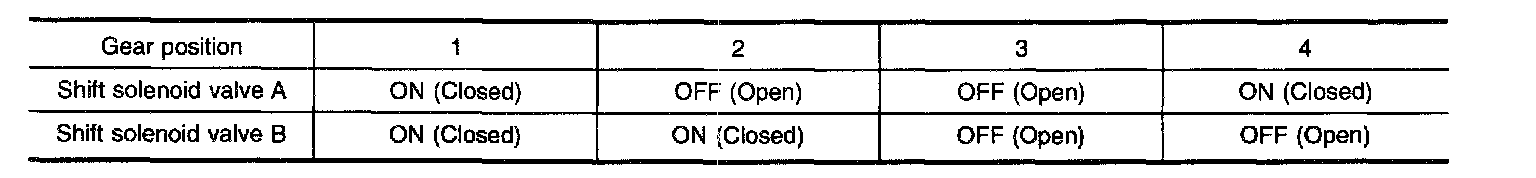

Shift solenoid valves A and B are turned "ON" or "OFF" by the TCM in response to signals sent from the PNP switch, vehicle speed and throttle position sensors. Gears will then be shifted to the optimum position.

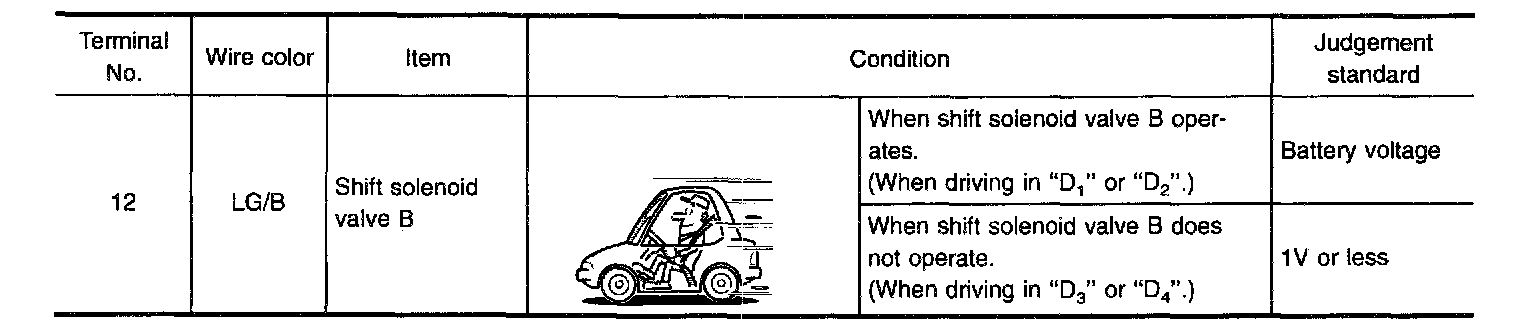

TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.

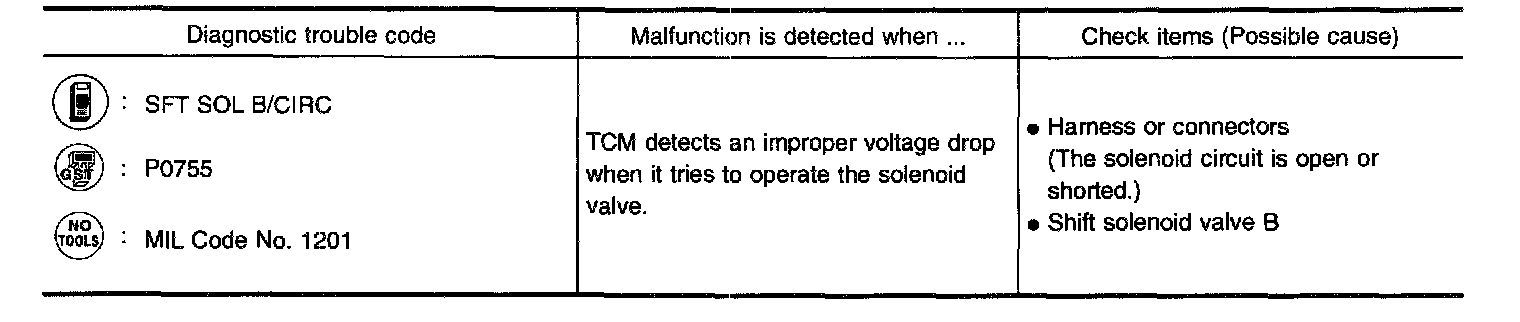

ON BOARD DIAGNOSIS LOGIC







DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

With Consult

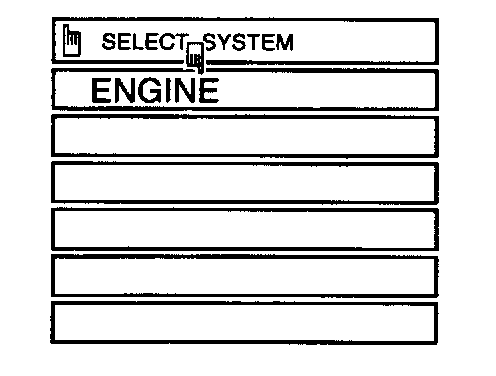

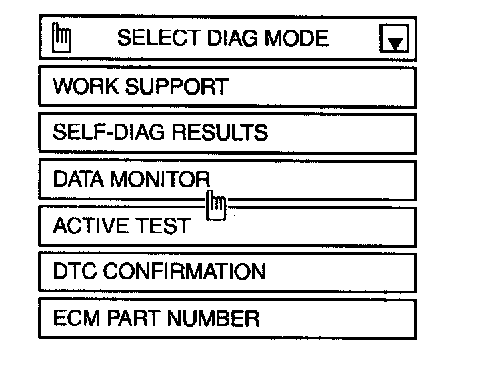

1. Turn ignition switch "ON" and select "DATA MONITOR" mode for "ENGINE" .
2. Start engine.
3. Drive vehicle in D position and allow the transmission to shift 1 -> 2 -> 3 ("GEAR").

OR

With Generic Scan Tool
1. Start engine.
2. Drive vehicle in D(1) -> D(2) -> D(3) position.
3. Select "MODE 7" with GST.

OR

Without Scan Tools
1. Start engine.
2. Drive vehicle in D(1) -> D(2) -> D(3) position.
3. Perform self-diagnosis for ECM.
Refer to ["Malfunction Indicator Lamp (MIL)", "ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION"].

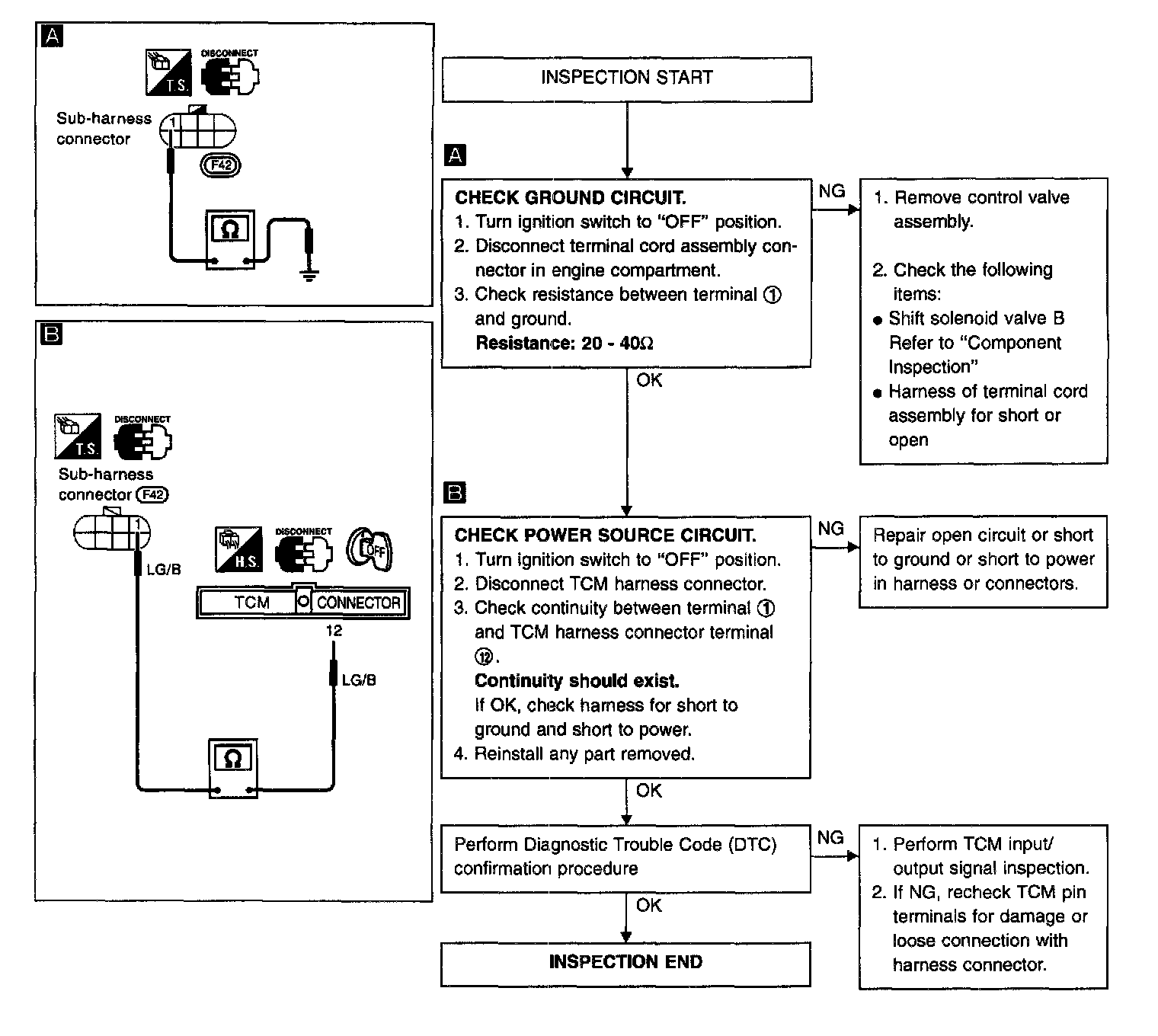

DIAGNOSTIC PROCEDURE




COMPONENT INSPECTION

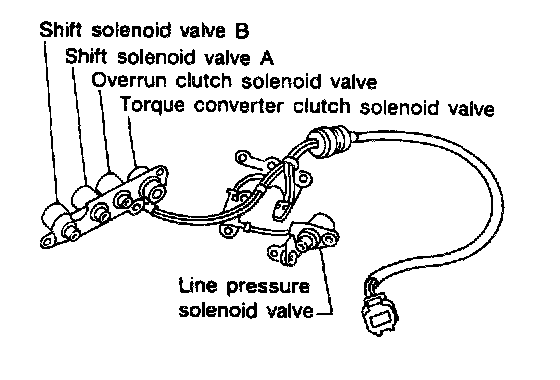

Shift solenoid valve B

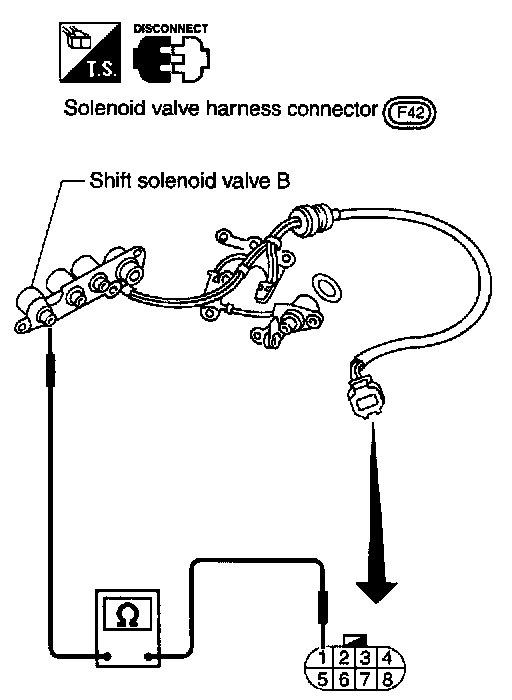

Resistance check




- Check resistance between terminal and ground.




Operation check
- Check solenoid valve by listening for its operating sound while applying battery voltage to the terminal (1) and ground.
