P-N POS SW/CIRC

COMPONENT DESCRIPTION
When the gear position is in "P" (A/T models only) or "N", park/neutral position (PNP) switch is "ON". ECM detects the position because the continuity of the line (the "ON" signal) exists.
For A/T models, the PNP switch assembly also includes a transmission range switch to detect selector lever position.

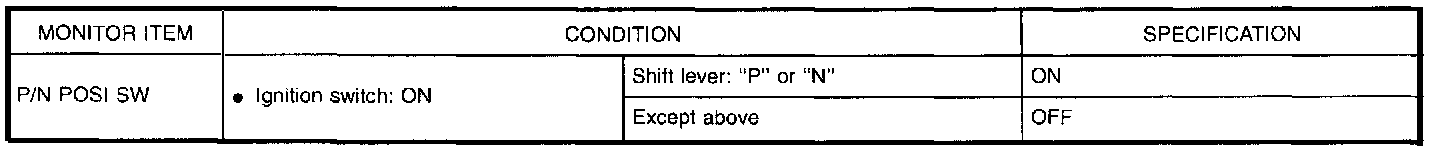

CONSULT REFERENCE VALUE IN DATA MONITOR MODE
Specification data are reference values.

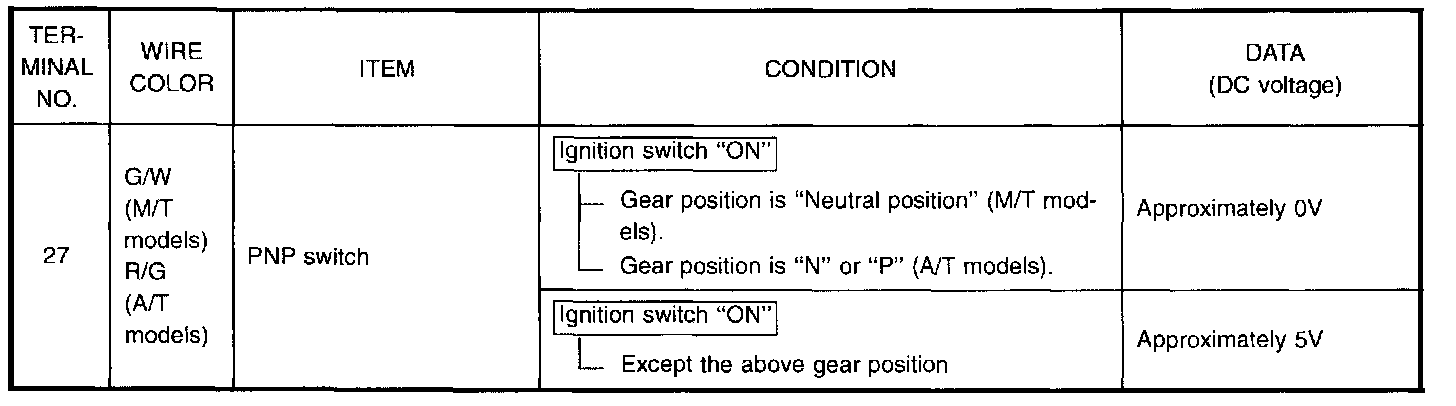

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values, and are measured between each terminal and (25) (ECM ground).

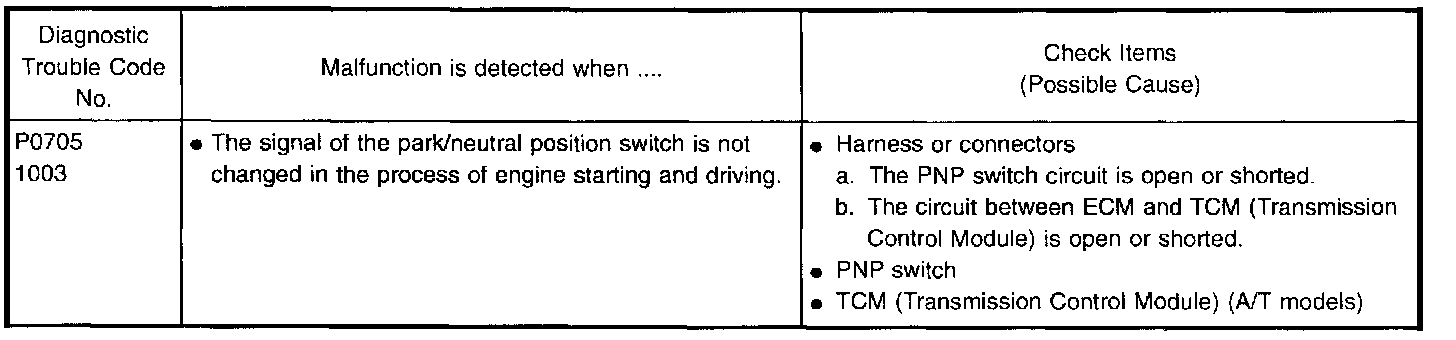

ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.

TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is more than 9 V at idle.







With Consult
1. Turn ignition switch "ON".

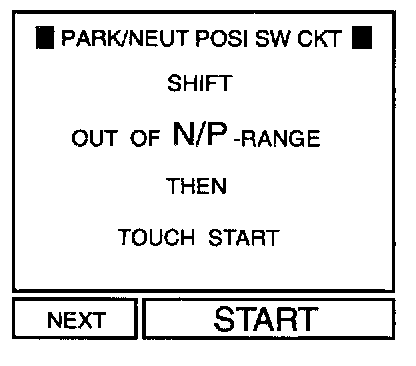

2. Perform "PARK/NEUT POSI SW CKT" in "FUNCTION TEST" mode with CONSULT.
If NG, go to "DIAGNOSTIC PROCEDURE".
If OK, go to following step.

OR

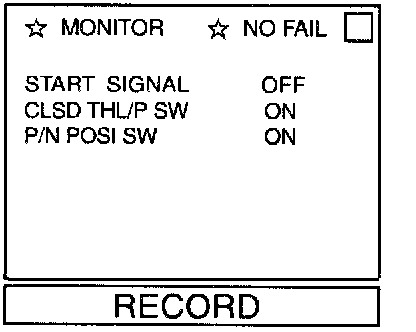

2. Select "P/N POSI SW" in "DATA MONITOR" mode with CONSULT.
Check the "P/N POSI SW" signal in the following conditions.
If NG, go to "DIAGNOSTIC PROCEDURE".
If OK, go to following step.
3. Select "DATA MONITOR" mode with CONSULT.
4. Start engine and warm it up to normal operating temperature.
5. Maintain the following conditions for at least 50 consecutive seconds.
CKPS.RPM (POS): 1,800 - 2,600 (M/T) 1,600 - 2,400 (A/T)
COOLAN TEMP/S: More than 70 °C (158 °F)
B/FUEL SCHDL: 1 - 5 msec
VHCL SPEED SE: 70 - 100 KPH (43 - 62 MPH)
Selector lever: Suitable position

OR




OVERALL FUNCTION CHECK
This procedure can be used for checking the overall function of the park/neutral position switch circuit. During this check, a DTC might not be confirmed.




Without Consult
1. Turn ignition switch "ON".

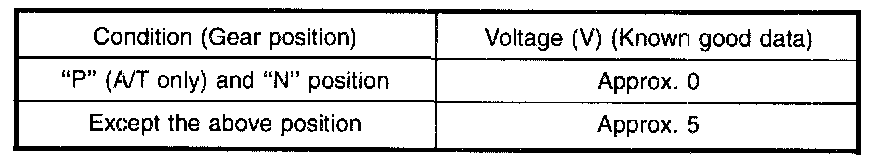

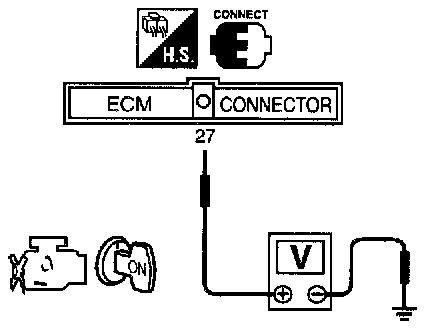

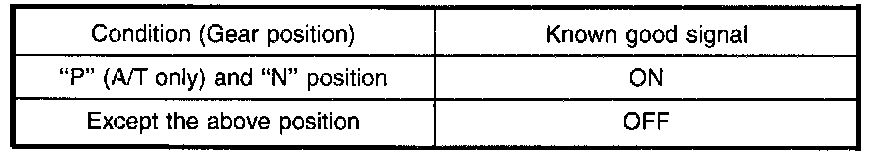

2. Check voltage between ECM terminal (27) and body ground in the following conditions.







WIRING DIAGRAM

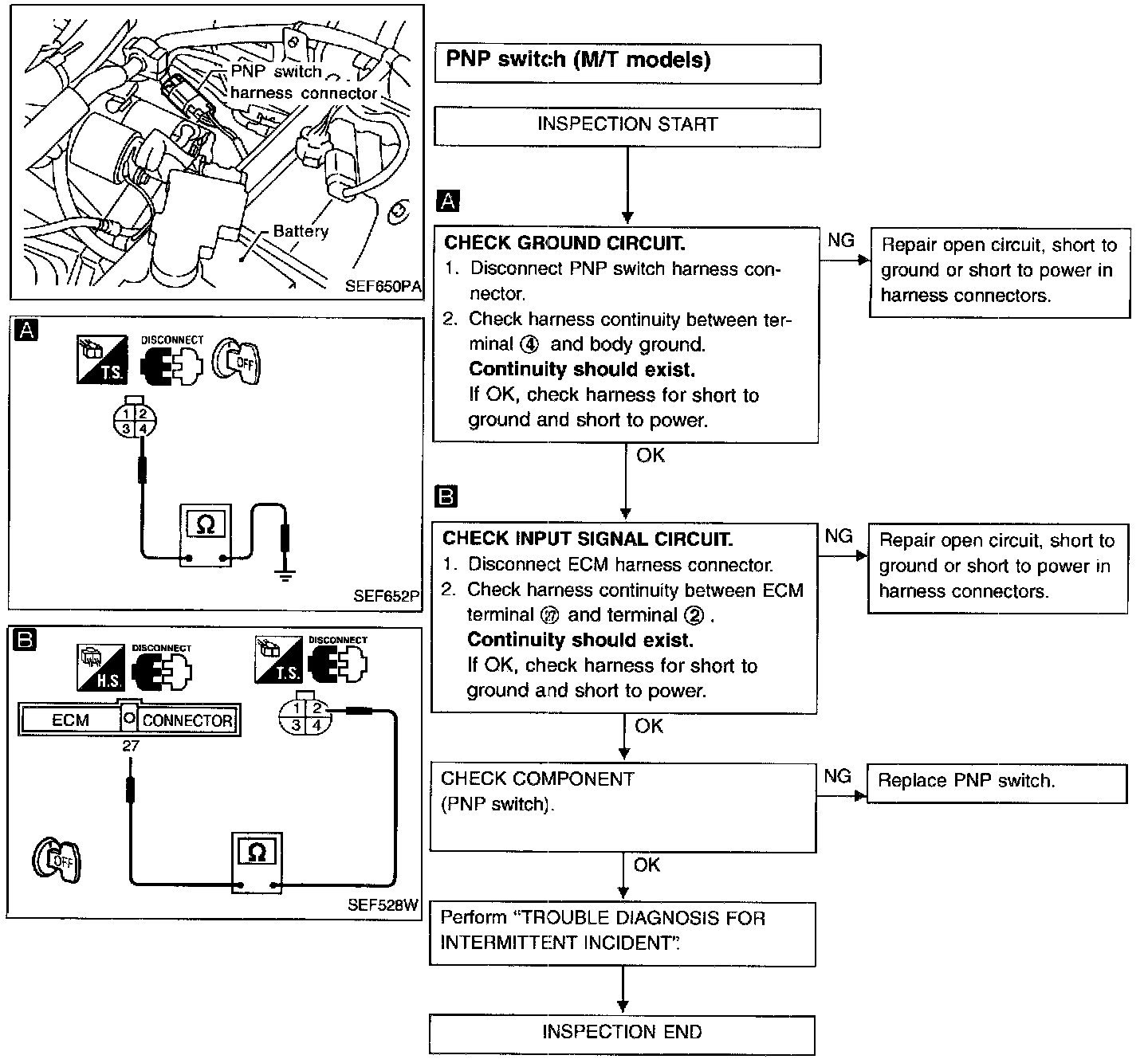

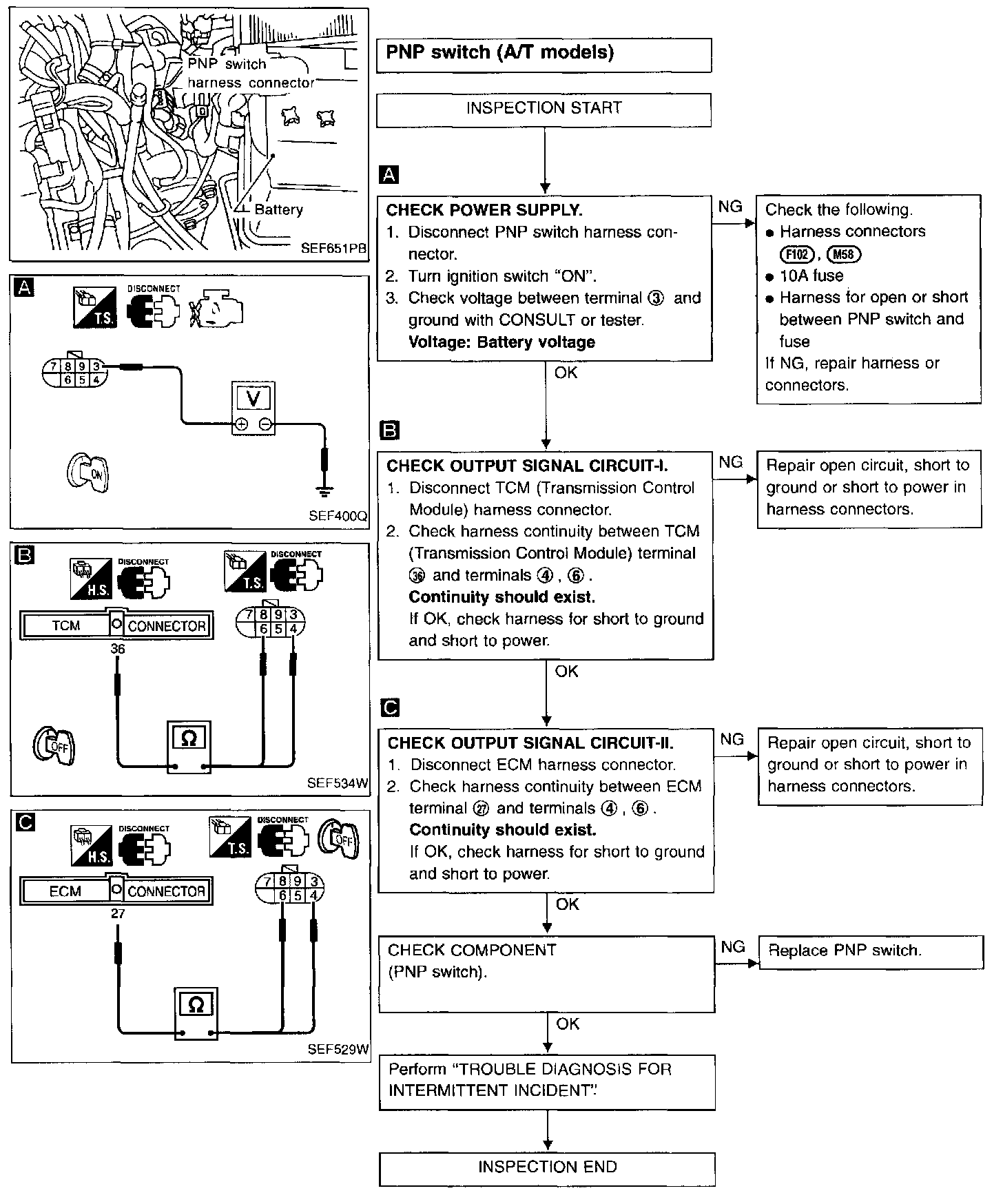

DIAGNOSTIC PROCEDURE
