Home >> Nissan-Datsun >> 1999 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Air Bag System >> Trouble Code Description and Repairs >> With CONSULT Scan Tool

With CONSULT Scan Tool

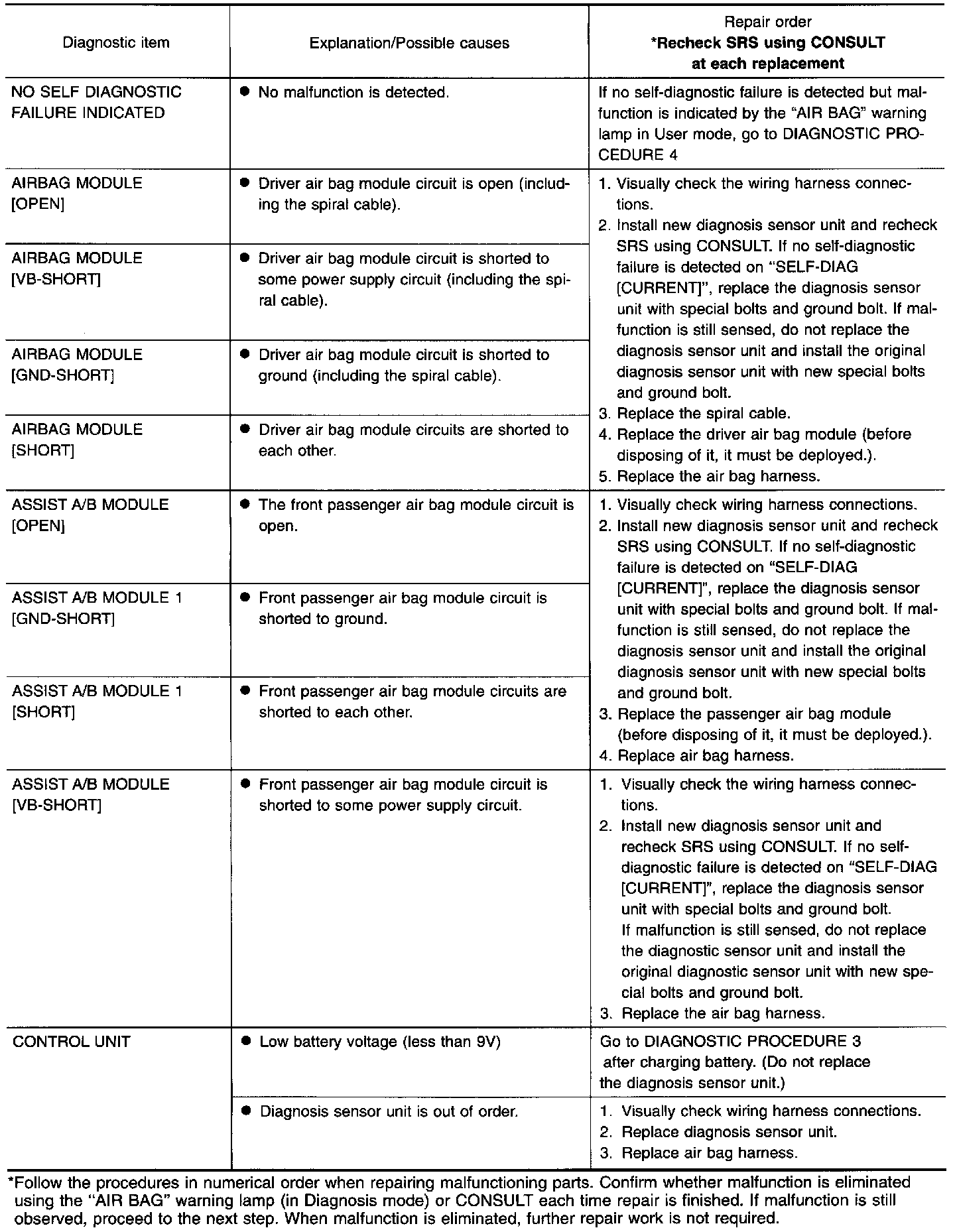

Consult Diagnostic Code Chart ("self-diag [current]"):



CONSULT DIAGNOSTIC CODE CHART ("SELF-DIAG [CURRENT]") {1 Of 2}:



CONSULT DIAGNOSTIC CODE CHART ("SELF-DIAG [CURRENT]") {2 Of 2}:
