DTC WORK SUPPORT MODE WITH CONSULT

CONSULT setting procedure
1. Turn ignition switch "OFF".

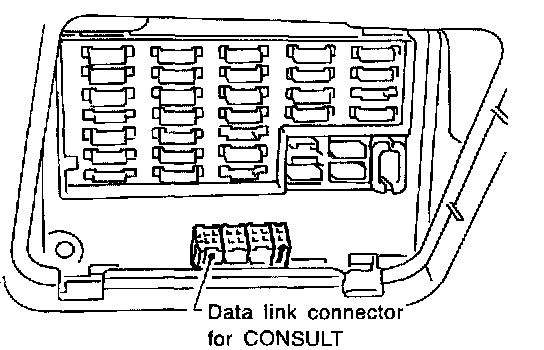

2. Connect CONSULT to Data link connector for CONSULT. Data link connector for CONSULT is located in left side dash panel.




3. Turn ignition switch "ON".

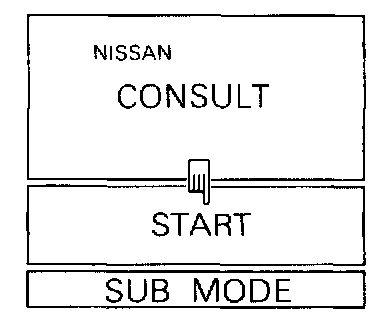

4. Touch "START".

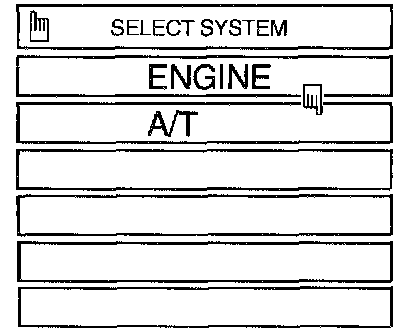

5. Touch "A/T".

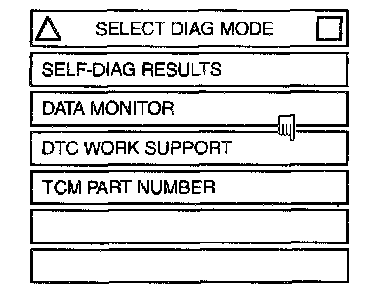

6. Touch "DTC WORK SUPPORT".

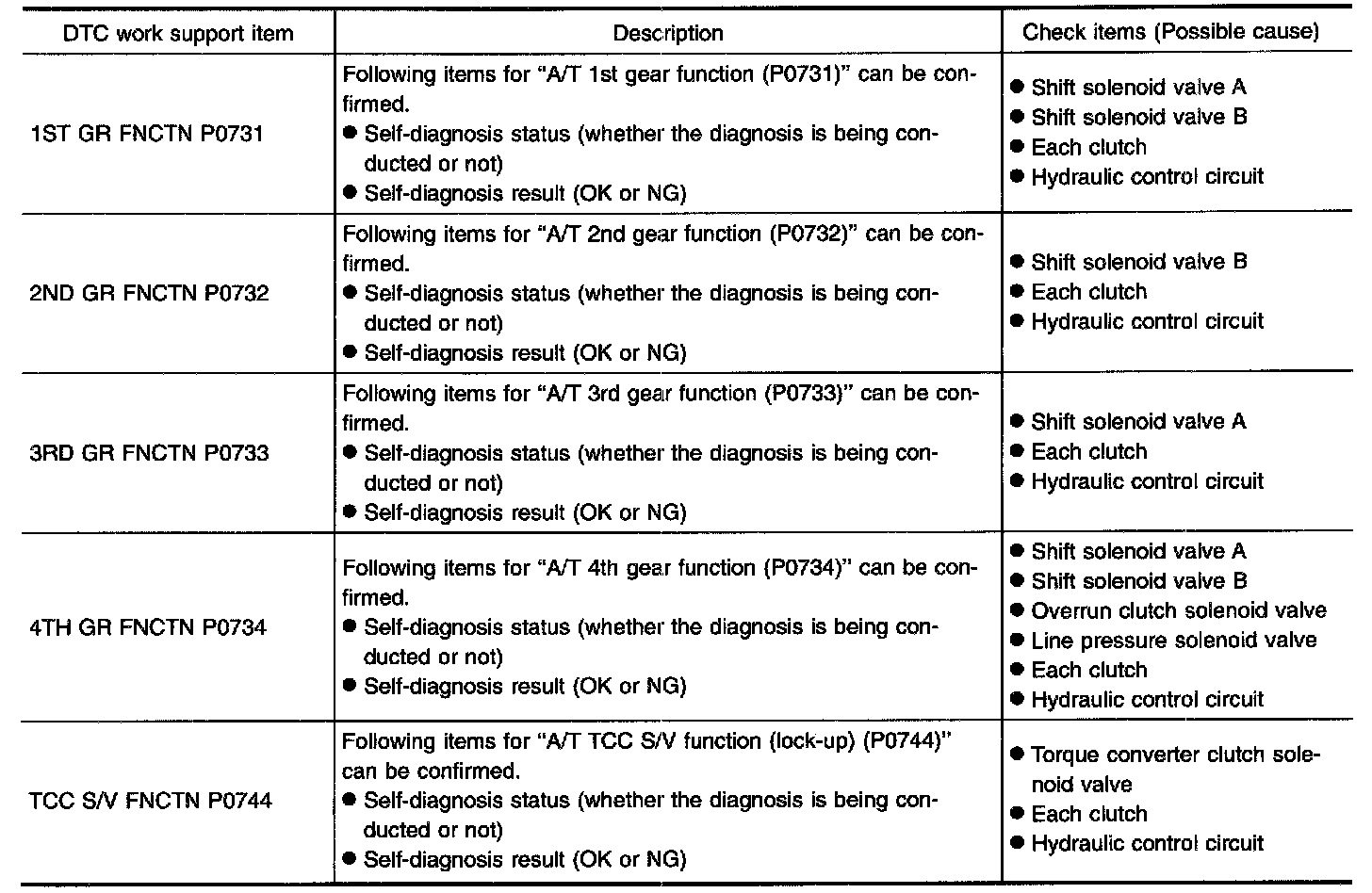

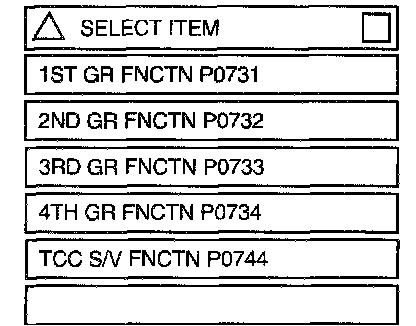

7. Touch select item menu (1ST, 2ND, etc.).

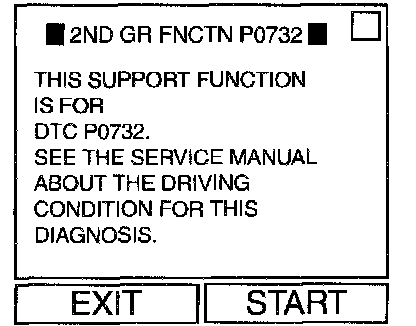

8. Touch "START".




9. Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

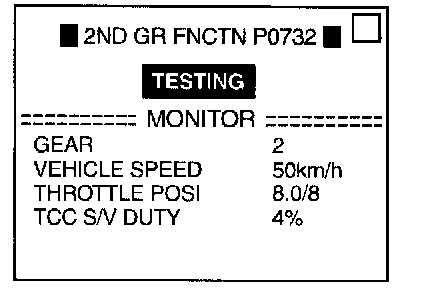

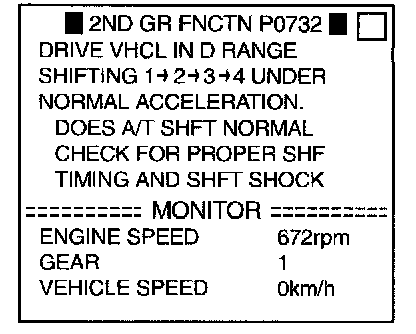

- When testing conditions are satisfied, CONSULT screen changes from "OUT OF CONDITION" to "TESTING".

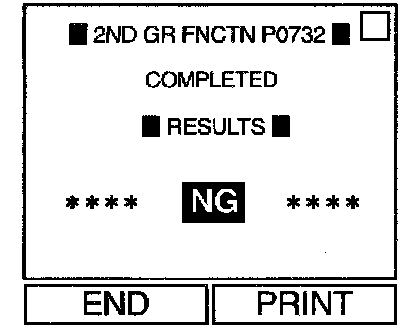

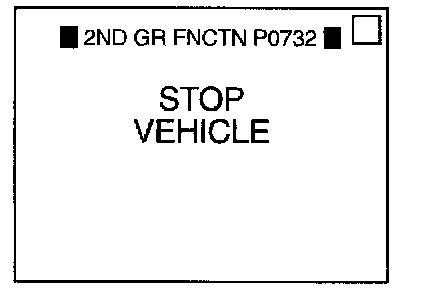

10. Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".




11. Perform test drive to check gear shift feeling in accordance with instructions displayed.

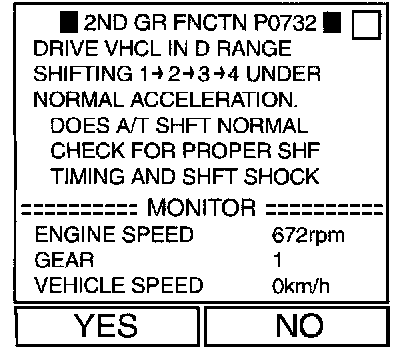

12. Touch "YES" or "NO".

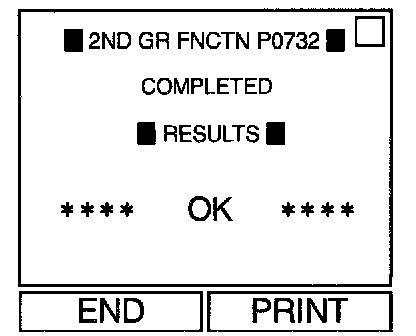

13. CONSULT procedure ended.

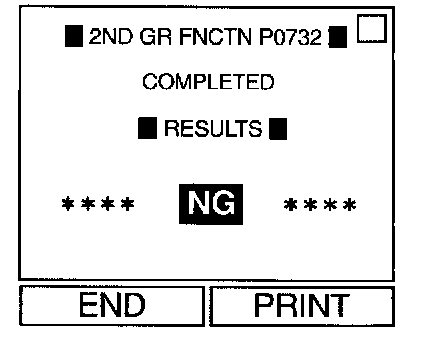

If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".




DTC WORK SUPPORT MODE
