Rear Wheel Bearing

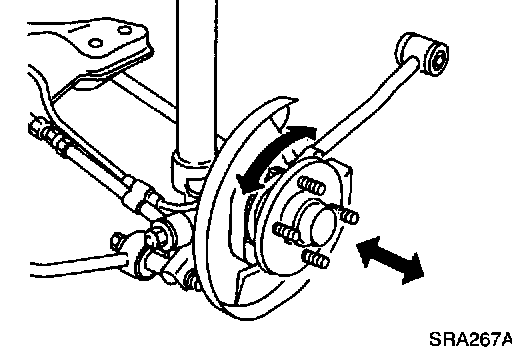

- Check axial end play.

Axial end play: 0.05 mm (0.0020 inch) or less

- Check that wheel bearings operate smoothly.
- Check tightening torque of wheel bearing lock nut.

186 - 255 Nm (19 - 26 kg-m, 137 - 188 ft. lbs.)

- If axial end play is not within specification or wheel bearing does not turn smoothly, replace wheel bearing assembly.
