Major Overhaul

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:

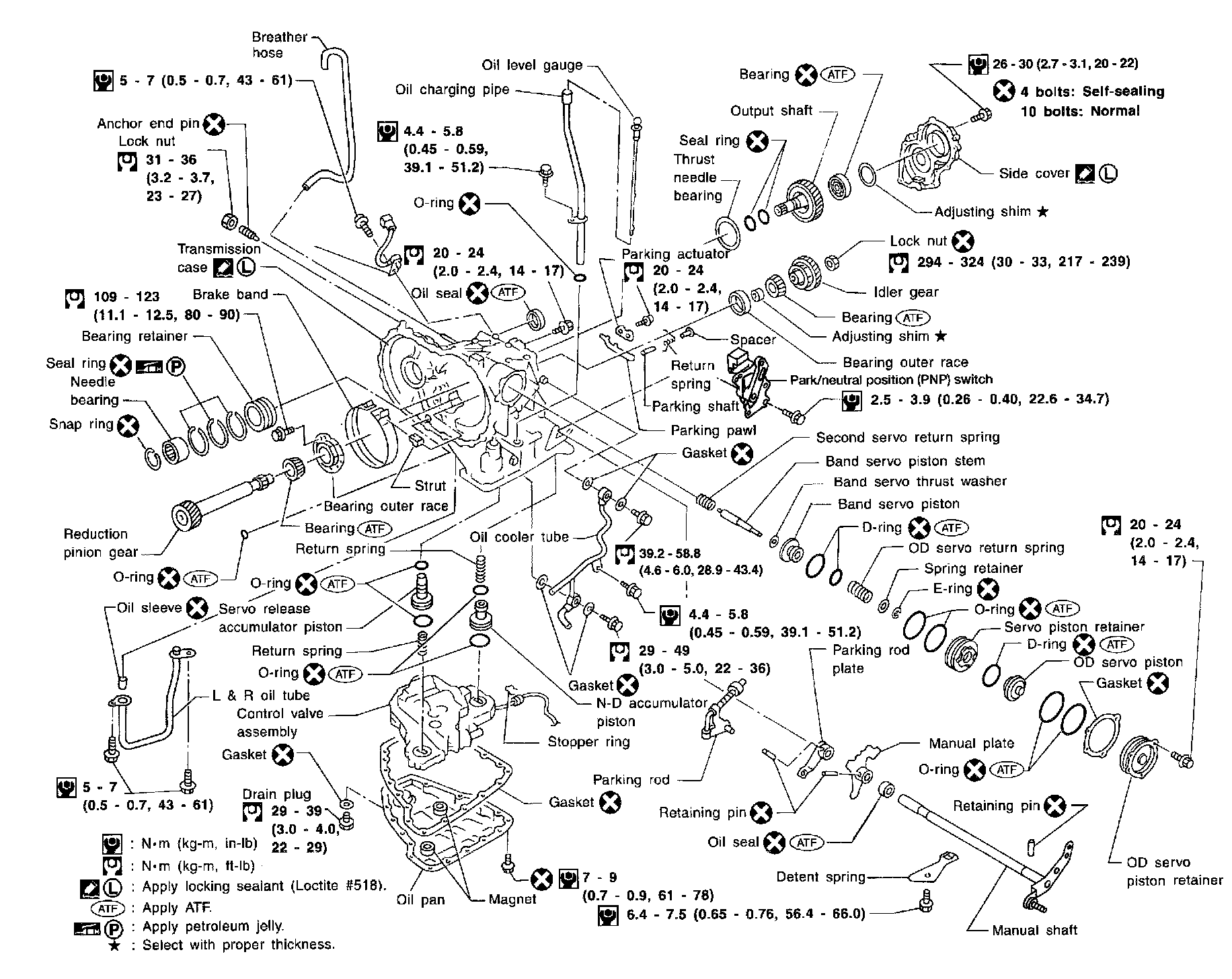

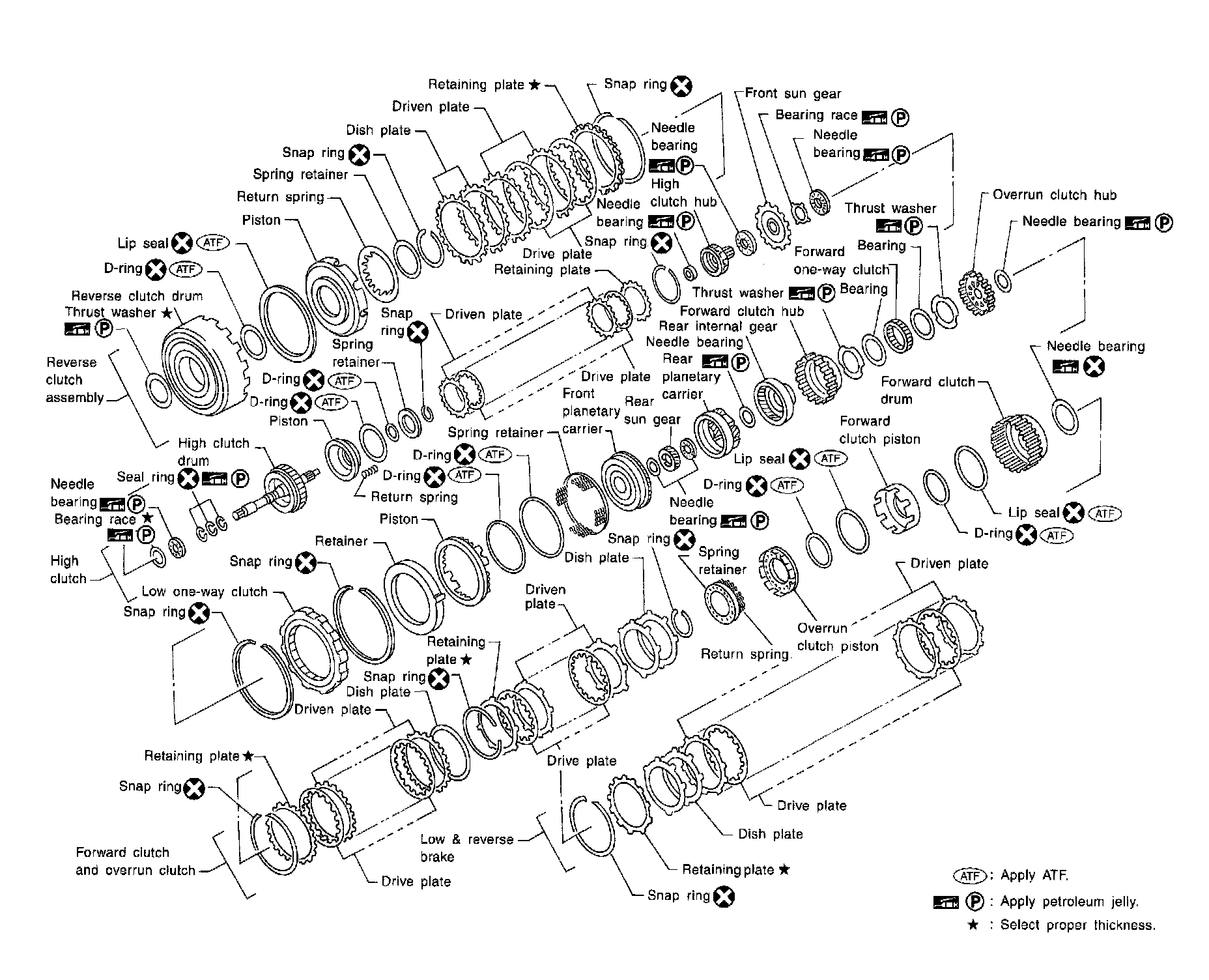

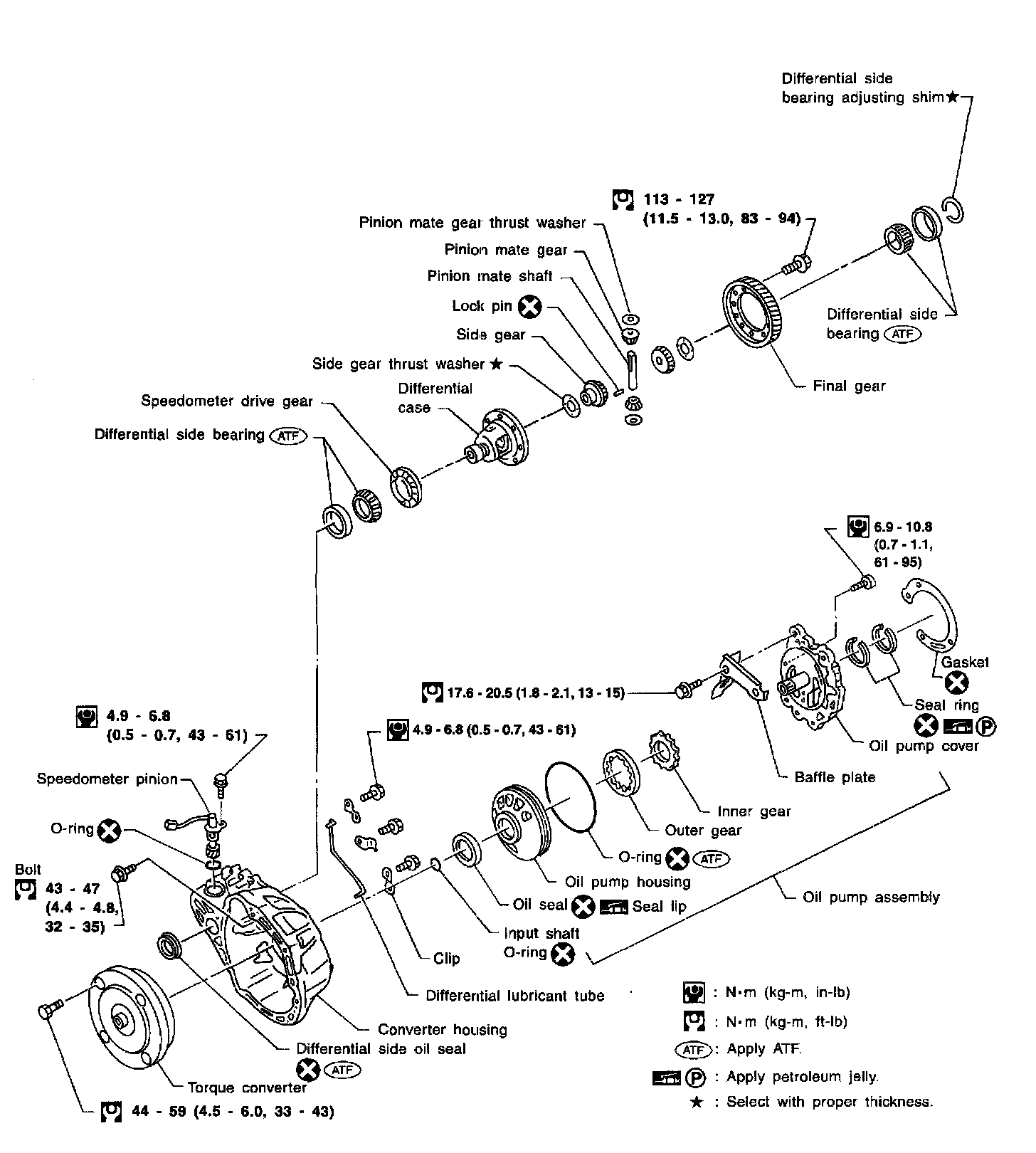

MAJOR OVERHAUL

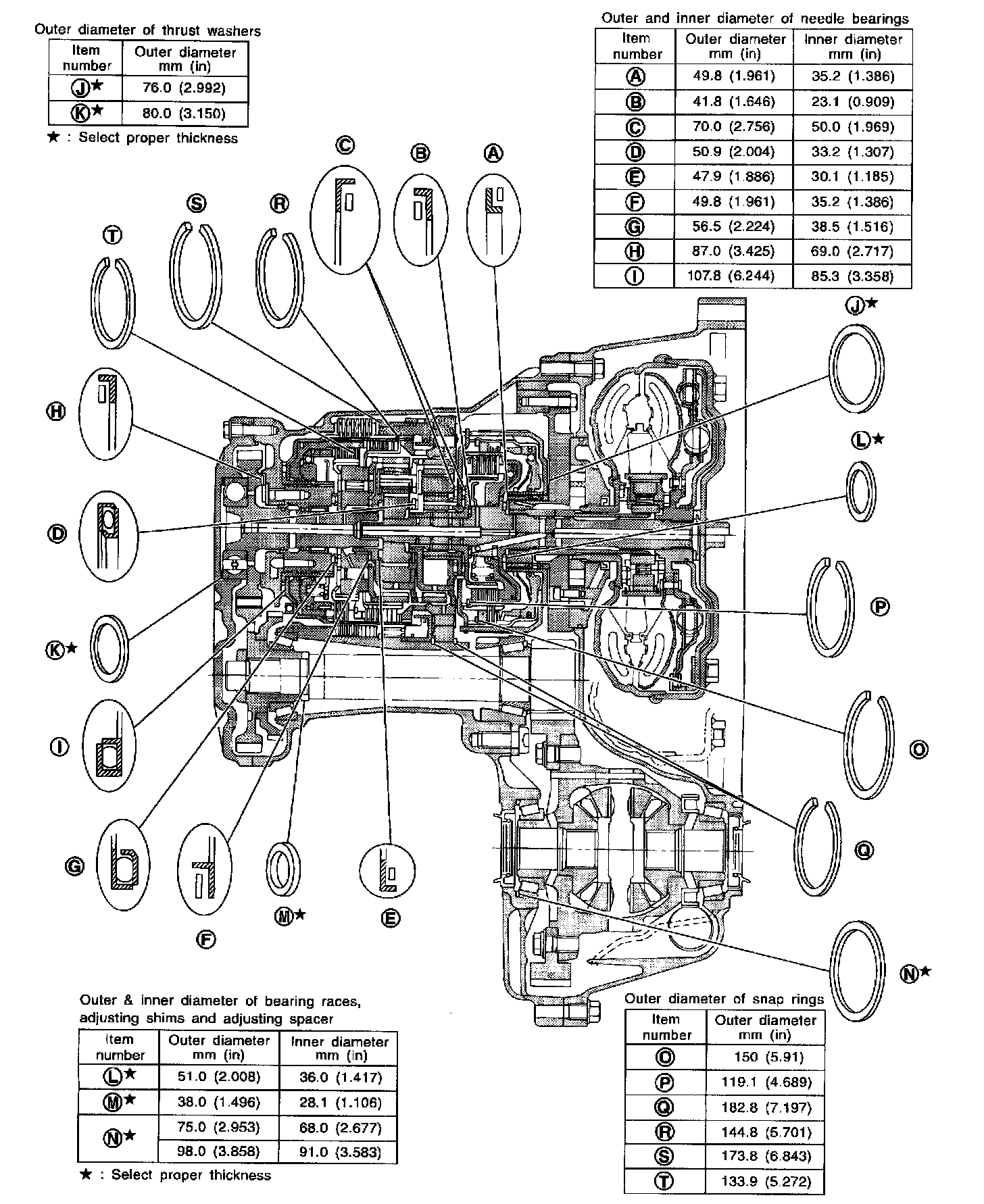

Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings





Oil Channel
