Dimensional/Clearance Specifications

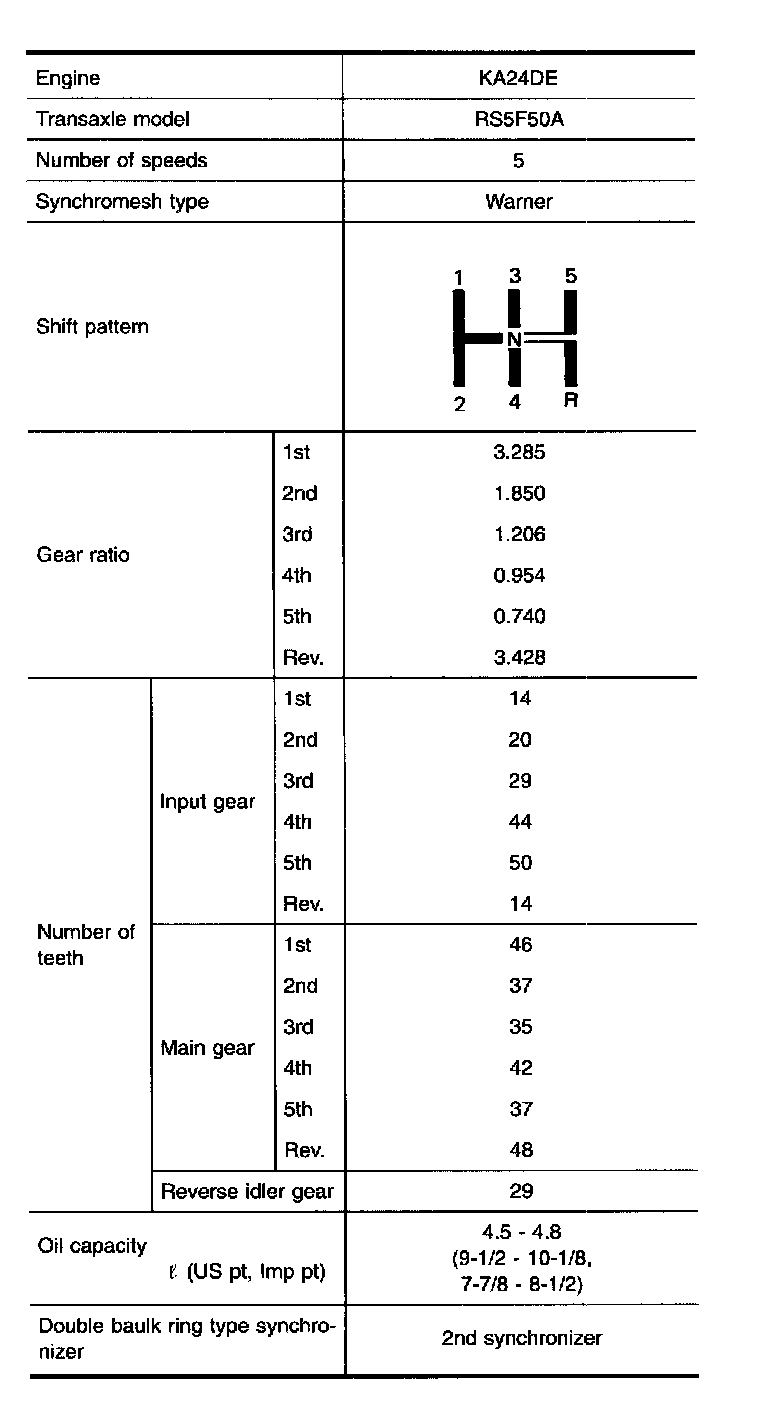

General Specifications
TRANSAXLE

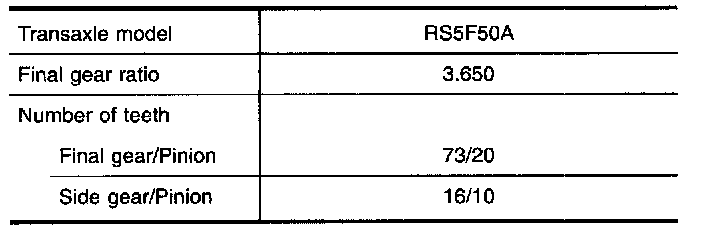

FINAL GEAR
Inspection and Adjustment

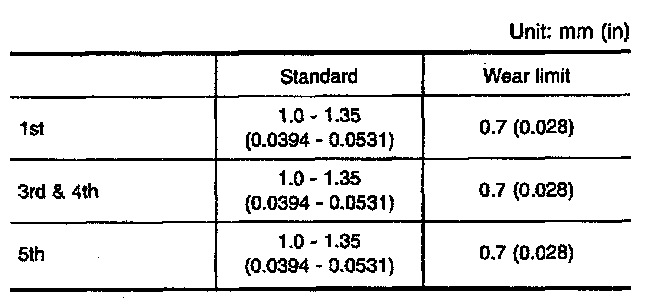

CLEARANCE BETWEEN BAULK RING AND GEAR
1st, 3rd, 4th & 5th

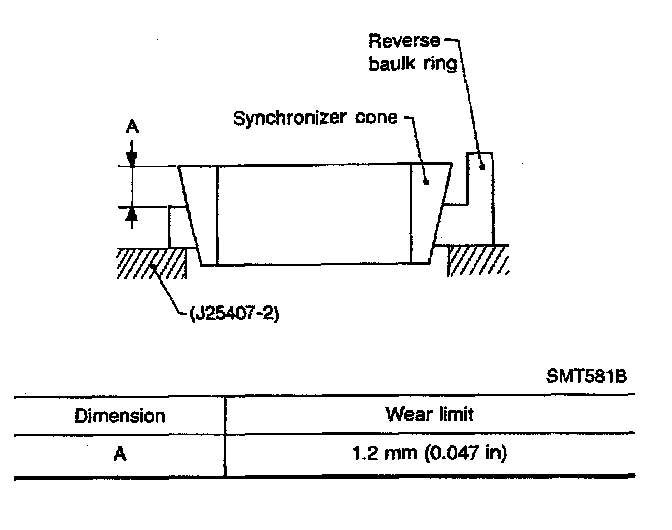

Reverse baulk ring
2nd double baulk ring
AVAILABLE SNAP RING
3rd & 4th synchronizer hub (At input shaft)
1st & 2nd synchronizer hub (At mainshaft)
5th main gear (At mainshaft)
AVAILABLE THRUST WASHER
4th input gear (At input shaft)
Differential side gear thrust washer
AVAILABLE SHIM-INPUT SHAFT END PLAY AND MAINSHAFT AND DIFFERENTIAL SIDE BEARING PRELOAD AND ADJUSTING SHIM

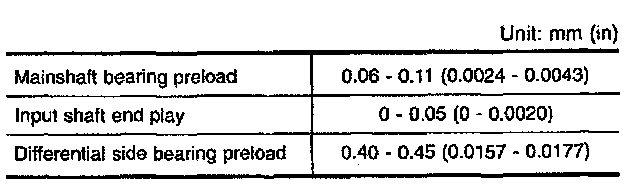

Bearing preload and end play

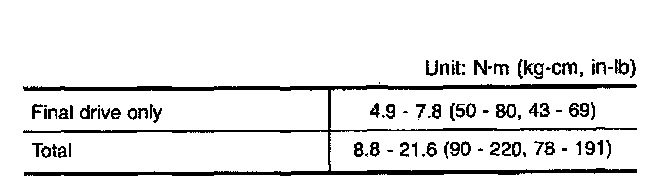

Turning torque (New bearing)
