Combination Switch Base

For removal and installation of spiral cable, see "SUPPLEMENTAL RESTRAINT SYSTEM (SRS)".






- To remove combination switch base, remove base attaching screw.

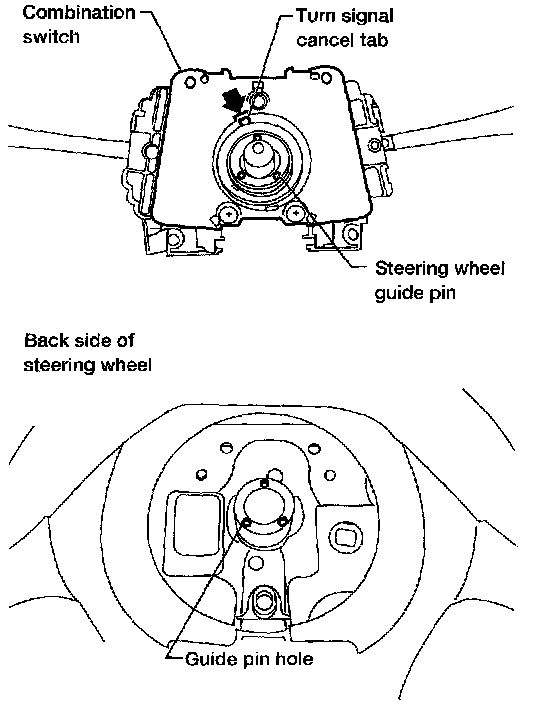

- Before installing the steering wheel, guide pins with the screws which secure the combination switch.
Refer to installation, driver air bag module and spiral cable.
