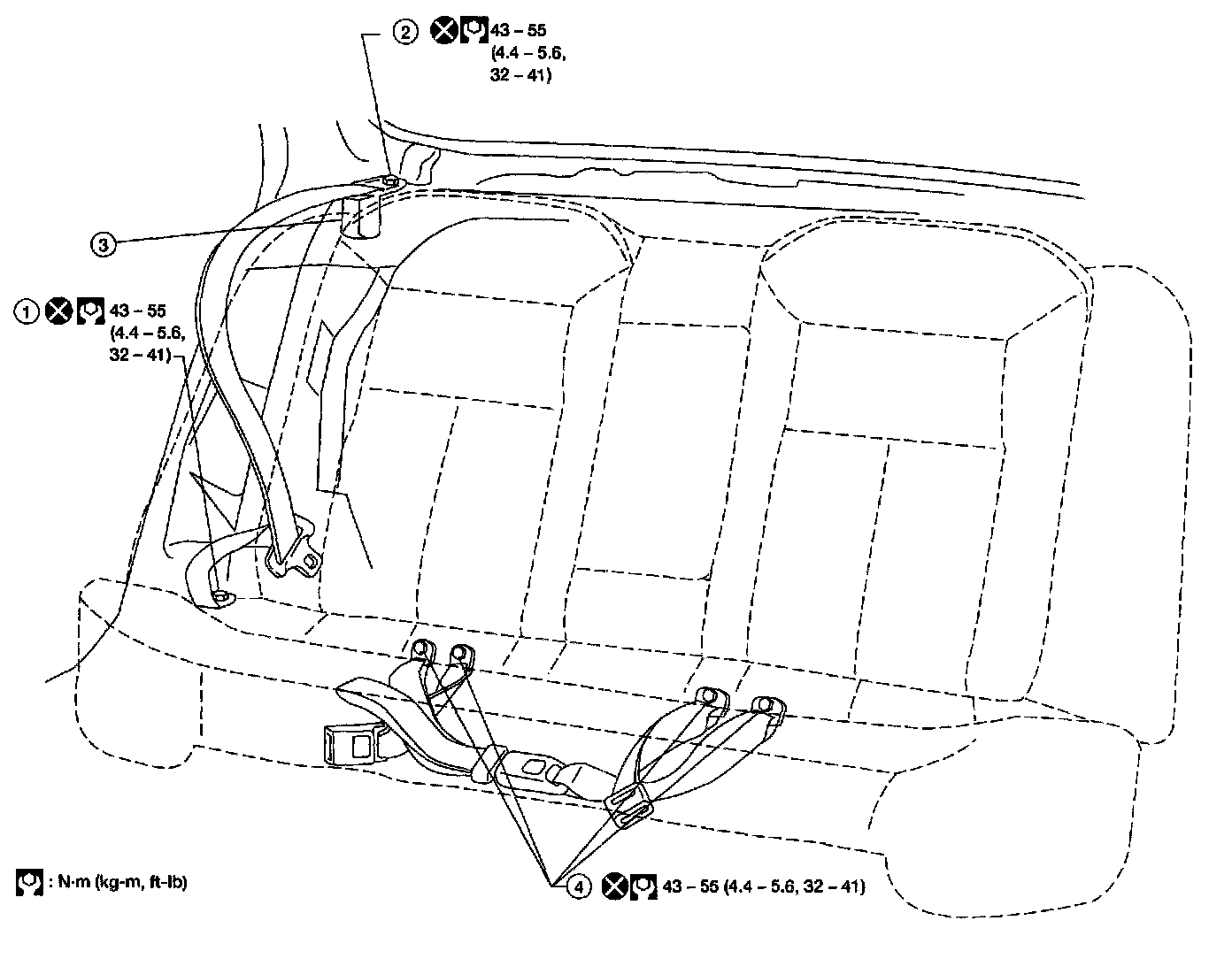

Rear Seat Belt

Rear Seat Belts:






REMOVAL AND INSTALLATION
Remove rear seat cushion and rear seat back.
1. Remove outer floor anchor bolt.
Remove rear parcel shelf finisher.

2. Remove retractor anchor bolt.
3. Remove retractor.
4. Remove inner floor anchor bolt.
5. For Installation, reverse the Removal steps.
