Front Seat Belt

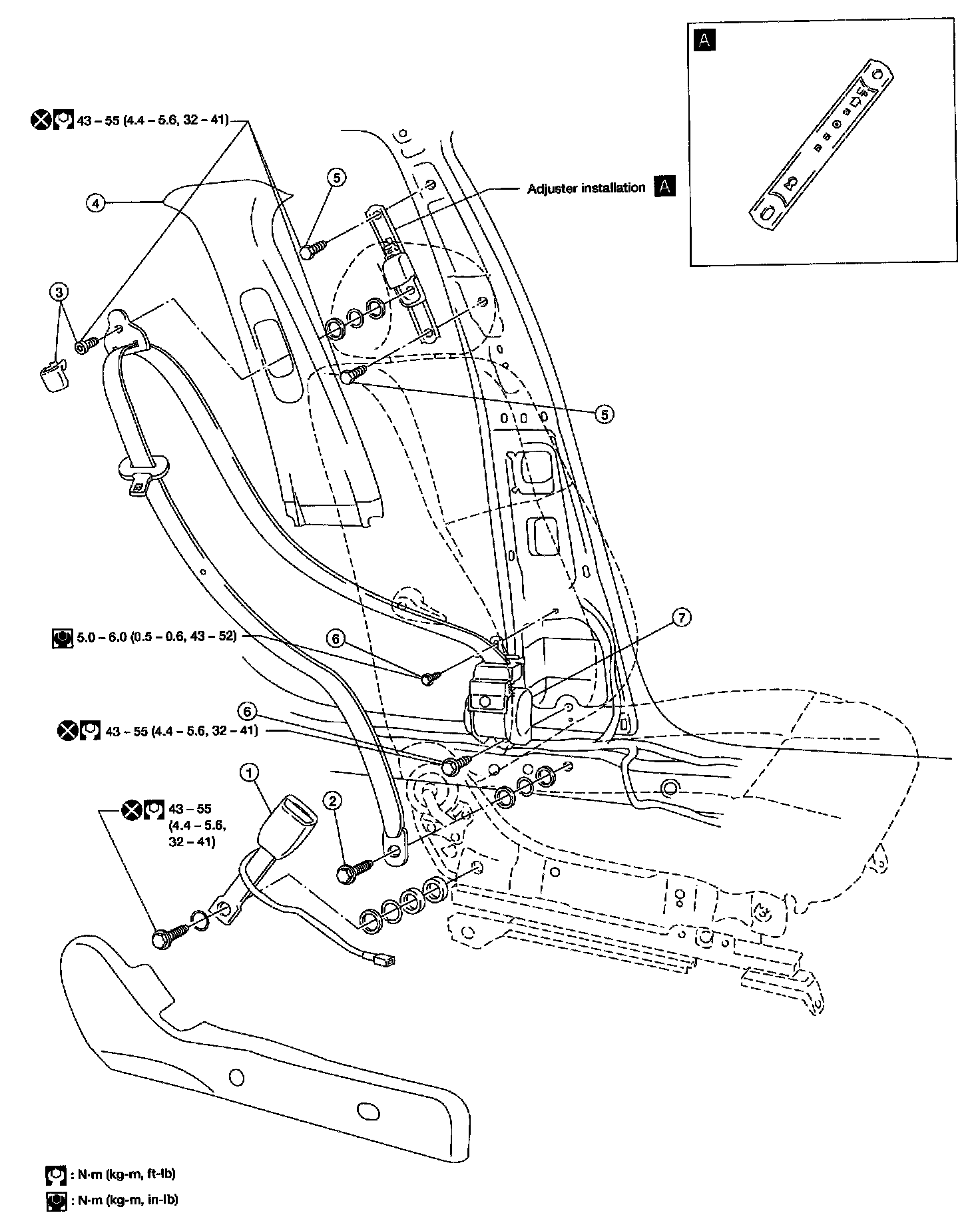

Front Seat Belts:

REMOVAL AND INSTALLATION
Remove front seat.

1. Remove buckle.
Remove front and rear inner kick plates.

2. Remove belt anchor bolt.
Remove center pillar lower garnish.

3. Remove adjuster cover and upper guide loop anchor bolt.
4. Remove center pillar upper garnish.
5. Remove two adjuster bolts and adjuster assembly. "A"
6. Remove retractor bolt and screw.
7. Remove retractor.
8. For Installation, reverse the Removal steps.
