Seat Belt Retractor Off-Vehicle Check

1. Remove the seat belt retractor assembly.

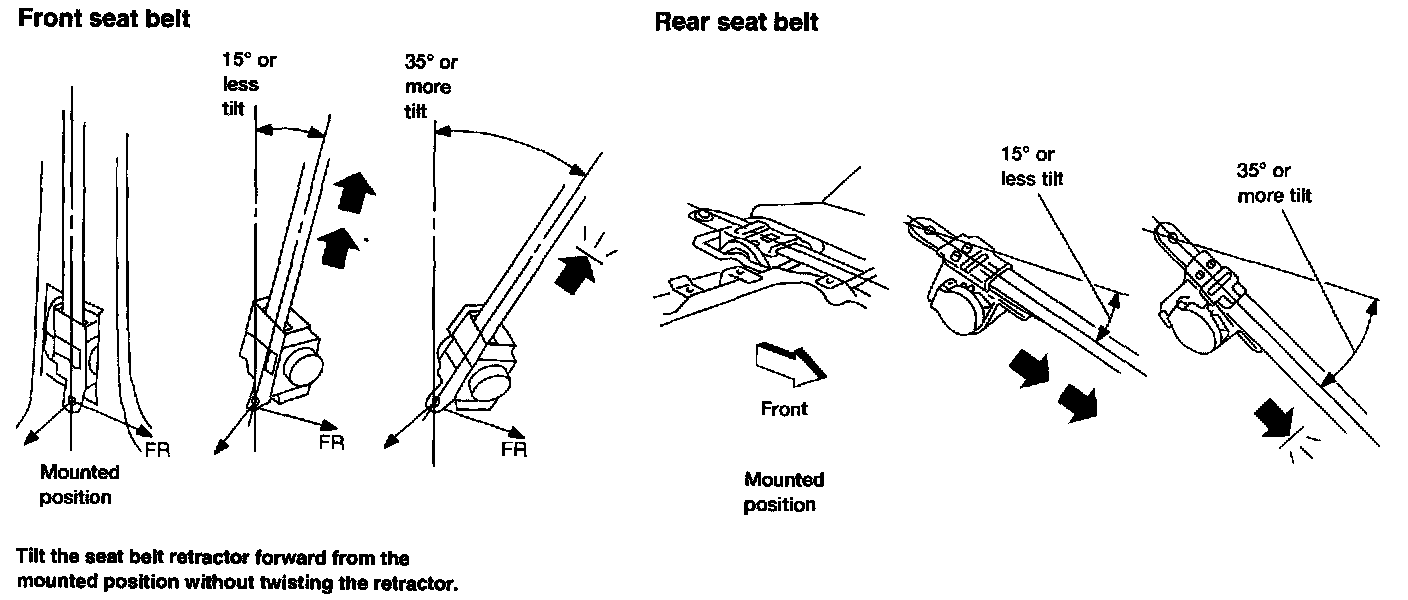

2. Slowly pull out belt while tilting the retractor assembly as shown in the illustration.

Belt can be pulled out when retractor is tilted 15 degrees or less from its mounted position.

Belt locks and cannot be pulled out when retractor is tilted more than 35 degrees from its mounted position.

If NG replace the retractor assembly.
