Connector Views

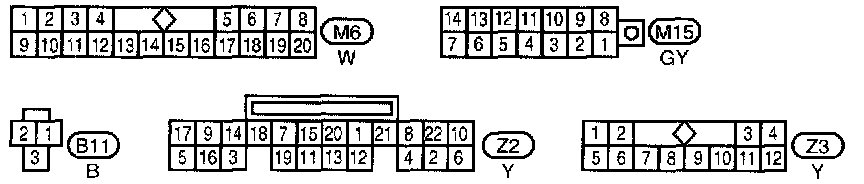

SRS System Connectors (1 Of 2):

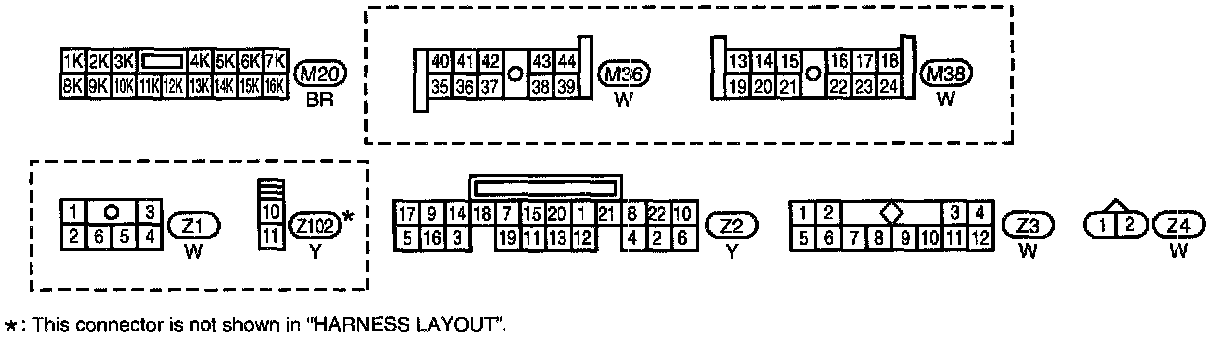

SRS System Connectors (2 Of 2):





Circuit Connectors
