Control Module HVAC: Testing and Inspection

1. Run engine, and operate A/C system.

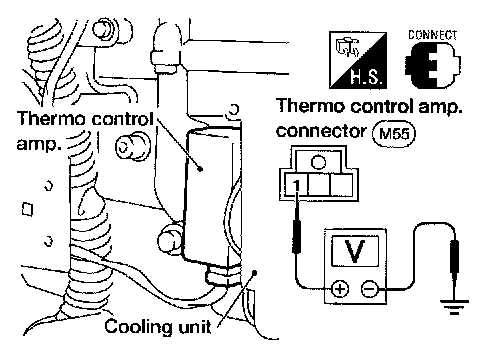

2. Connect the voltmeter from harness side.

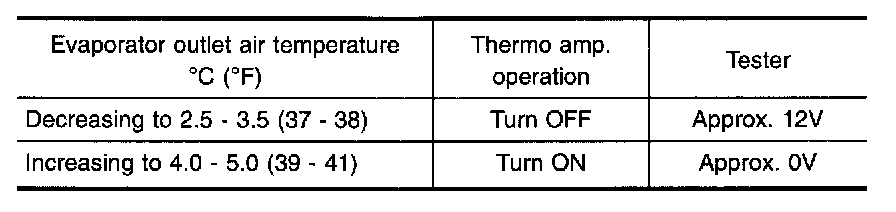

3. Check thermo control amp. operation shown in the table.
