Compressor Clutch Relay: Testing and Inspection

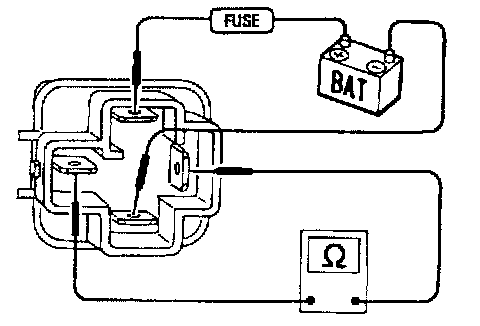

Check circuit continuity between terminals by supplying 12 volts to coil side terminals of air conditioner relay.
