Brake Fluid Solenoid Valve Relay: Service and Repair

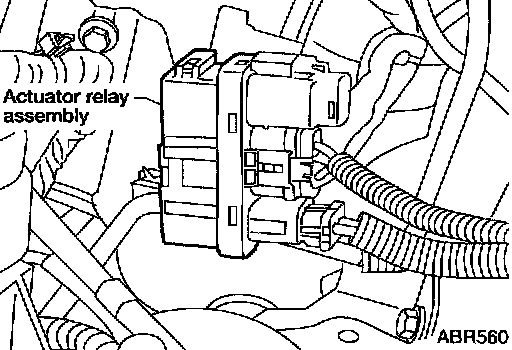

ACTUATOR RELAY ASSEMBLY
1. Disconnect battery cable.
2. Remove air cleaner and air duct.
3. Disconnect relay assembly connectors.





4. Unclip and remove relay assembly.
