One-Way Fuel Valve

ONE-WAY FUEL VALVE





1. Drain fuel from the tank. Refer to "COMPONENT INSPECTION" of refueling EVAP vapor cut valve.
2. Remove fuel filler tube and hose.

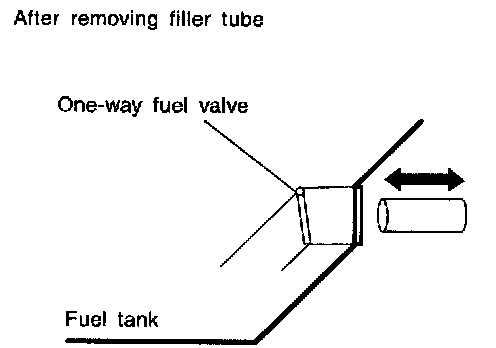

3. Check one-way fuel valve for operation.
When a stick is insured, the valve should open. When removing stick it should close.
Do not drop any material into the tank.
If NG, replace one-way fuel valve with fuel tank.
