Evaporative Emission Control Canister: Specifications

TIGHTENING TORQUE

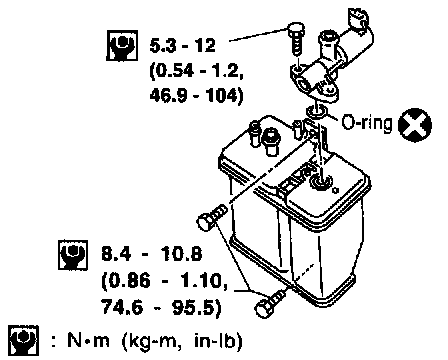

Tighten EVAP canister as shown in the image.
Make sure new O-ring is installed properly between EVAP canister and EVAP vent control valve.
