Power Supply Testing

WIRING DIAGRAM

Terminals 4 Thru 118:

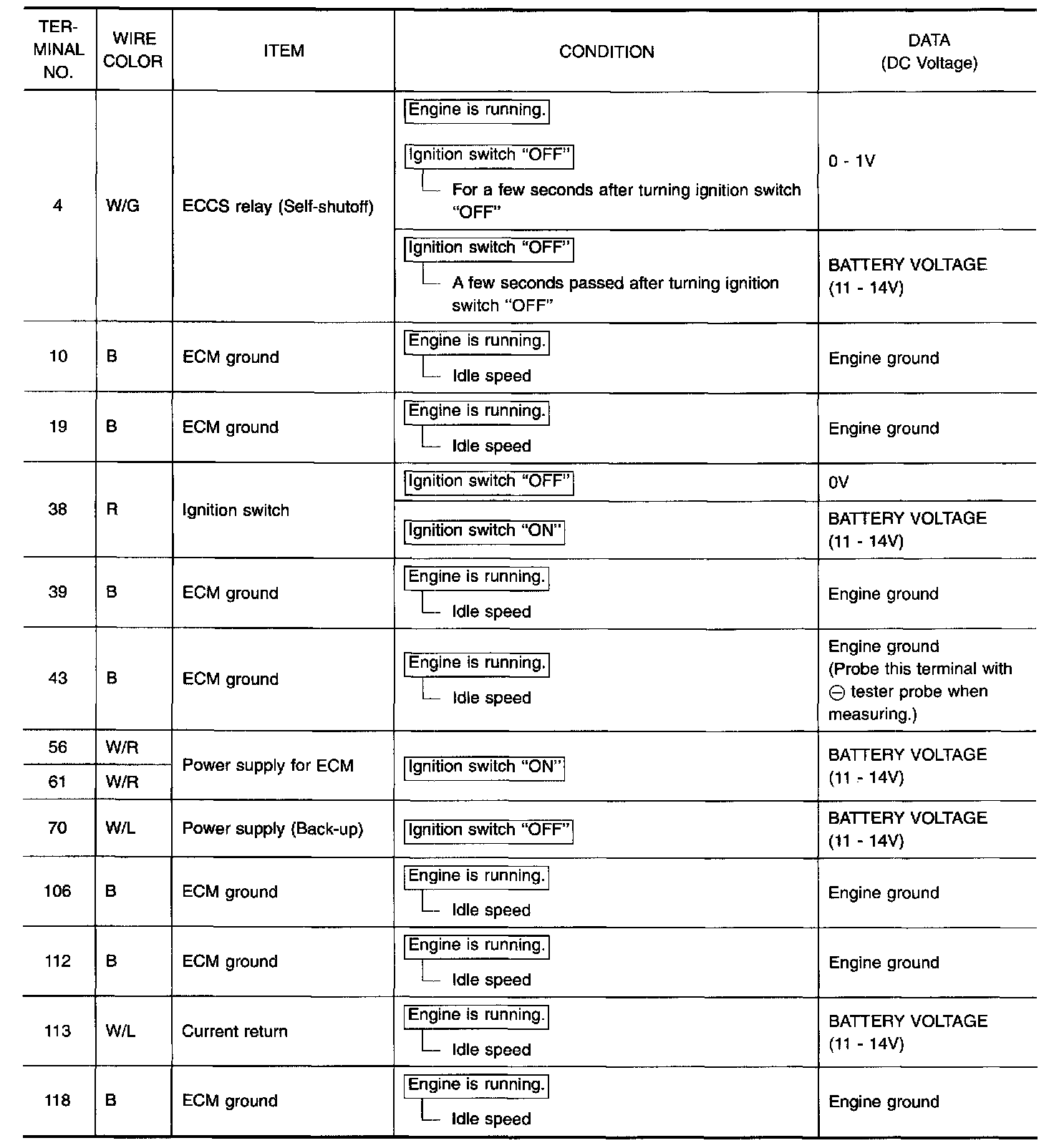

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and (43) (ECM ground).

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

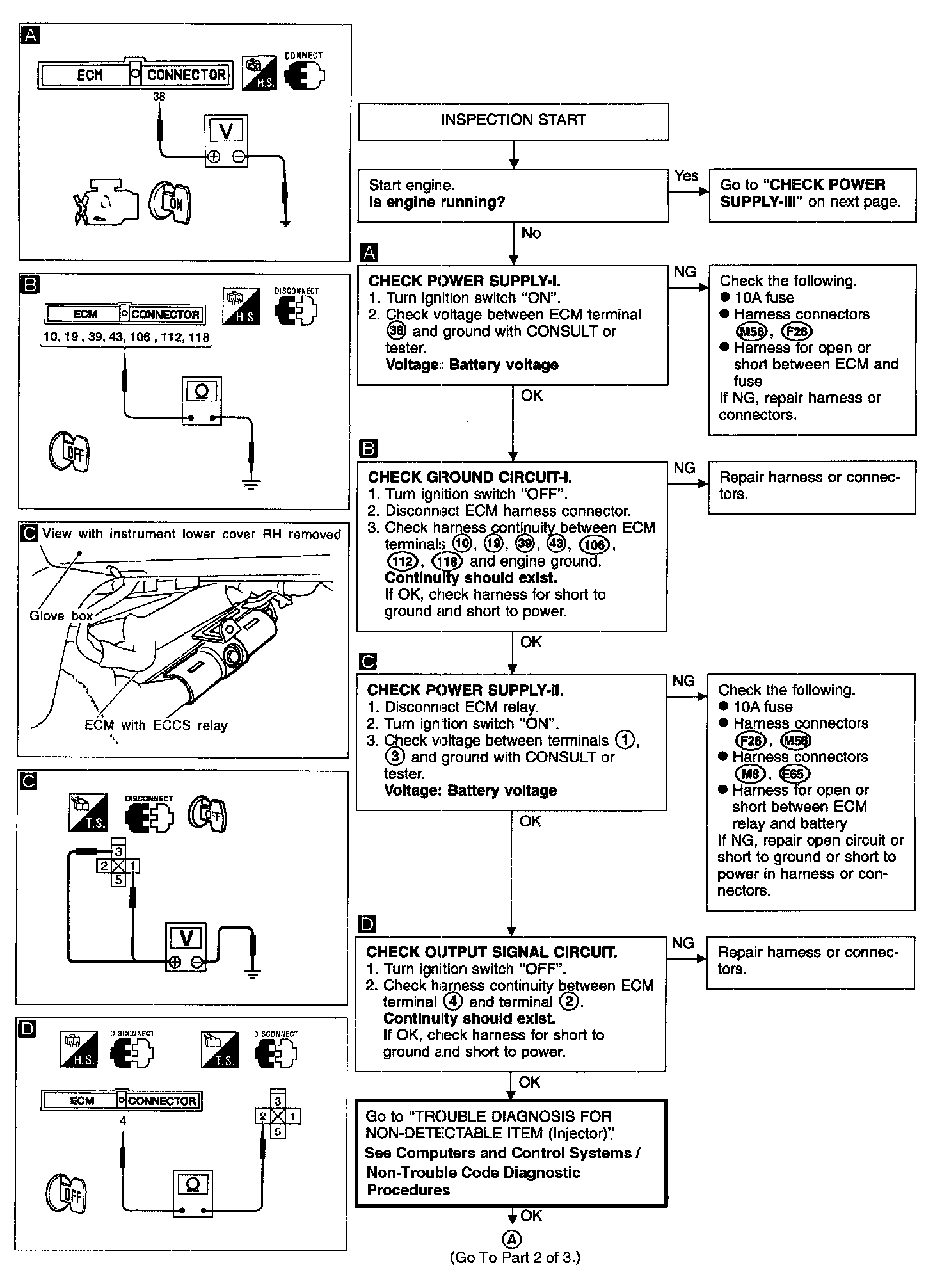

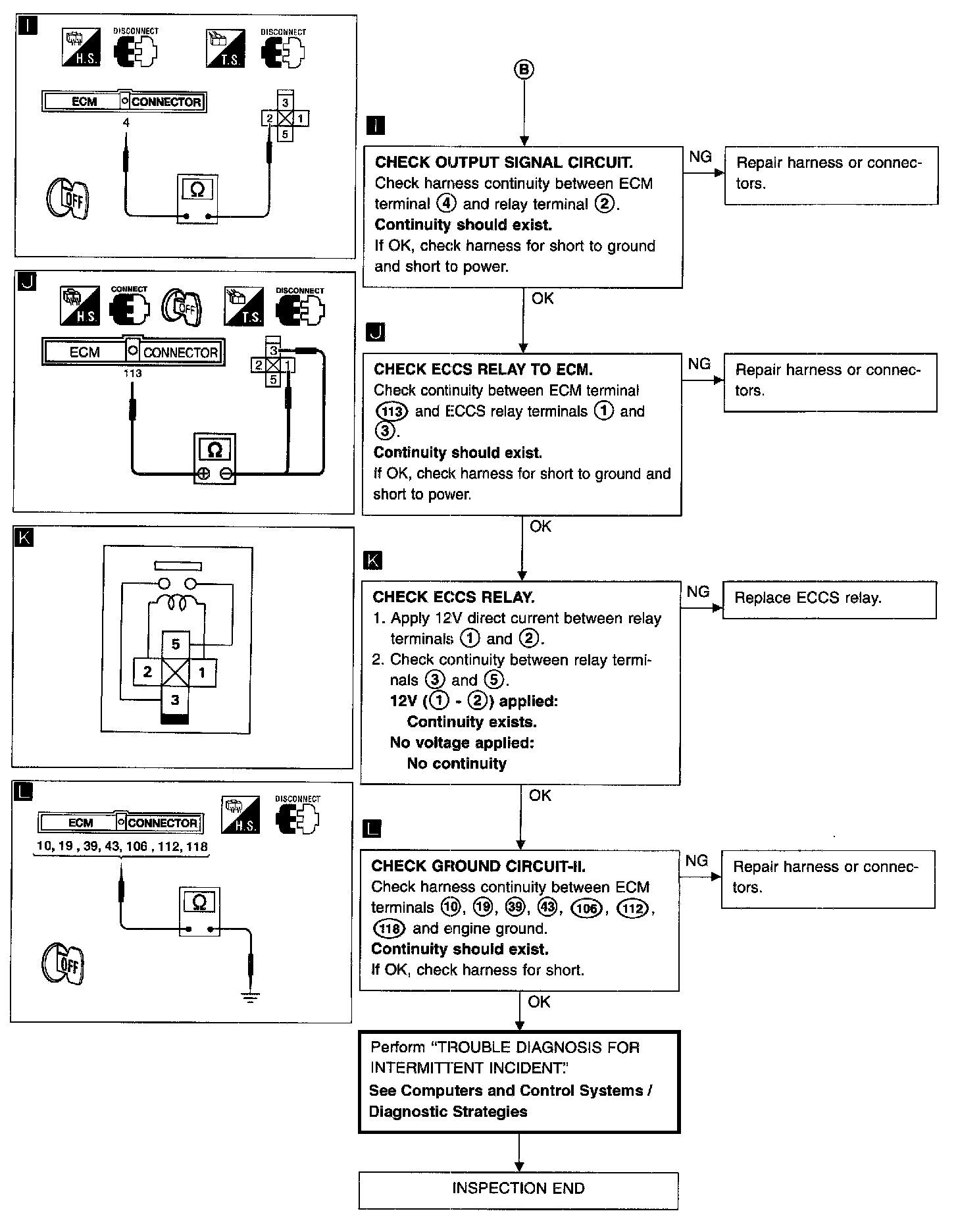

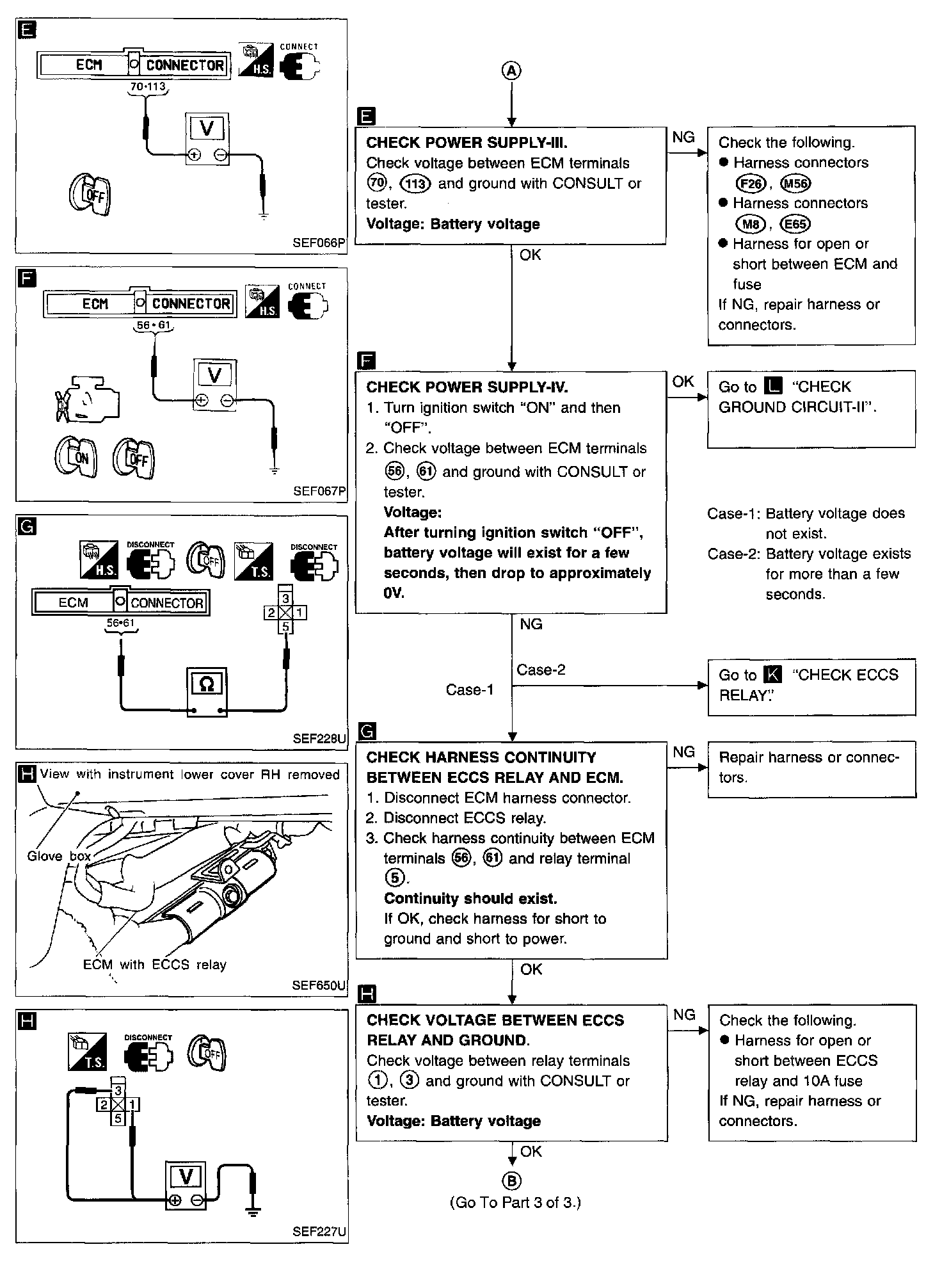

DIAGNOSTIC PROCEDURE
