Instrument Cluster / Carrier: Service and Repair

CAUTION:
- Disconnect both terminals from battery in advance.
- Disconnect air bag module connectors in advance.
- Never tamper with or force air bag lid open, as this may adversely affect air bag performance.
- Be careful not to scratch finishers and other parts.

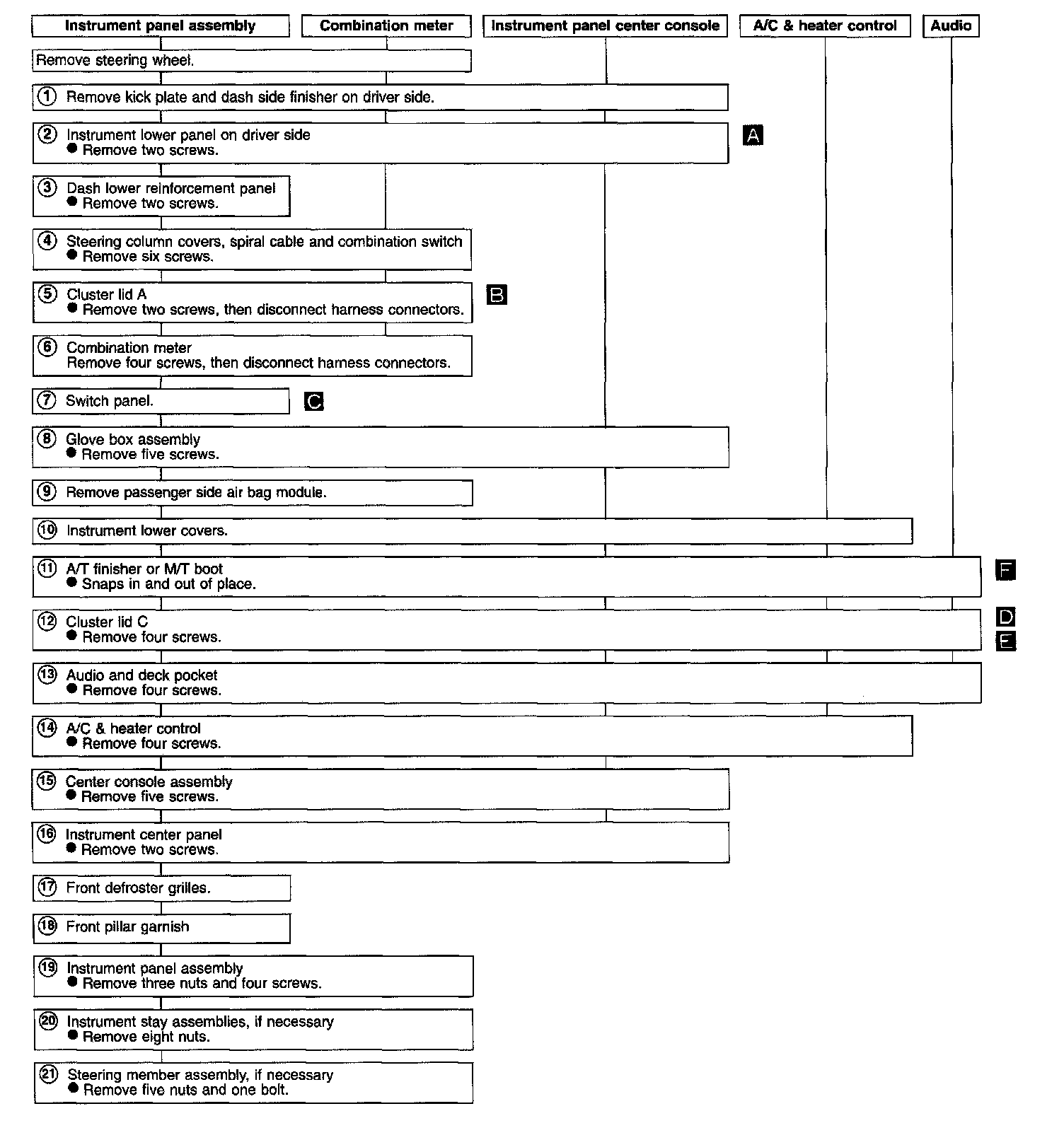

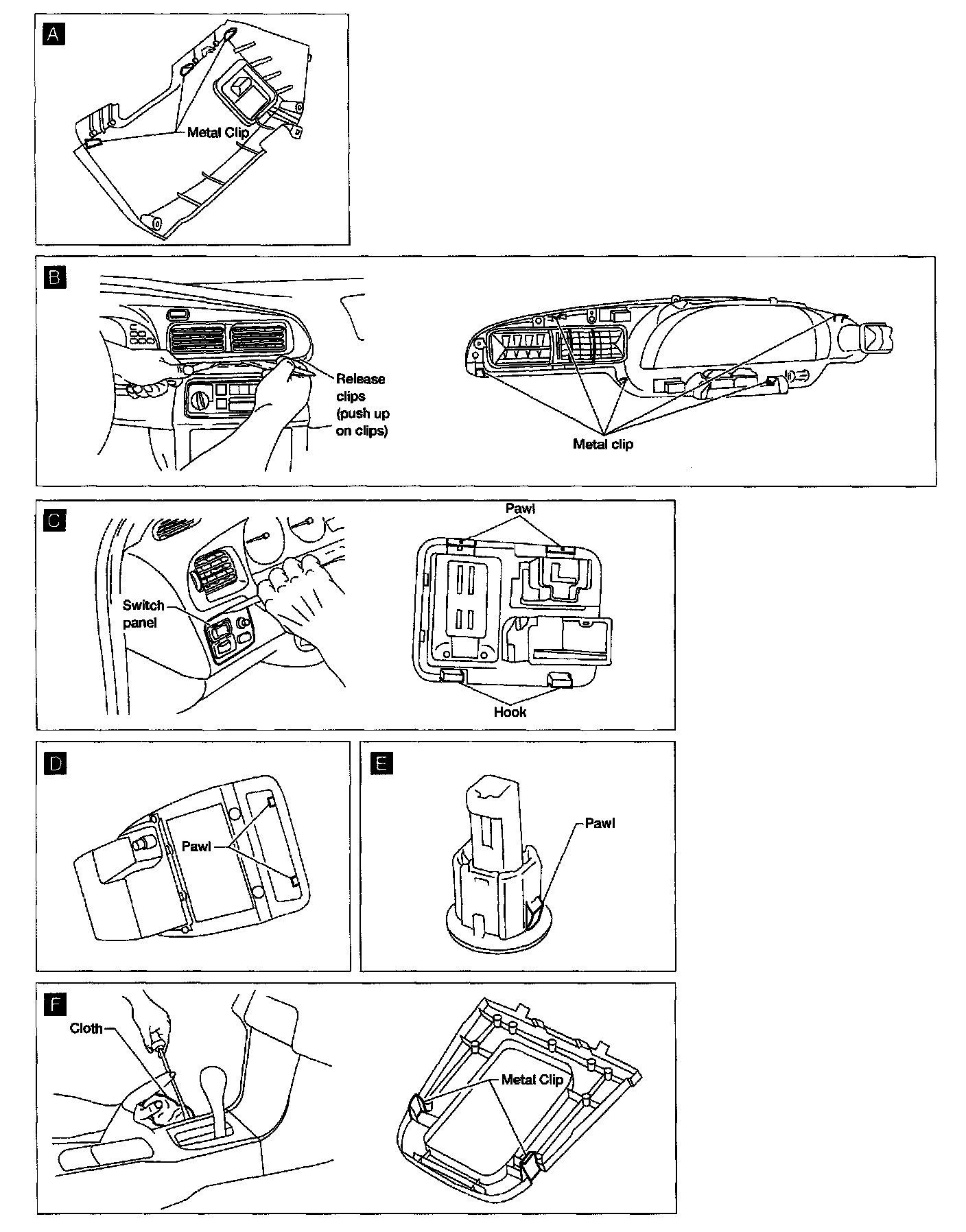

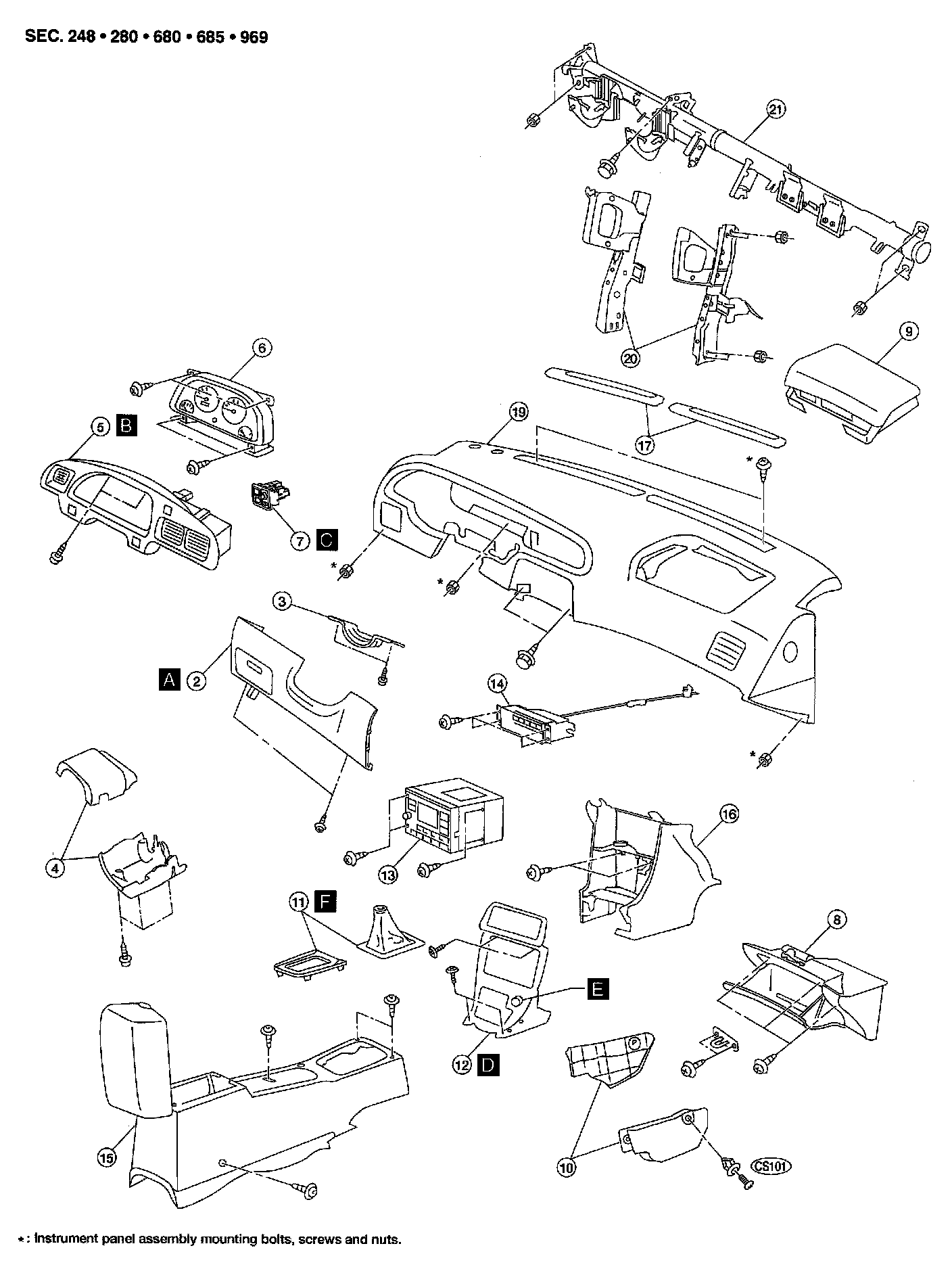

REMOVAL - Instrument panel assembly
