Performance Charts

TEST CONDITION
Testing must be performed as follows:
Vehicle location: Indoors or in the shade (in a well ventilated place)
Doors: Closed
Door window: Open
Hood: Open
TEMP. setting: Max. COLD
Discharge Air: Face Vent
REC switch: (Recirculation) set
Fan speed: High speed
A/C switch: ON
Engine speed: 1,500 rpm
Operate the air conditioner system for 10 minutes before taking measurements.

TEST READING

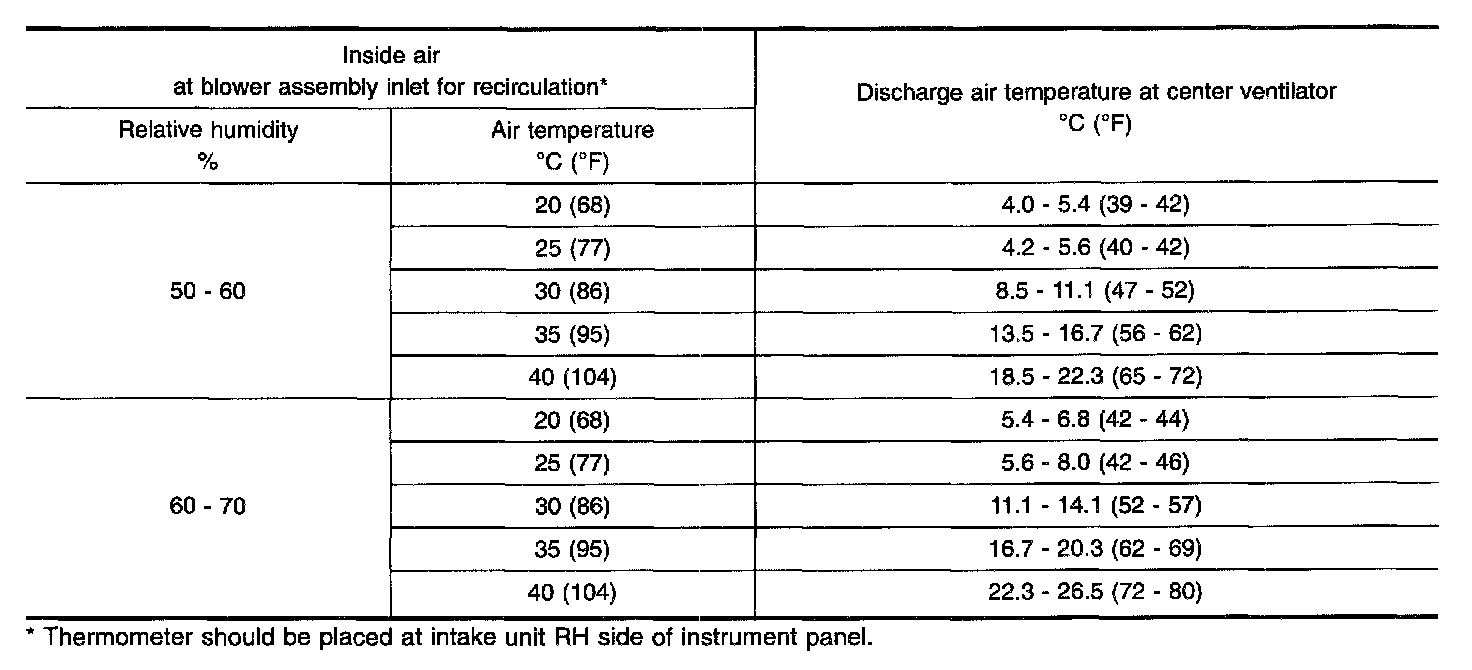

Recirculating-to-discharge air temperature table

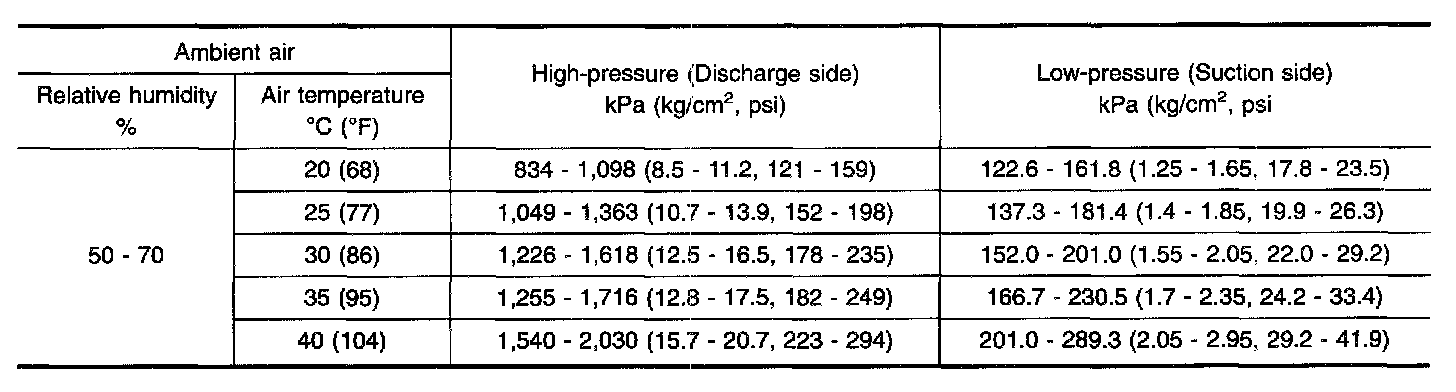

Ambient air temperature-to-operating pressure table
If pressure is not within range, refer to "Trouble Diagnoses for Abnormal Pressure."
