Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Blower Motor
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics

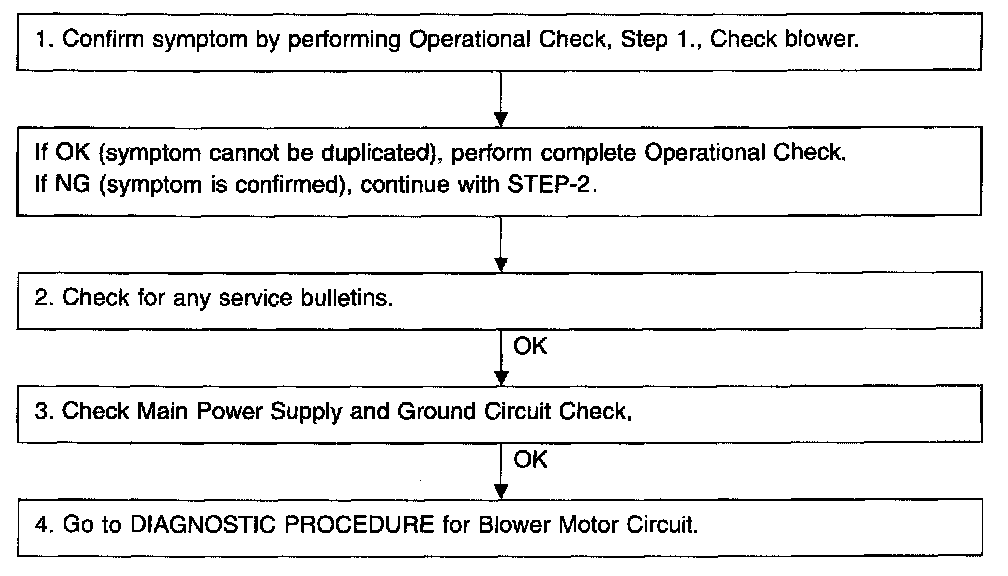

INSPECTION FLOW

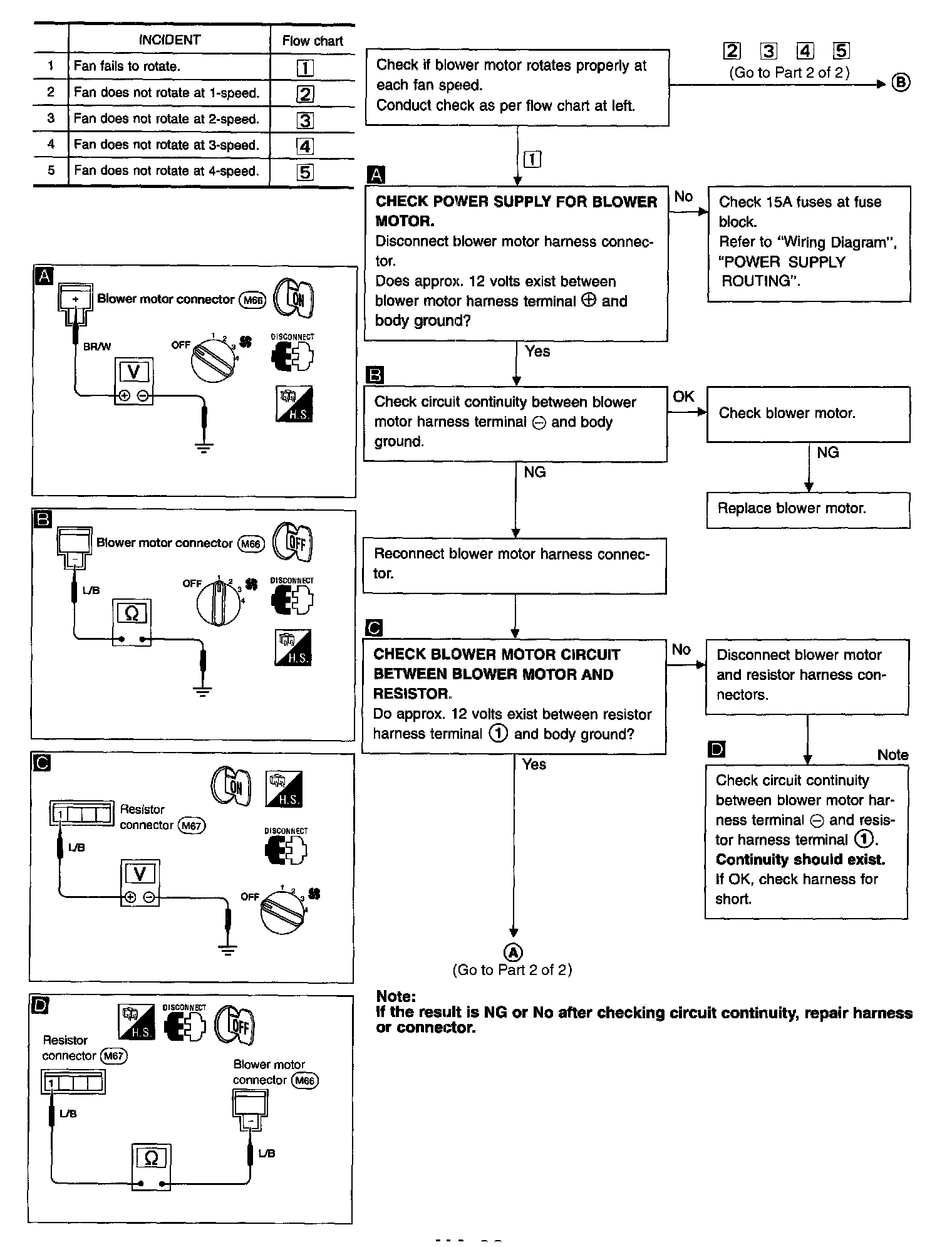

Part 1 Of 2:

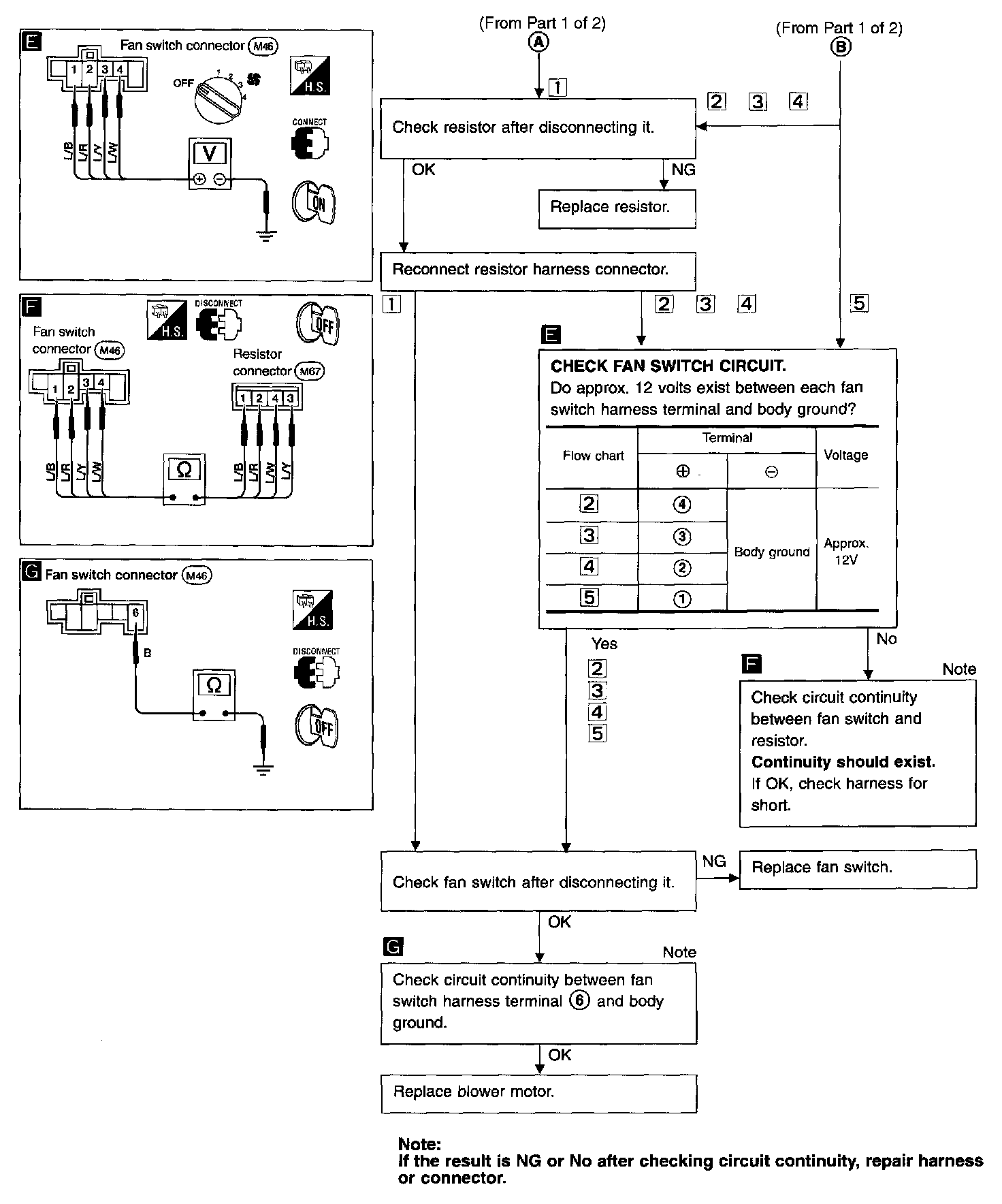

Part 2 Of 2:
SYMPTOM:
Blower motor
does not rotate.
