Valve Guide Seal: Service and Repair

Valve Oil Seal
1. Remove rocker cover.
2. Remove camshaft.

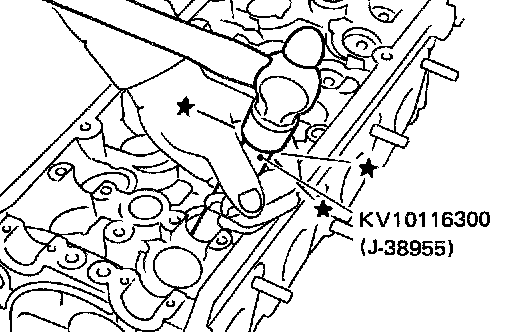

3. Remove valve spring and valve oil seal with Tool or suitable tool.
- Piston must be set at TDC to prevent valve from failing.

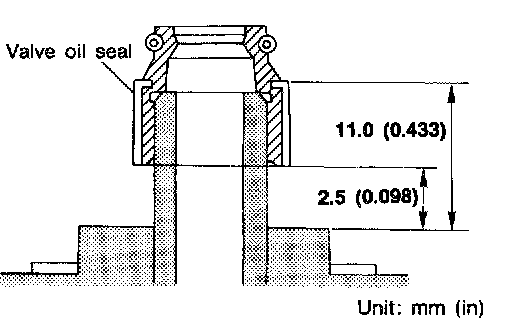

4. Apply engine oil to new valve oil seal and install it with Tool.
