Home >> Nissan-Datsun >> 1999 >> Altima XE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Harness No. 2

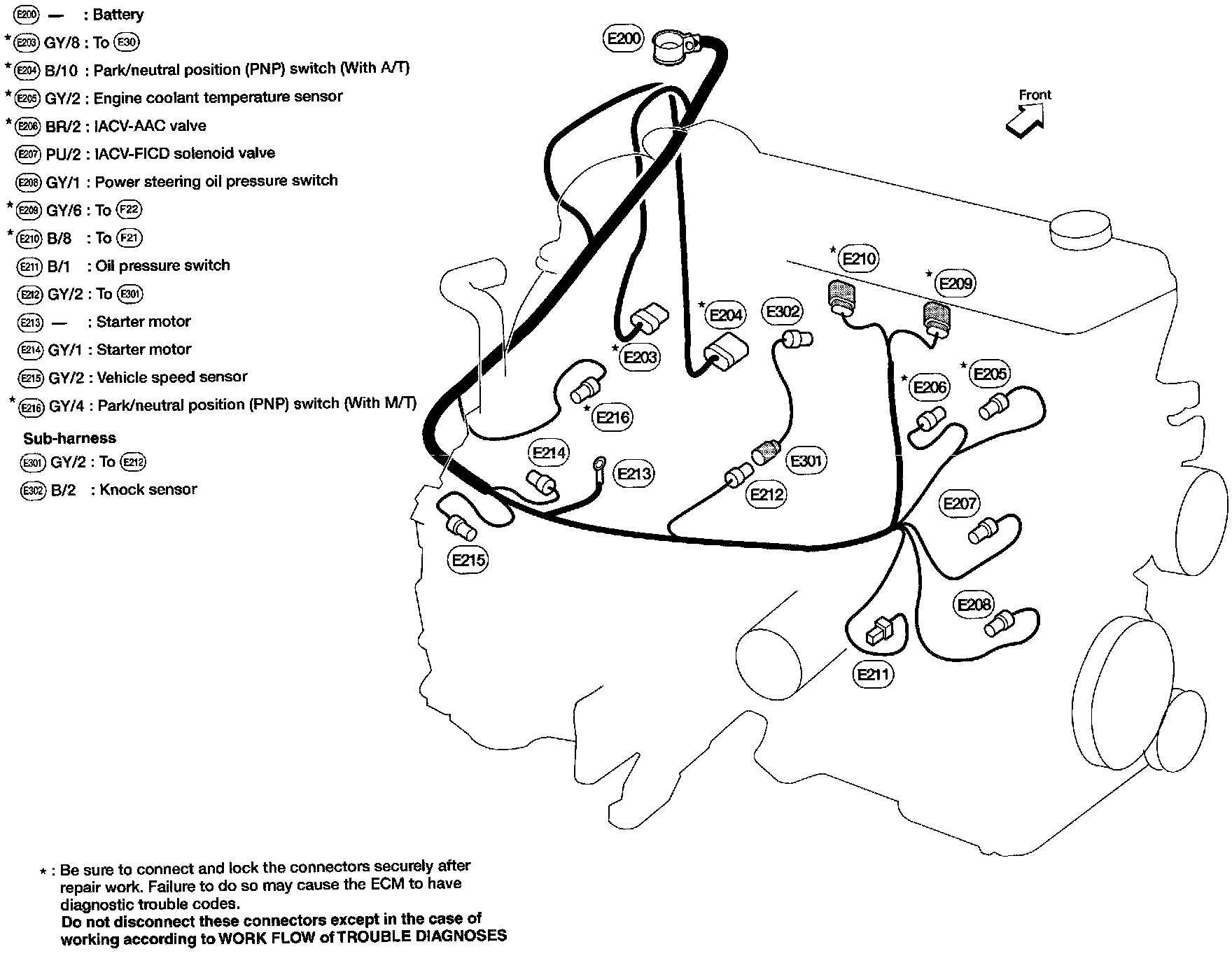

Engine Harness No. 2





Engine No. 2 Harness
