Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Crankshaft Position Sensor
Crankshaft Position Sensor

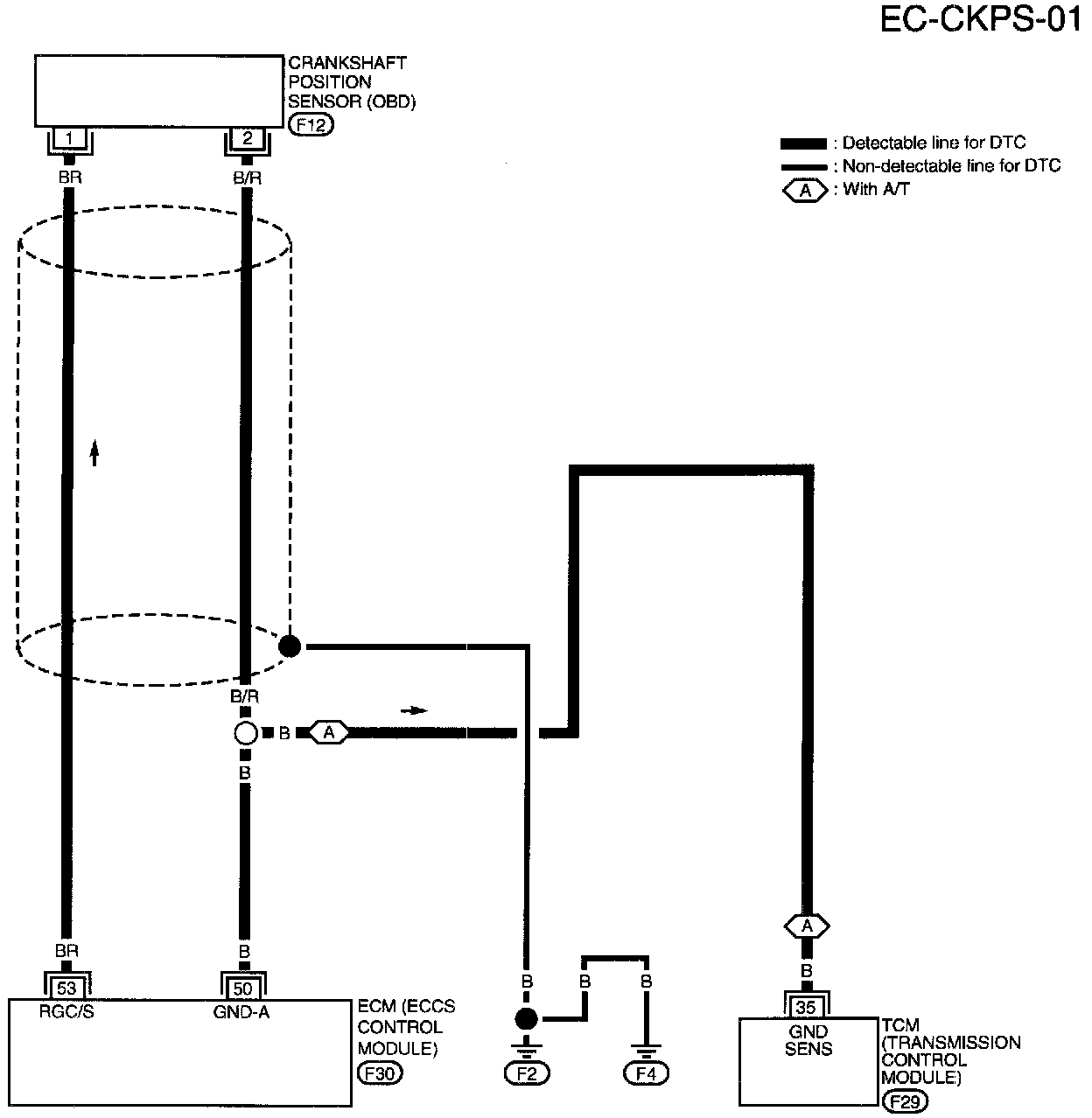

Circuit Diagram (OBD)
Circuit Connectors (OBD)
