Models Without Power Door Locks

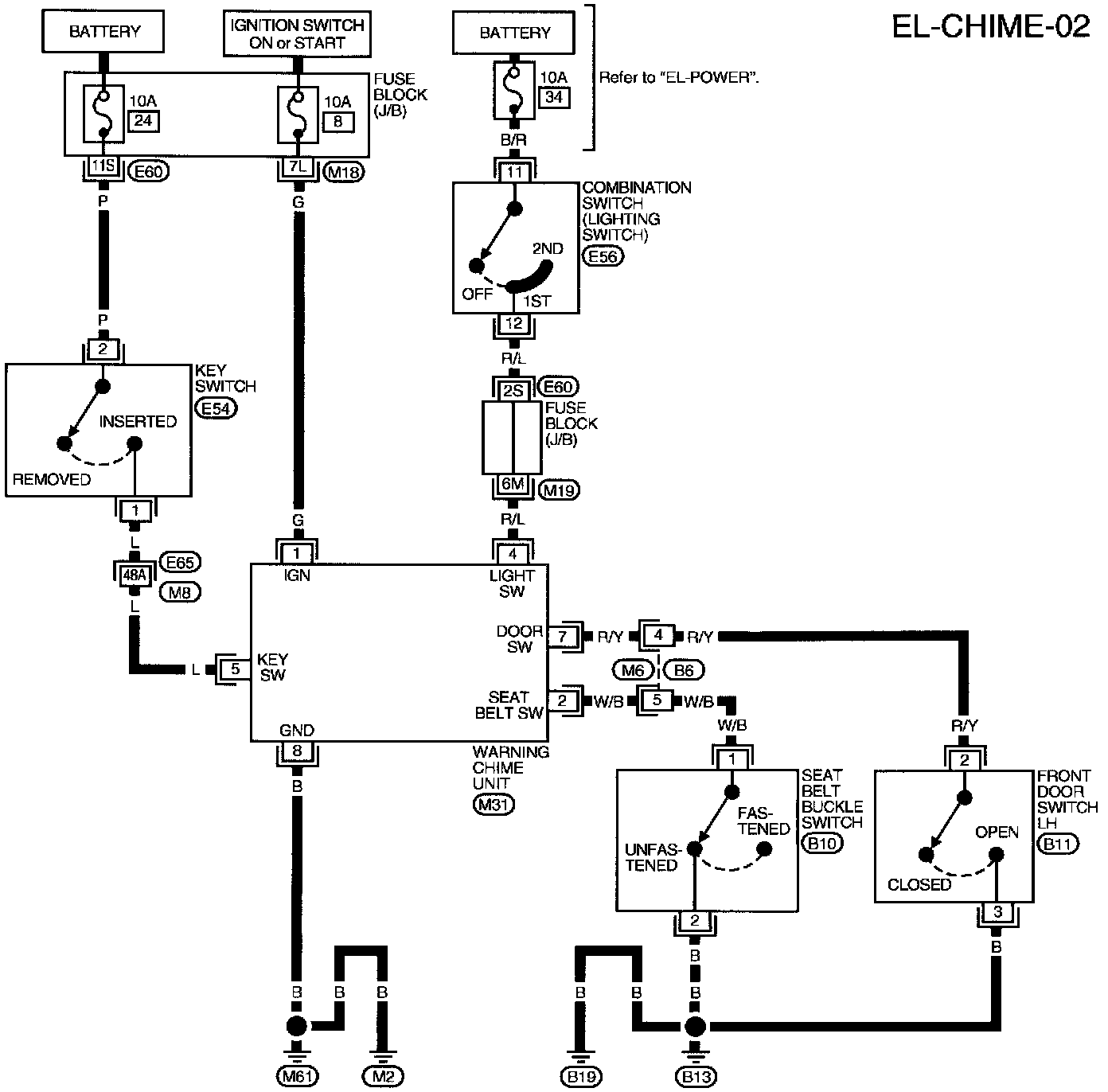

Circuit Diagram

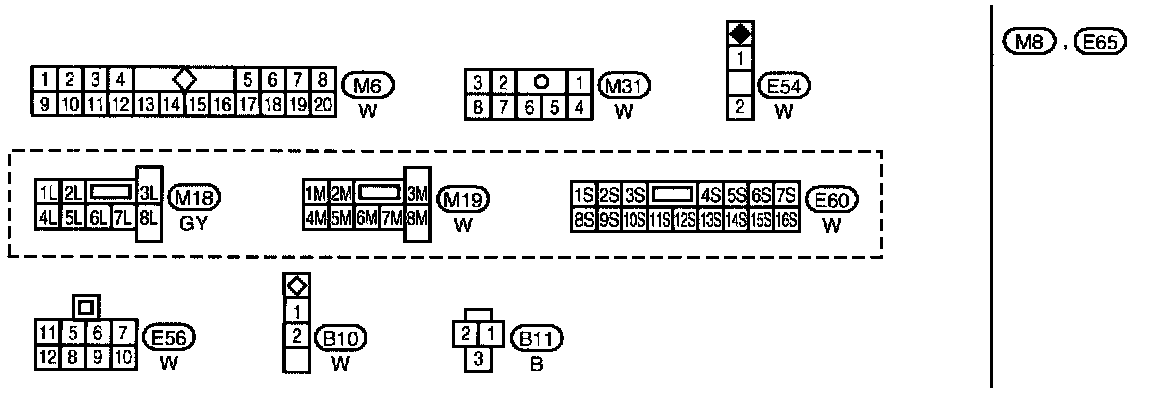

Circuit Connectors





M8, E65 Main Harness And Engine Room Harness Terminal Arrangement
