Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
EL Diagrams
>>
EL-MIRROR
EL-MIRROR

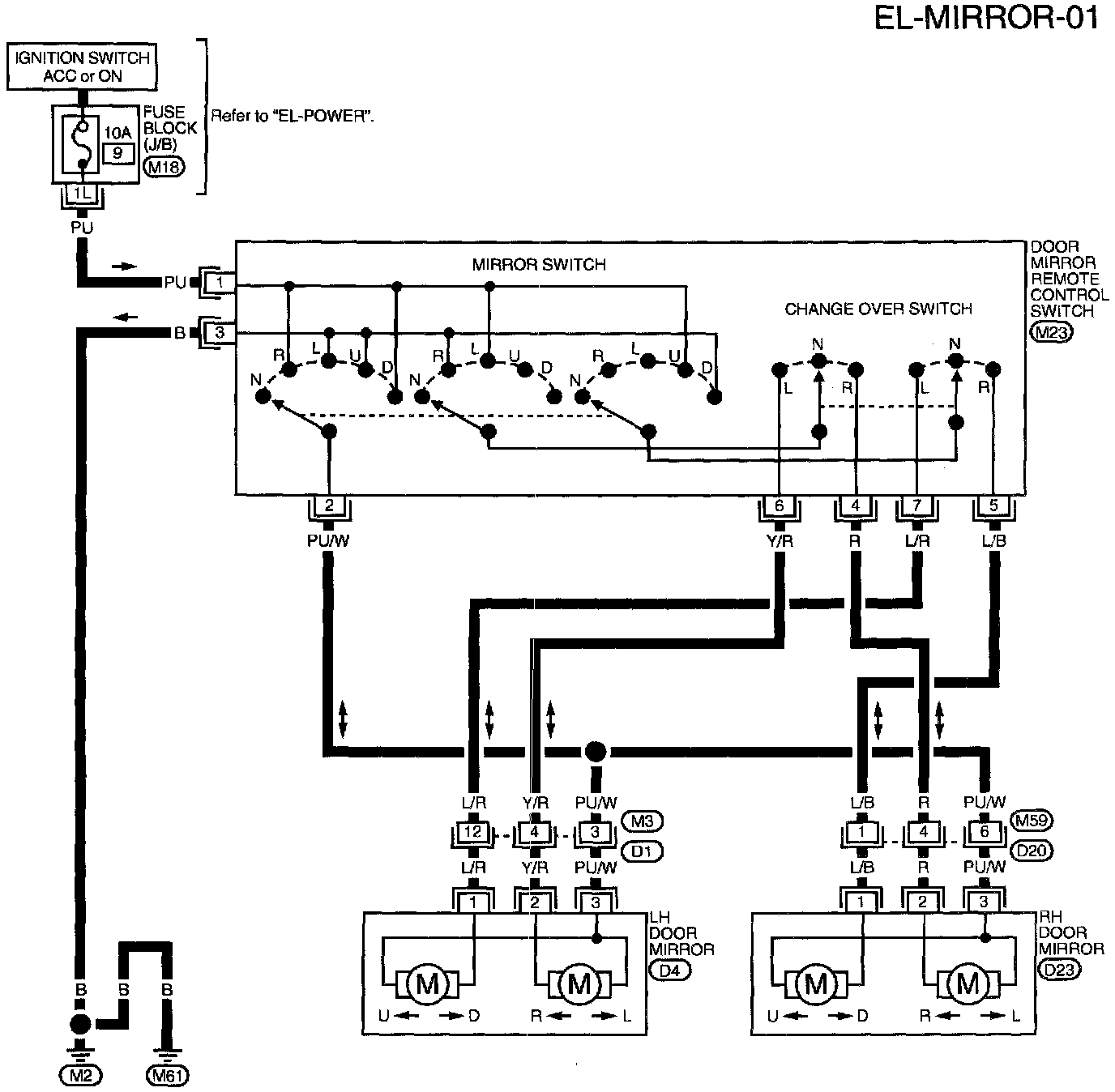

EL-MIRROR-01

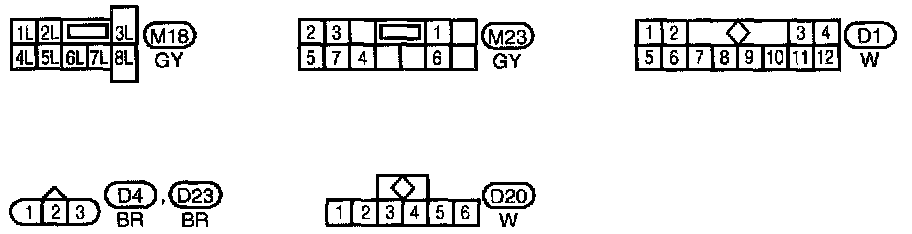

Circuit Connectors
