Home >> Nissan-Datsun >> 1999 >> Altima XE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> EC Diagrams >> EC-VSS

EC-VSS

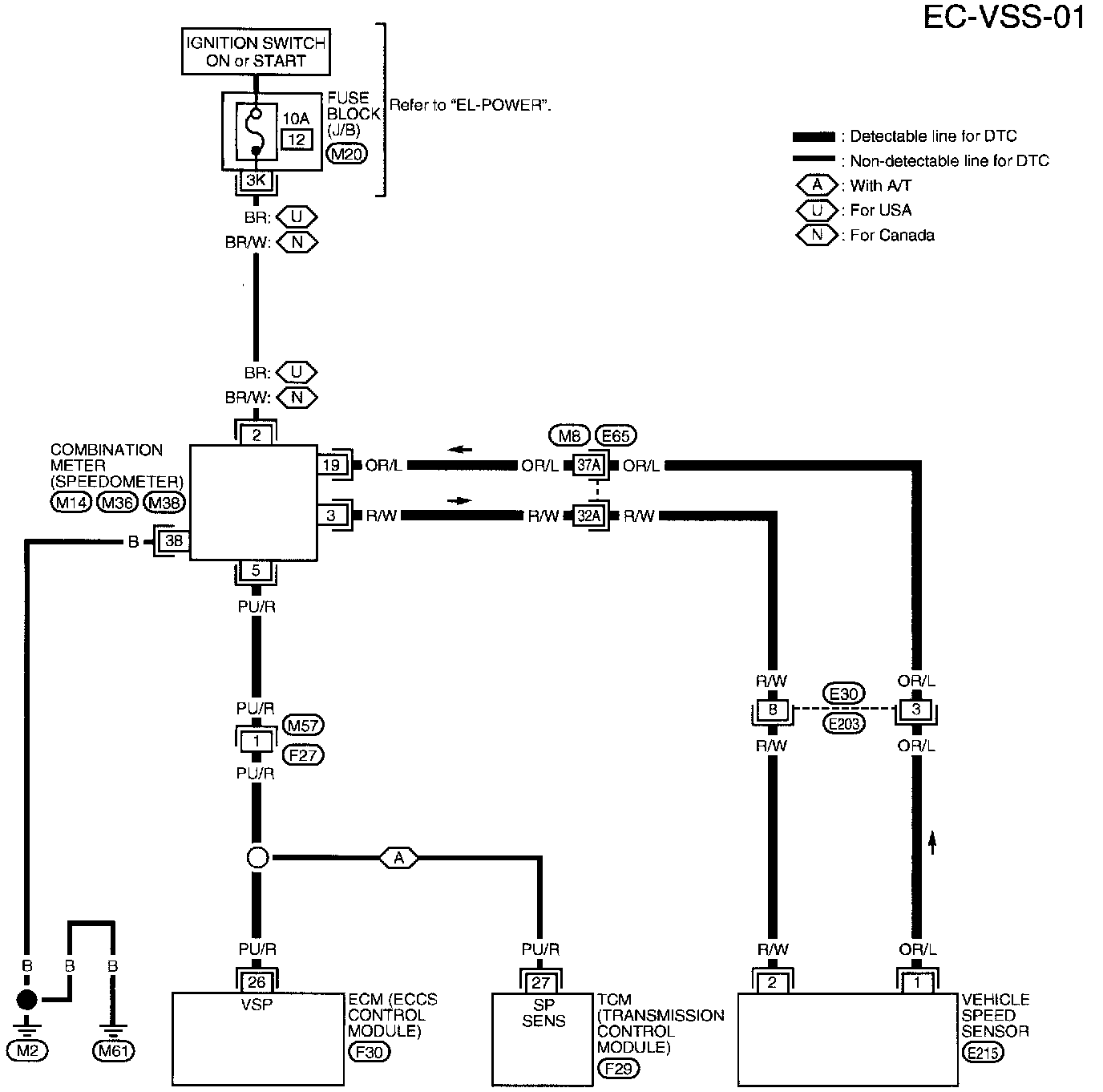

EC-VSS-01




Circuit Connectors




M8, E65 Main Harness And Engine Room Harness Terminal Arrangement




F29, F30 Terminal Arrangement
