Home >> Nissan-Datsun >> 1999 >> Altima XE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> EC Diagrams >> EC-RRO2

EC-RRO2

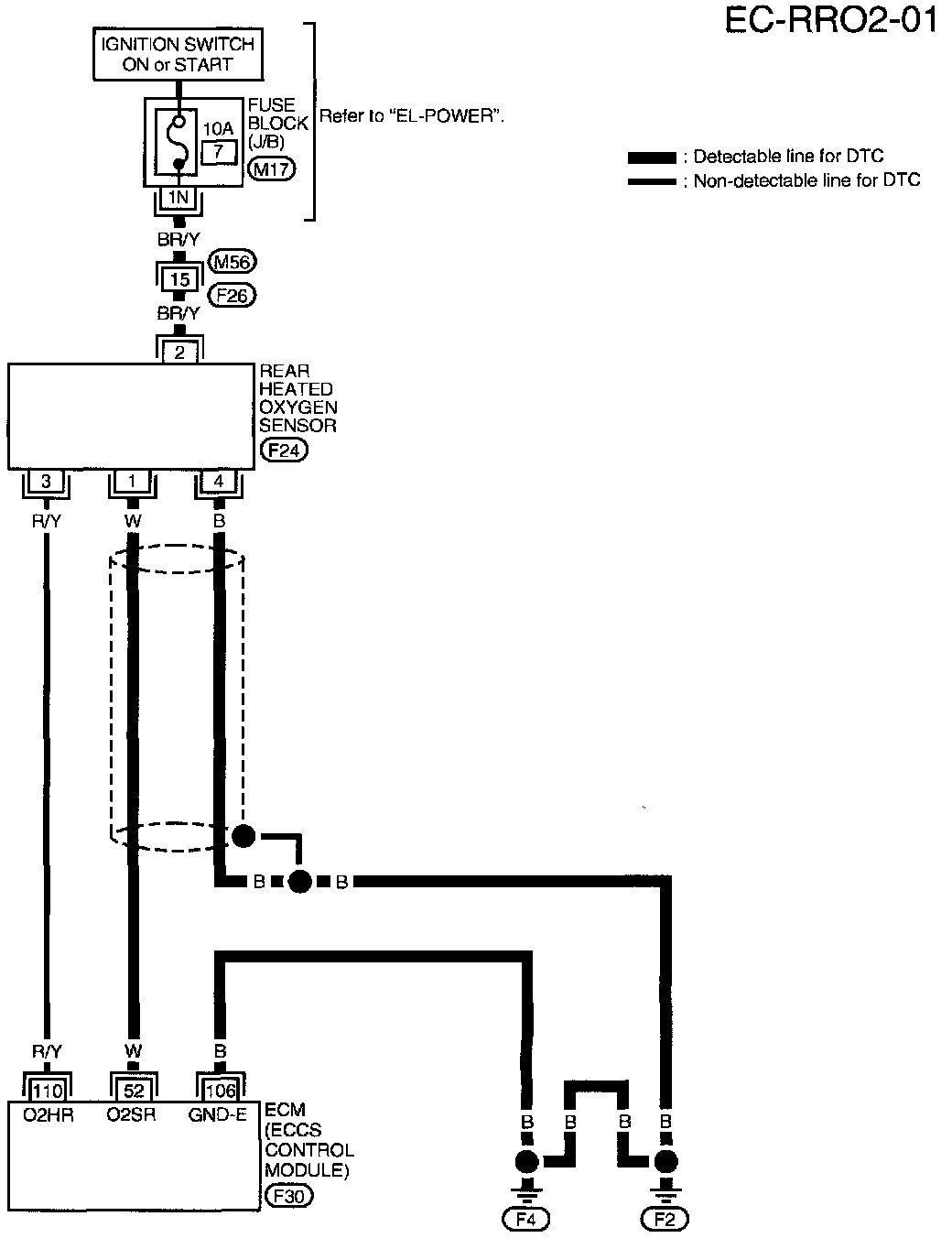

EC-RRO2-01




Circuit Connectors
