Home >> Nissan-Datsun >> 1999 >> Altima XE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Dome Lamp >> Models With Power Door Locks

Models With Power Door Locks

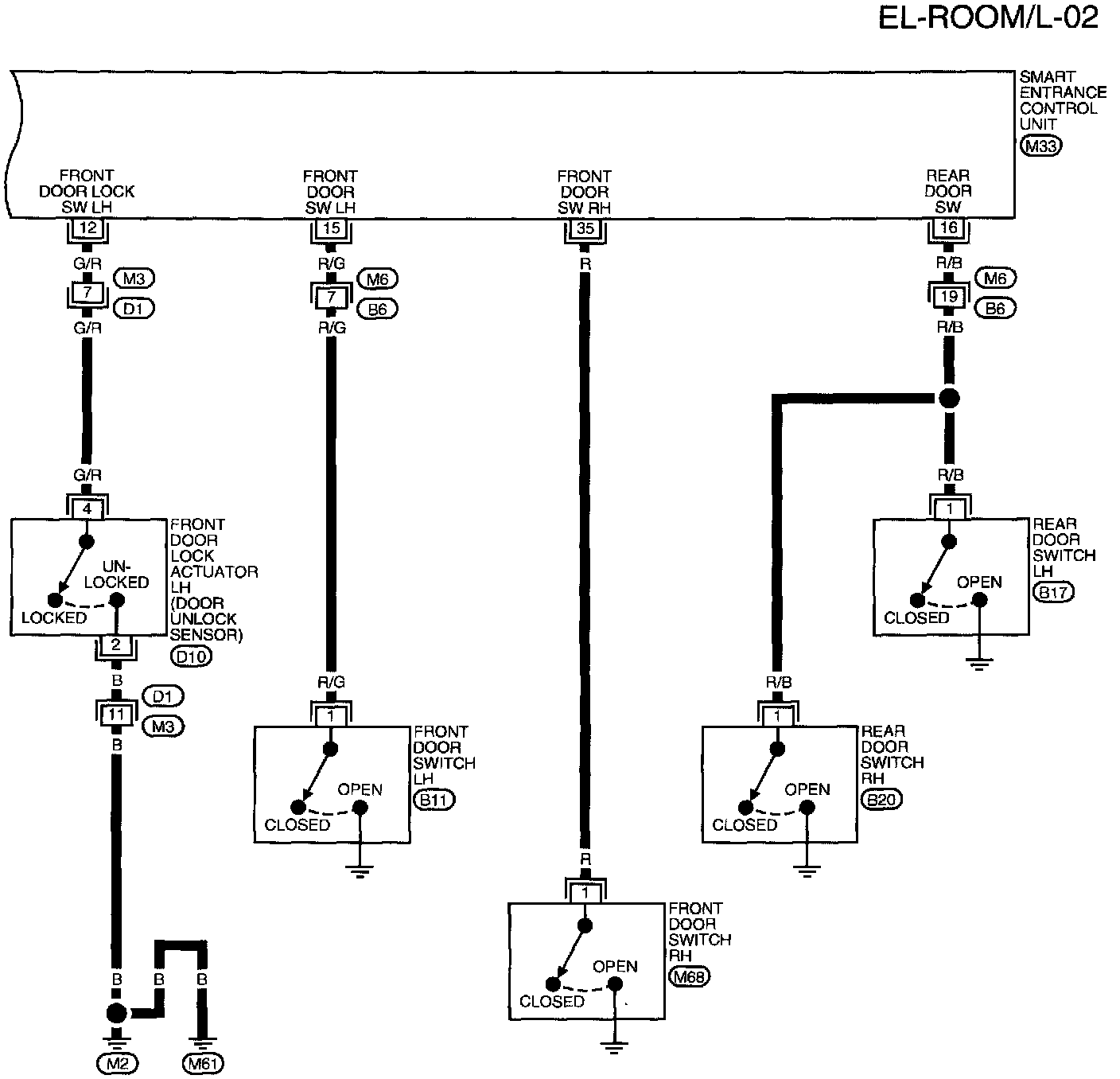

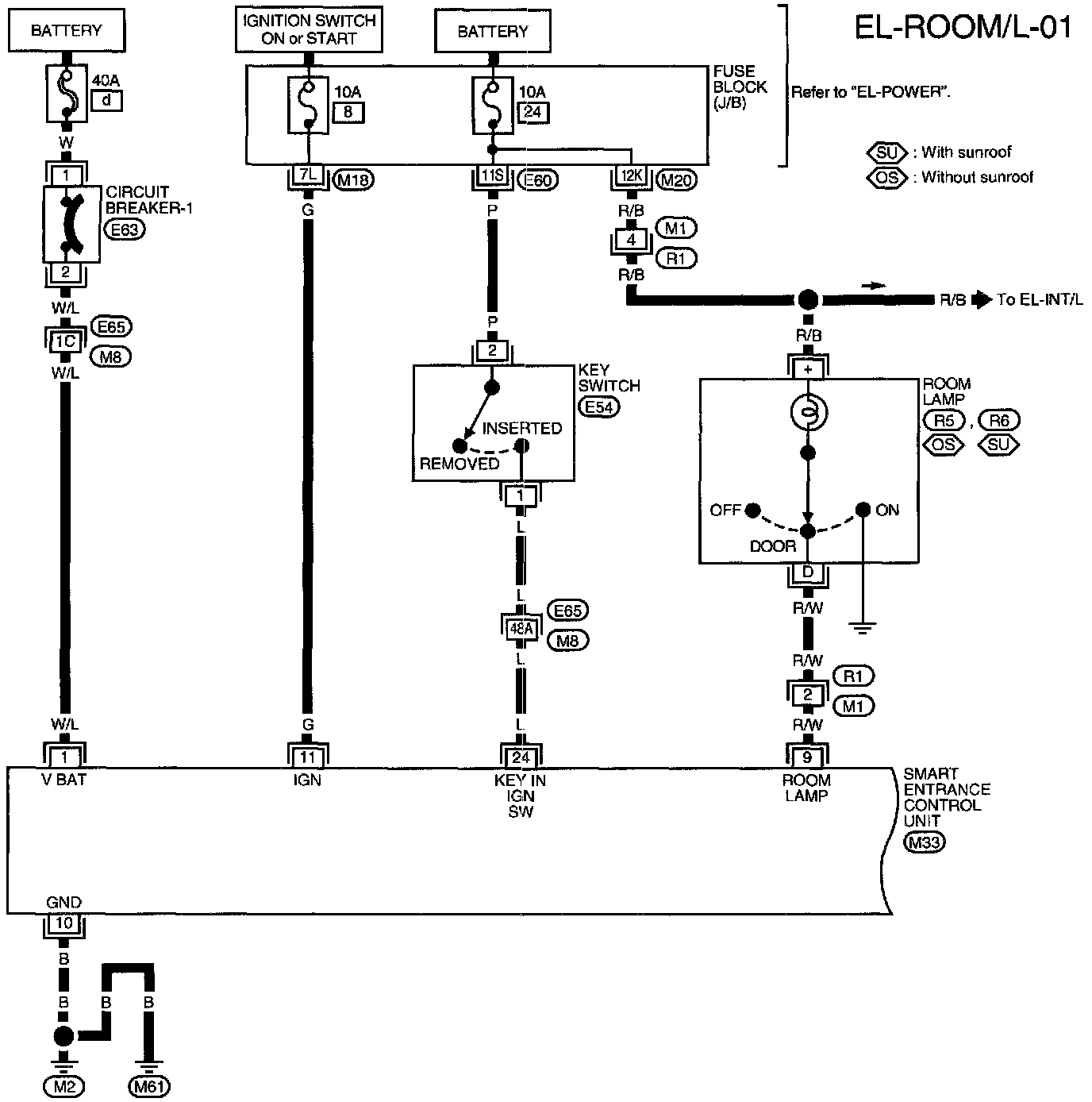

Circuit Diagrams








Circuit Connectors
