Home
>>
Nissan-Datsun
>>
1999
>>
Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
AT Diagrams
>>
AT-SSV/B
AT-SSV/B

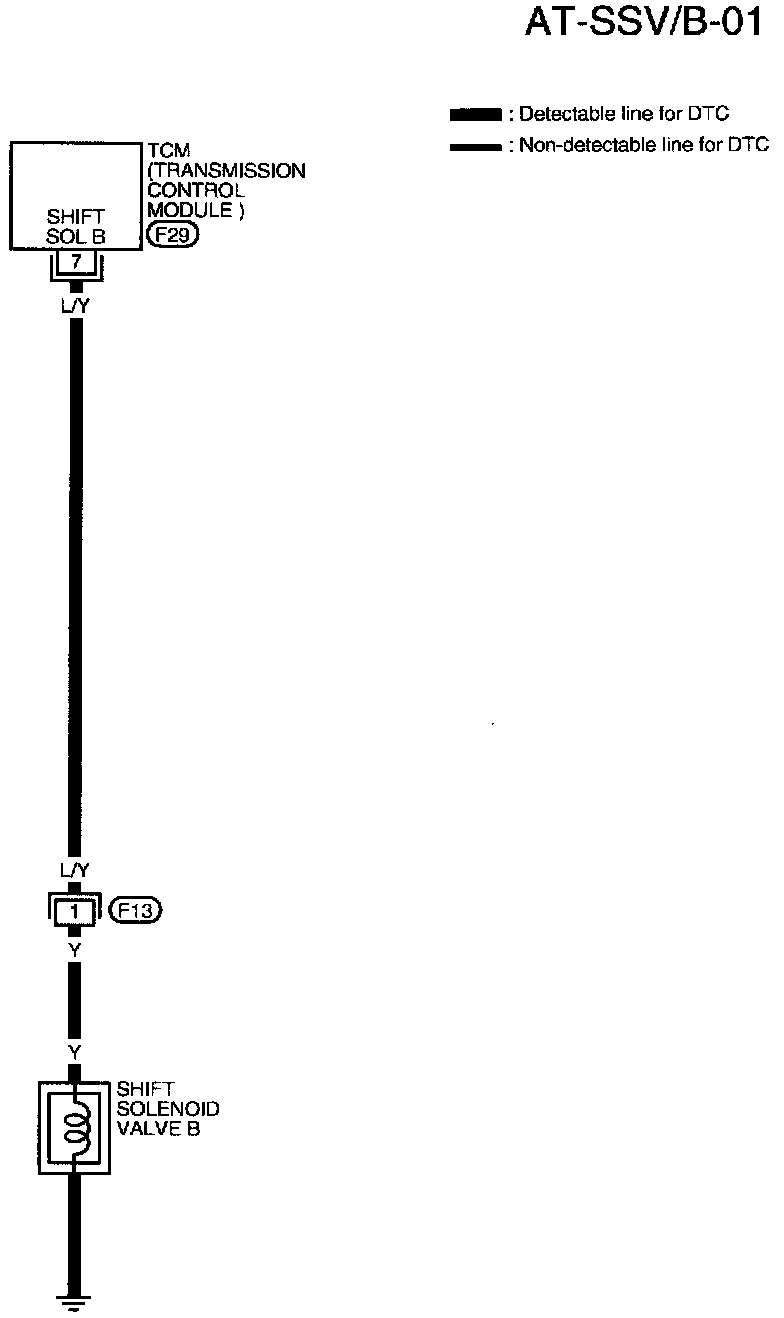

AT-SSV/B-01
Circuit Connectors
