Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
AT Diagrams
>>
AT-SSV/A
AT-SSV/A

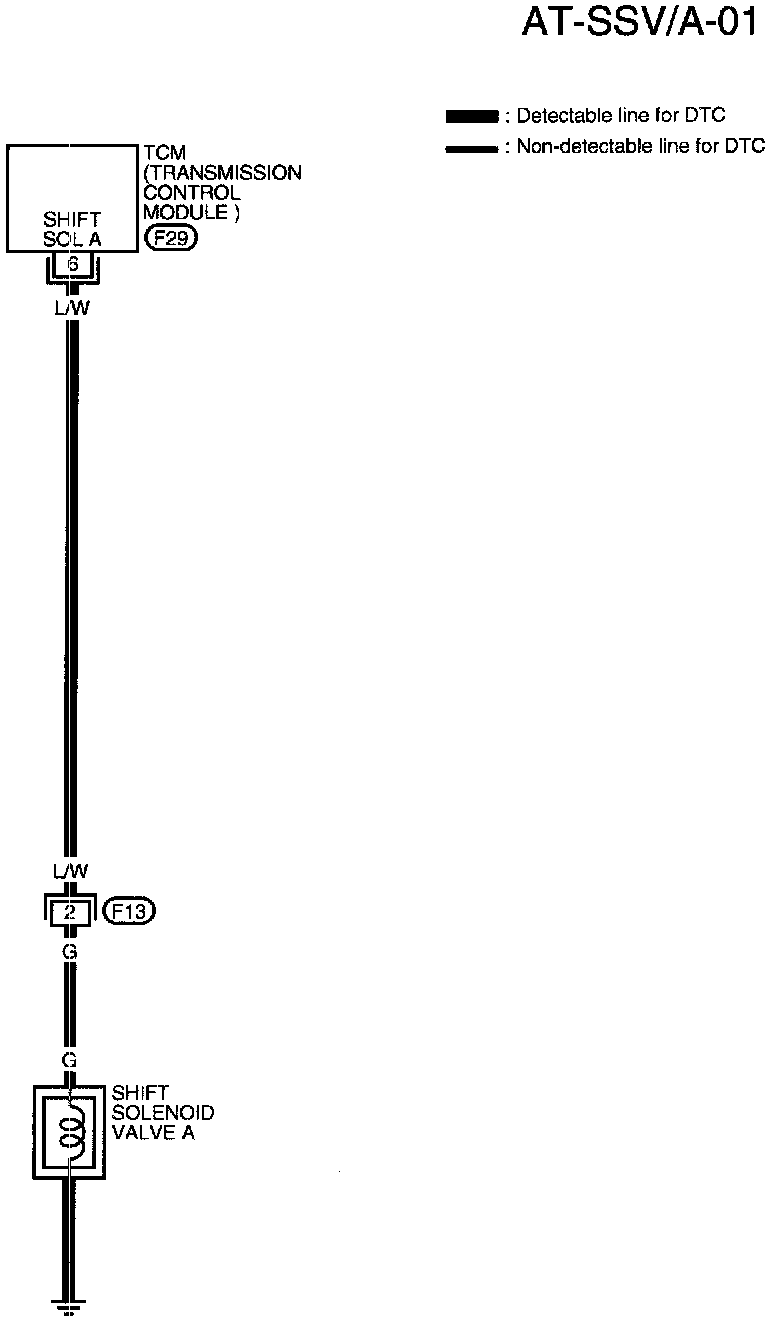

AT-SSV/A-01

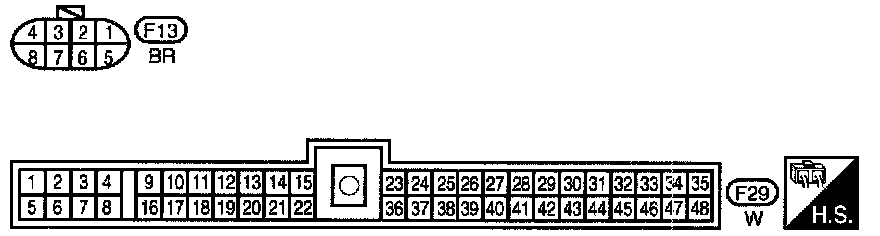

Circuit Connectors
