Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
AT Diagrams
>>
AT-PNP/SW
AT-PNP/SW

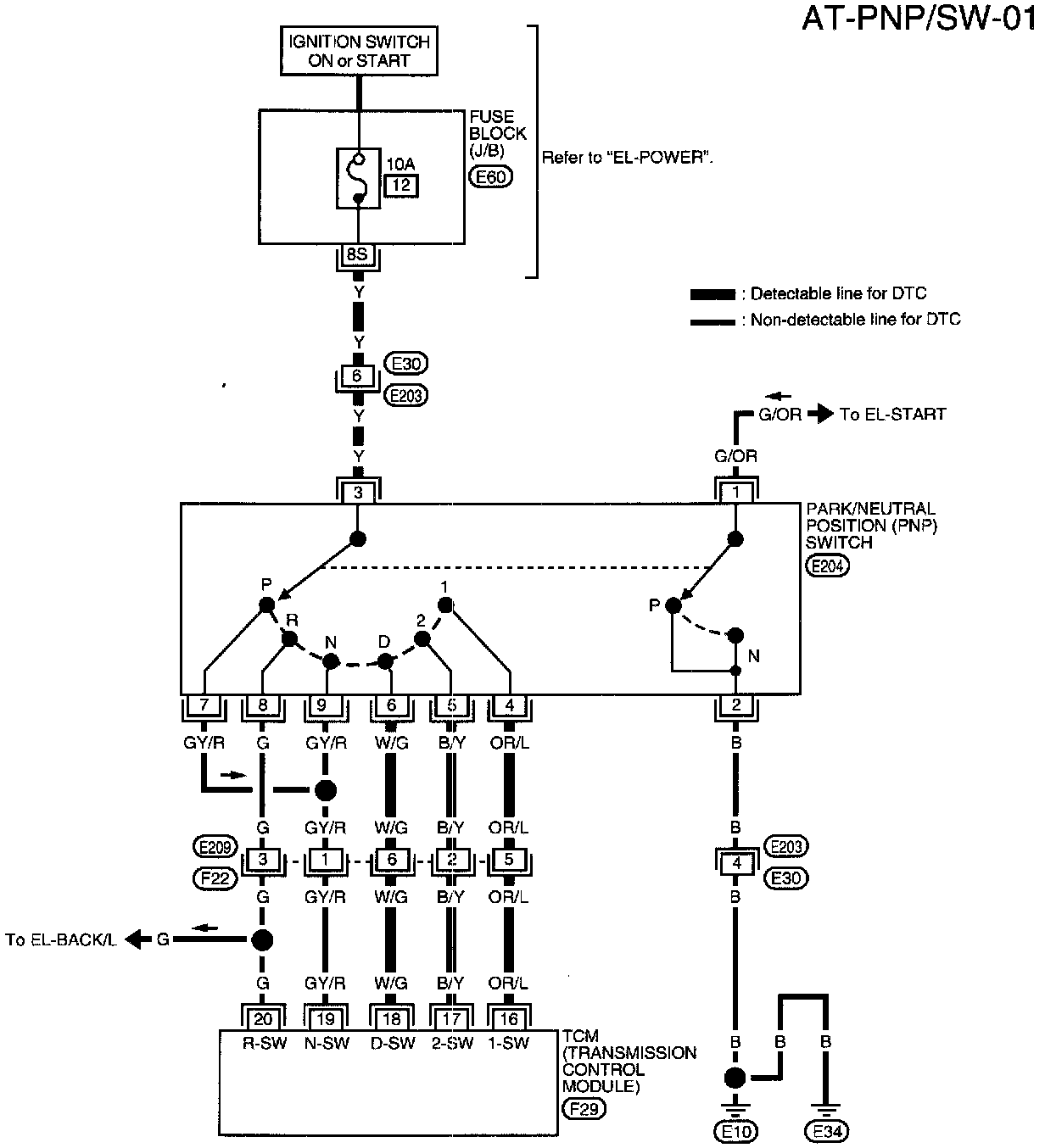

AT-PNP/SW-01

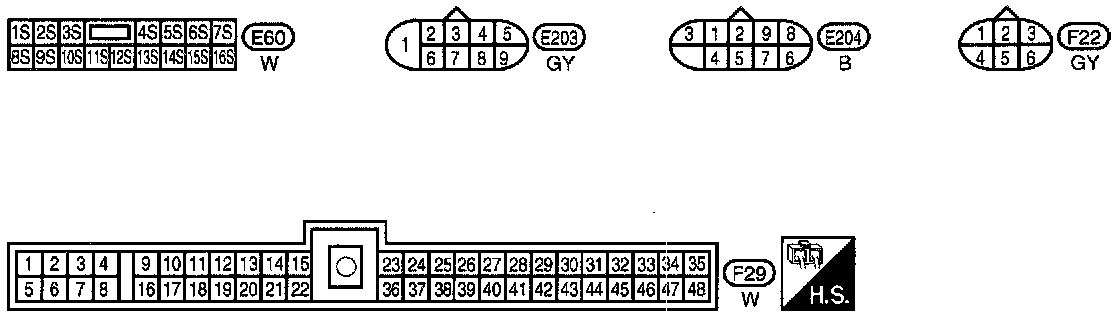

Circuit Connectors
