Vacuum Brake Booster: Testing and Inspection

OPERATING CHECK

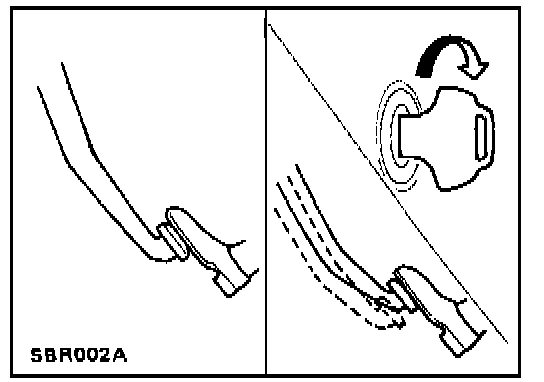

- Depress brake pedal several times with engine off. After exhausting vacuum, make sure there is no change in pedal stroke.
- Depress brake pedal, then start engine. If pedal goes down slightly, booster operation is normal.

AIRTIGHT CHECK

Testing Brake Booster:

- Start engine, and stop it after one or two minutes. Depress brake pedal several times slowly. Booster is airtight if pedal stroke is less each time.
- Depress brake pedal while engine is running, and stop engine with pedal depressed. The pedal stroke should not change after holding pedal down 30 seconds.
