Vacuum Hose Replacement

REMOVAL AND INSTALLATION








CAUTION: When installing vacuum hoses, pay attention to the following points:
^ Do not apply any oil or lubricants to vacuum hose and check valve.

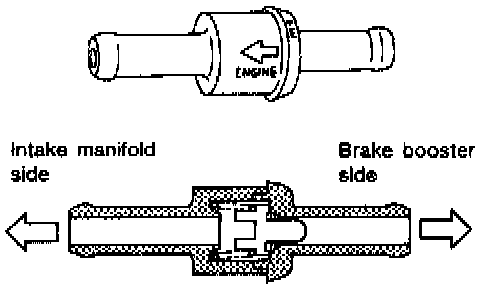

^ Insert vacuum tube into vacuum hose as shown.
^ Install check valve, paying attention to its direction.

INSPECTION
HOSES AND CONNECTORS
Check vacuum lines, connections and check valve for airtightness, improper attachment, chafing or deterioration.
