DISASSEMBLY

WARNING: Do not place your fingers in front of piston.

CAUTION: Do not scratch or score cylinder wall.

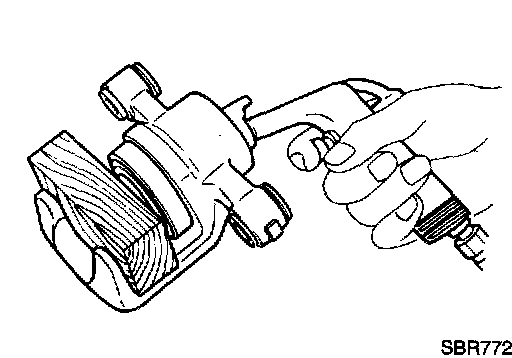

1. Push out piston and dust seal with compressed air.
2. Remove piston seal with a suitable tool.

INSPECTION
Cylinder Body
- Check inside surface of cylinder for scores, rust, wear, damage or presence of foreign objects. If any of these conditions are observed, replace cylinder body.
- Minor damage from rust or foreign objects may be eliminated by polishing surface with a fine emery paper. Replace cylinder body if necessary.

CAUTION: Use brake fluid to clean. Never use mineral oil.

Piston
Check piston for scores, rust, wear, damage or presence of foreign objects. Replace if any of these conditions are observed.

CAUTION: Piston sliding surface is plated. Do not polish with emery paper even if rust or foreign objects are stuck to sliding surface.

Slide Pin, Pin Bolt And Pin Boot
Check for wear, cracks, rust or other damage. Replace if any of these conditions are observed.

ASSEMBLY





1. Insert piston seal into groove on cylinder body.
2. With piston boot fitted to piston, insert piston boot into groove on cylinder body and install piston.
3. Properly secure piston boot.
