Without CONSULT Scan Tool

FUNCTION

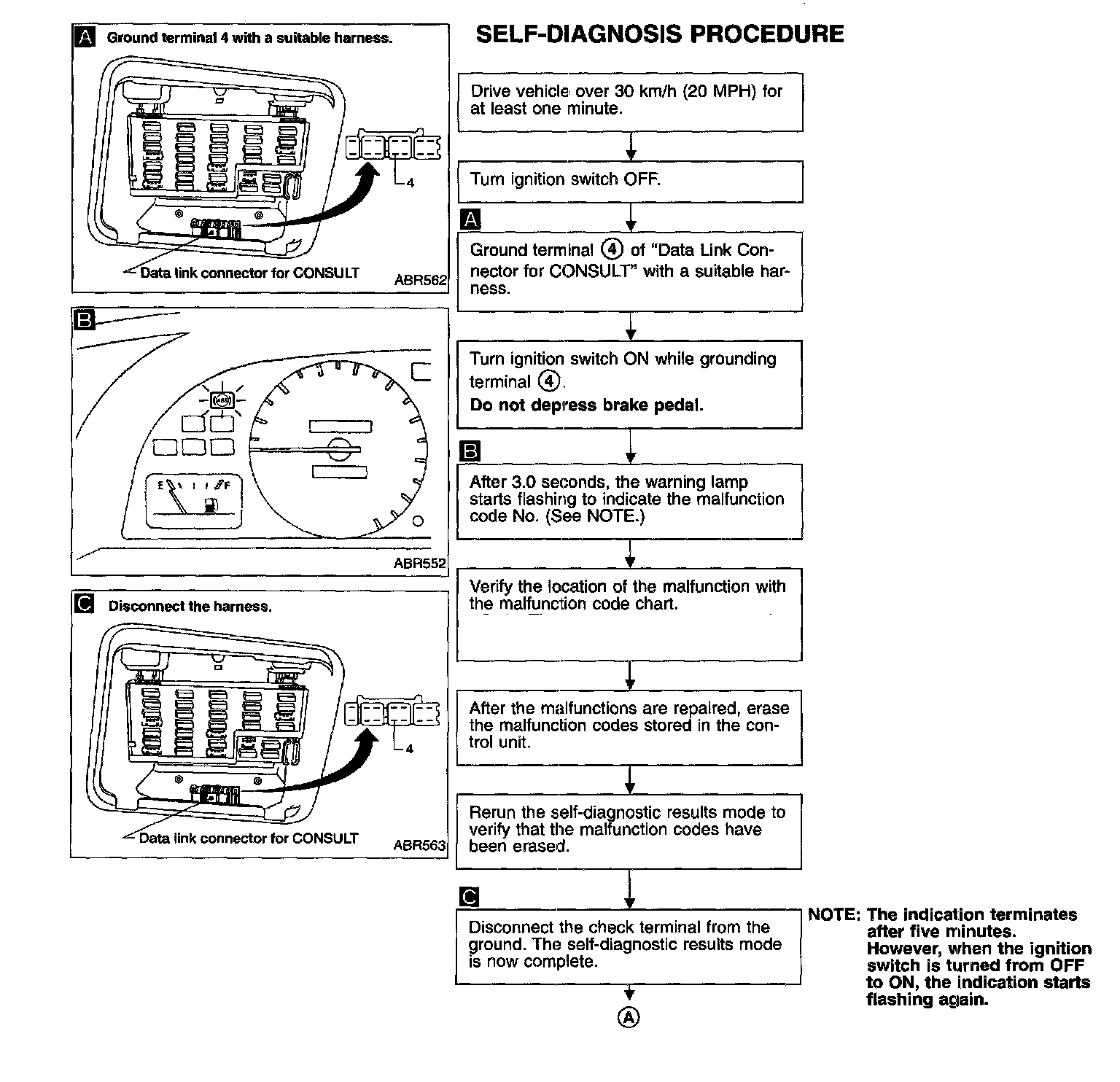

- When a problem occurs in the Anti-lock Brake System (ABS), the warning lamp on the instrument panel comes on. To start the self-diagnostic results mode, ground the self-diagnostic (check) terminal located on the "Data Link Connector for CONSULT". The location of the malfunction is indicated by the warning lamp flashing on the instrument panel.
