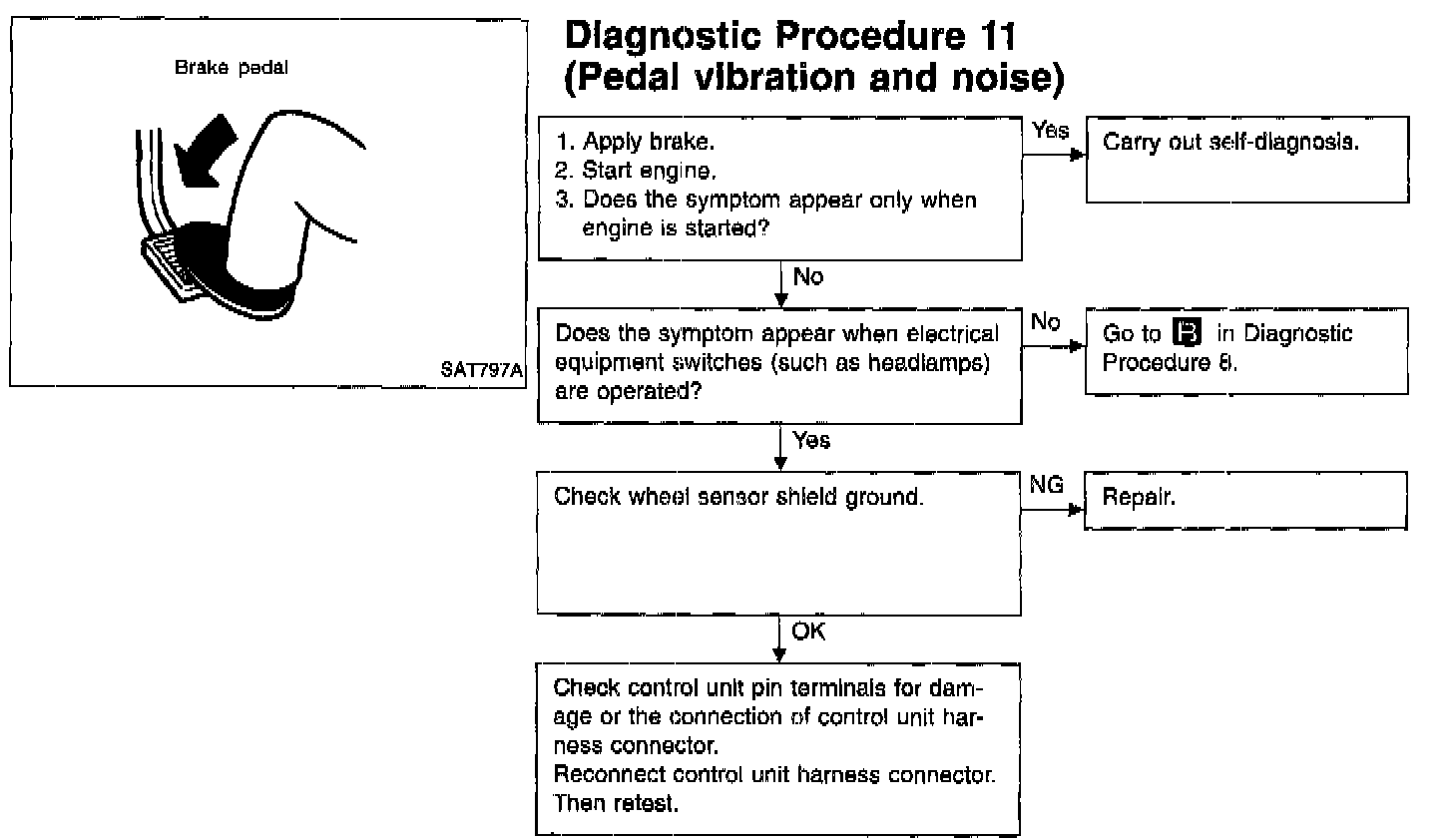

Diagnostic Test Procedure 11






NOTE: Anti-lock Brake System (ABS) may operate and cause vibration under the following conditions:
^ Applying brake gradually when shifting or operating clutch.
^ Low friction (slippery) road.
^ High speed cornering.
^ Driving over bumps and pot holes.
^ Engine speed is over 5,000 rpm with vehicle stopped.
