Radio/Stereo: Testing and Inspection

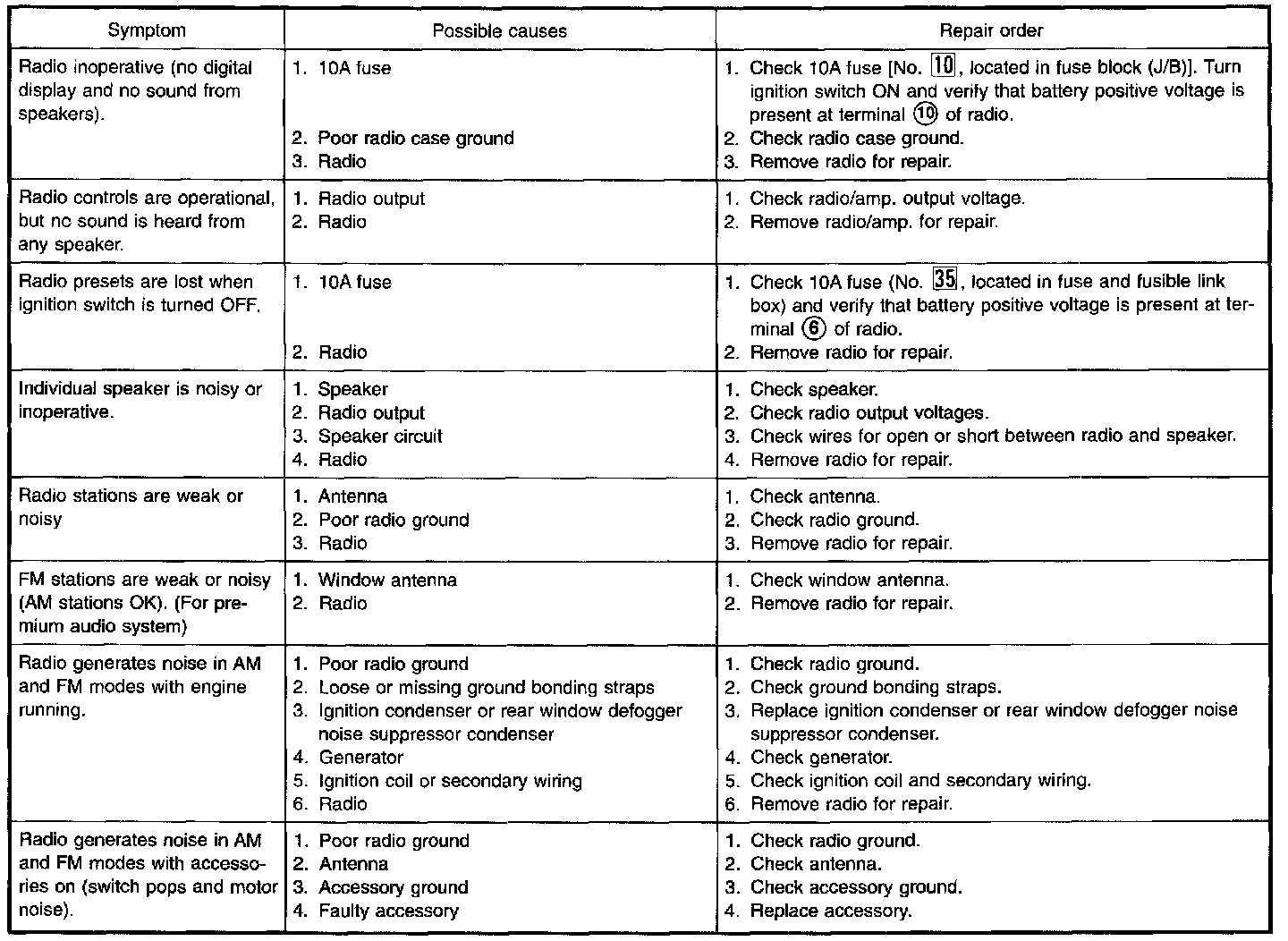

Trouble Diagnoses

Radio Inspection
All voltage inspections are made with:
^ Ignition switch ON or ACC
^ Radio ON
^ Radio connected (If removed for inspection, supply a ground to the case using a jumper wire).
