Component Tests and General Diagnostics

CONSULT INSPECTION PROCEDURE

1. Turn ignition switch "OFF".

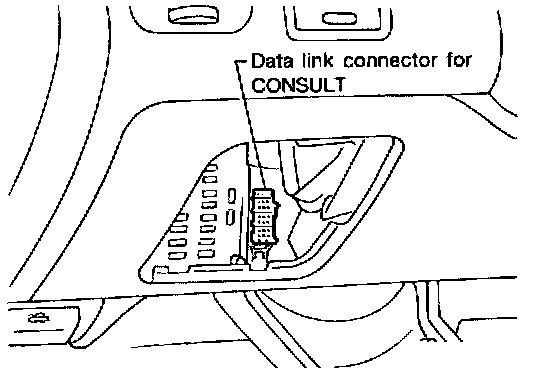

2. Connect "CONSULT" to the data link connector.
3. Turn ignition switch "ON".

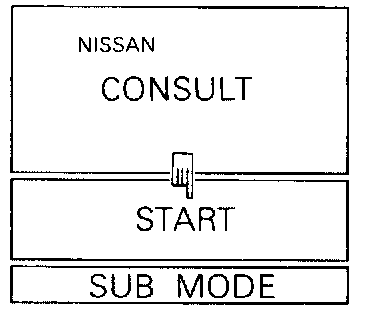

4. Touch "START".

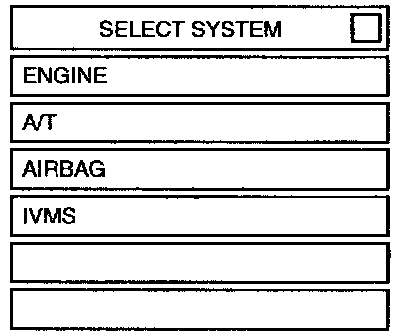

5. Touch "IVMS".

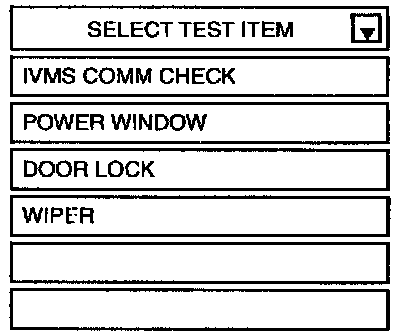

6. Touch "WIPER".

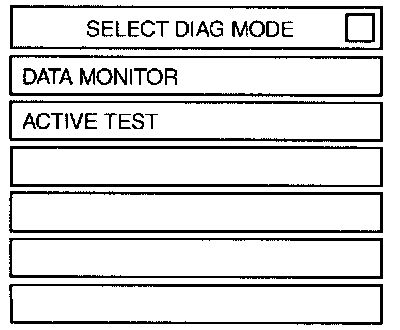

^ DATA MONITOR and ACTIVE TEST are available for the wiper and washer.

DIAGNOSTIC PROCEDURE

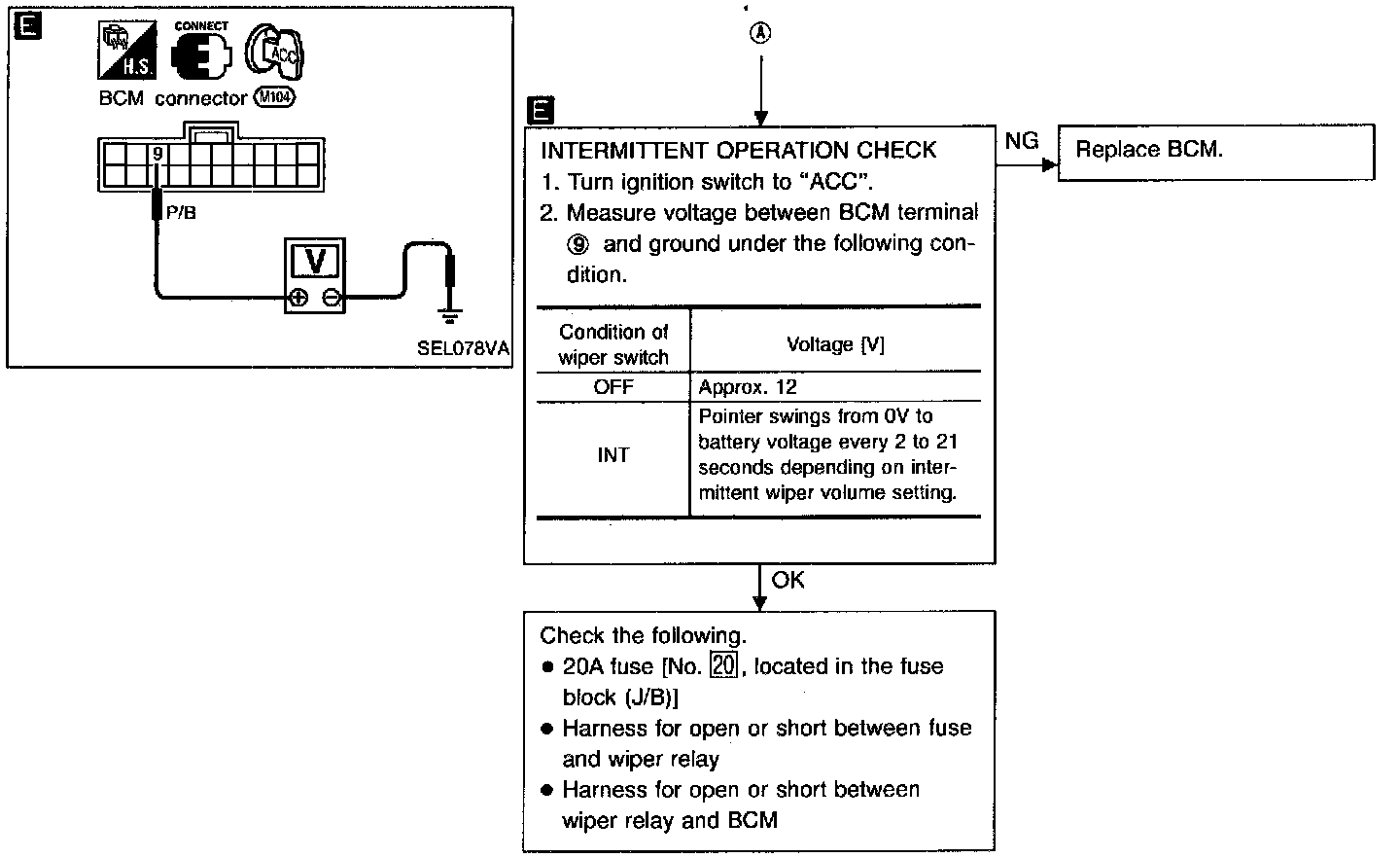

SYMPTOM: Intermittent wiper does not operate.

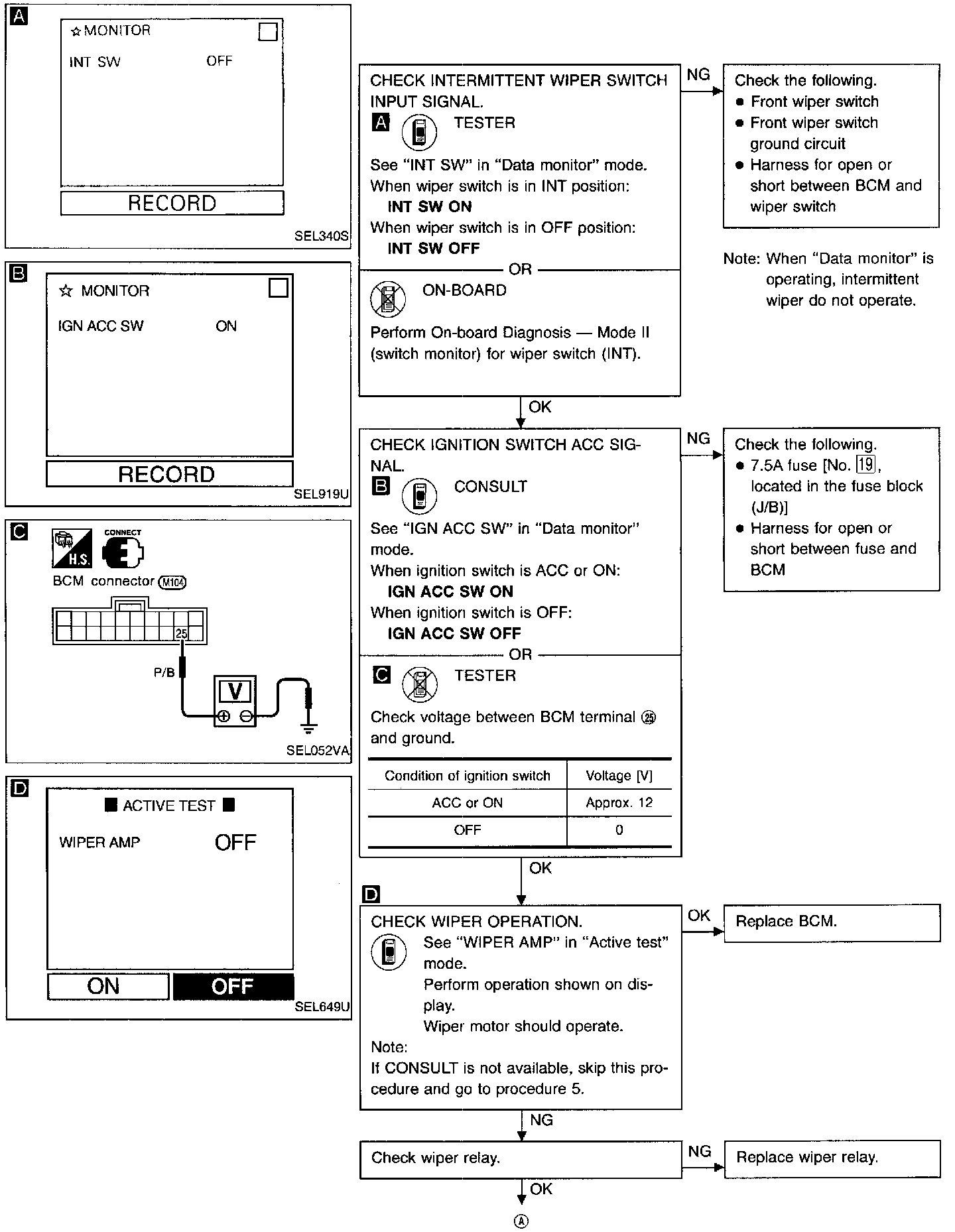

Diagnostic Procedure 1





SYMPTOM: Intermittent time of wiper can not be adjusted.

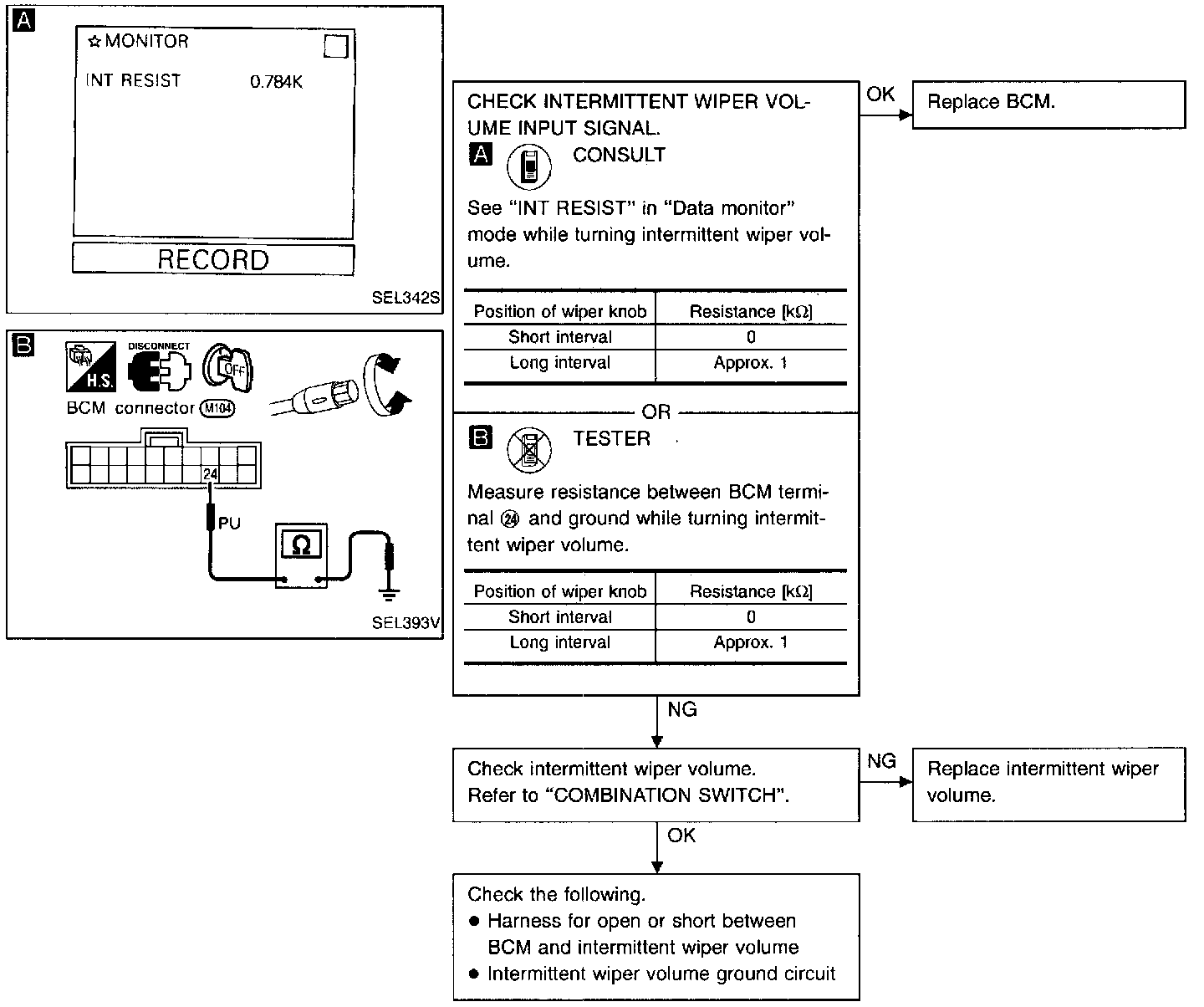

Diagnostic Procedure 2






SYMPTOM: Wiper and washer activate individually but no in combination.

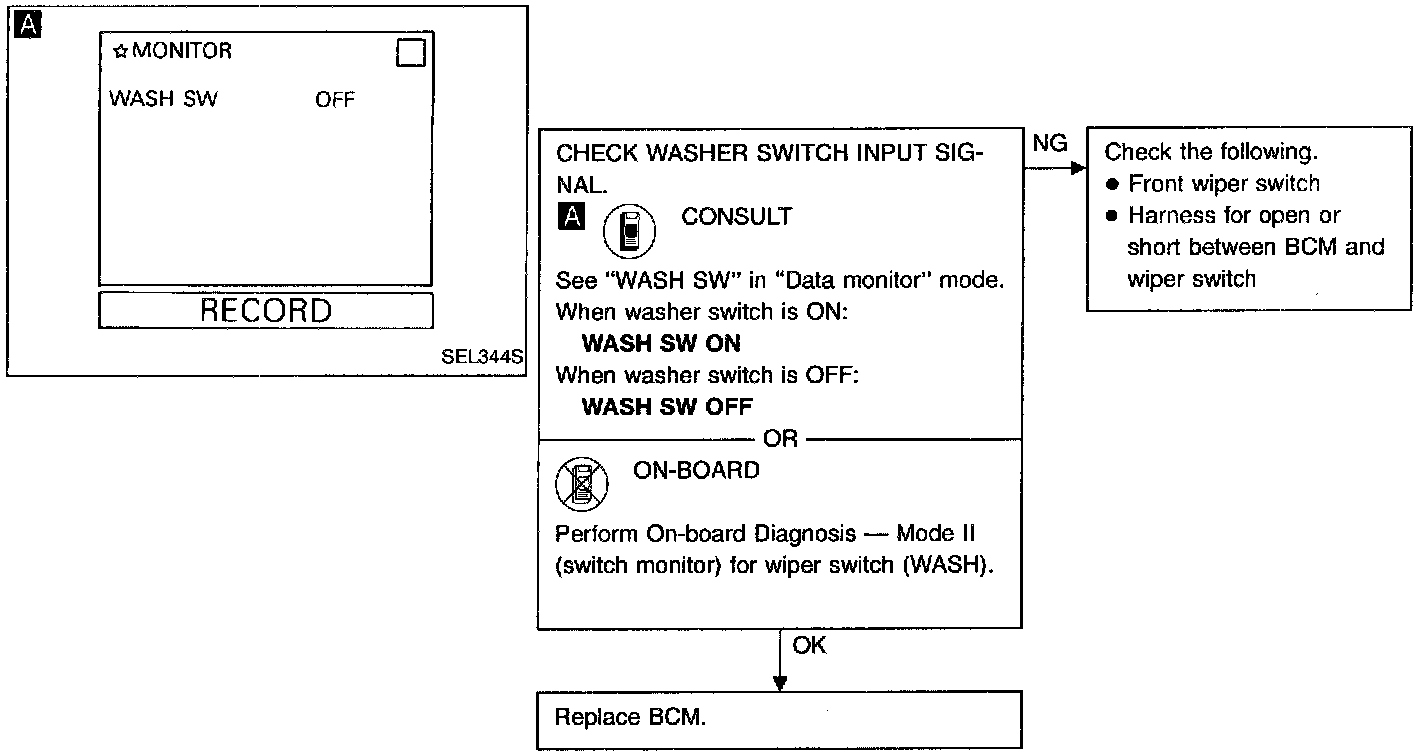

Diagnostic Procedure 3
