Rear Power Window Switch Illumination - IVMS

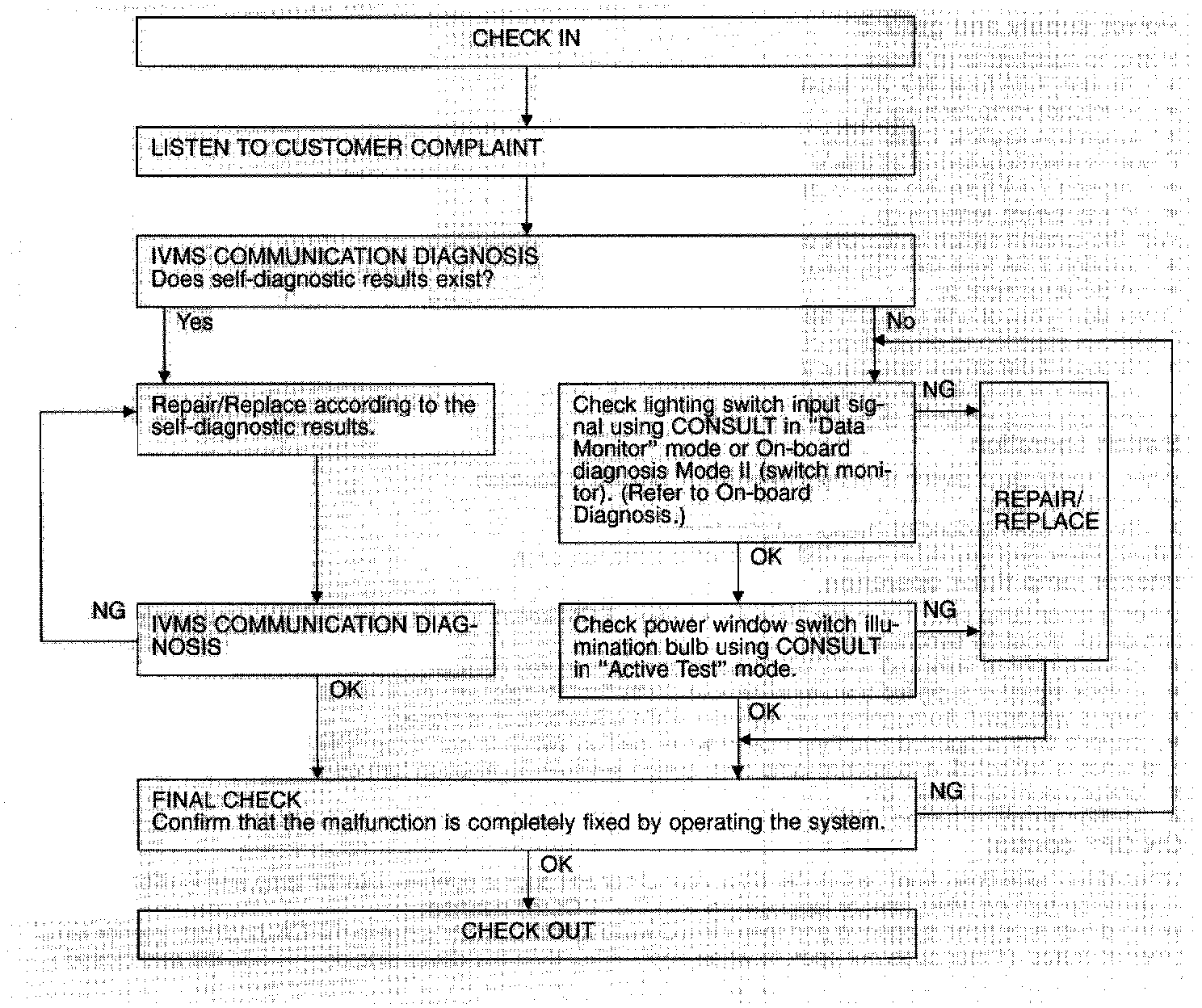

FLOW OF DIAGNOSIS





NOTE:
^ When Local Control Unit (LCU) connectors are disconnected for more than 1 minute such as during trouble diagnosis the "disconnected" data will be memorized by the Body Control Module (BCM). Therefore, after reconnecting the LCU connectors erase the memory.
^ To erase the memory, perform the procedure below.
Erase the memory with CONSULT or remove turn the Ignition switch to "OFF" position and remove 7.5 A fuse (No. (56), located in the fuse and fusible link box).
