Component Tests and General Diagnostics

CONSULT INSPECTION PROCEDURE

1. Turn ignition switch "OFF".

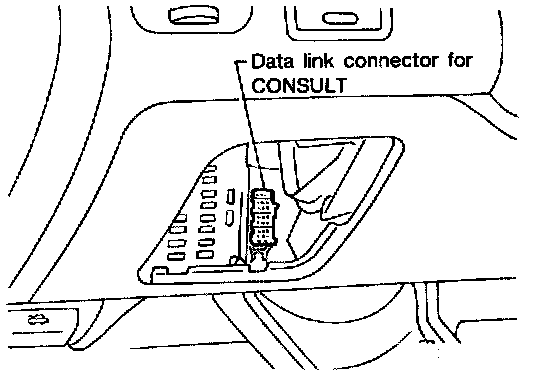

2. Connect "CONSULT" to the data link connector.
3. Turn ignition switch "ON".

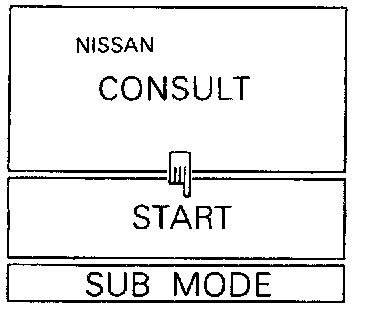

4. Touch "START".

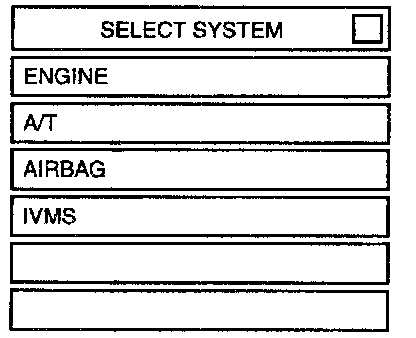

5. Touch "IVMS".





6. Touch "ILLUM LAMP".

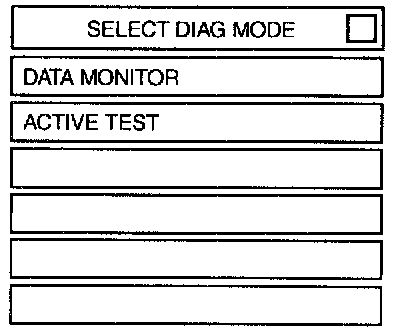

^ DATA MONITOR and ACTIVE TEST are available for the illumination.

TROUBLE DIAGNOSIS
