FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
1998
>>
Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Rear Defogger
>>
Diagrams
>>

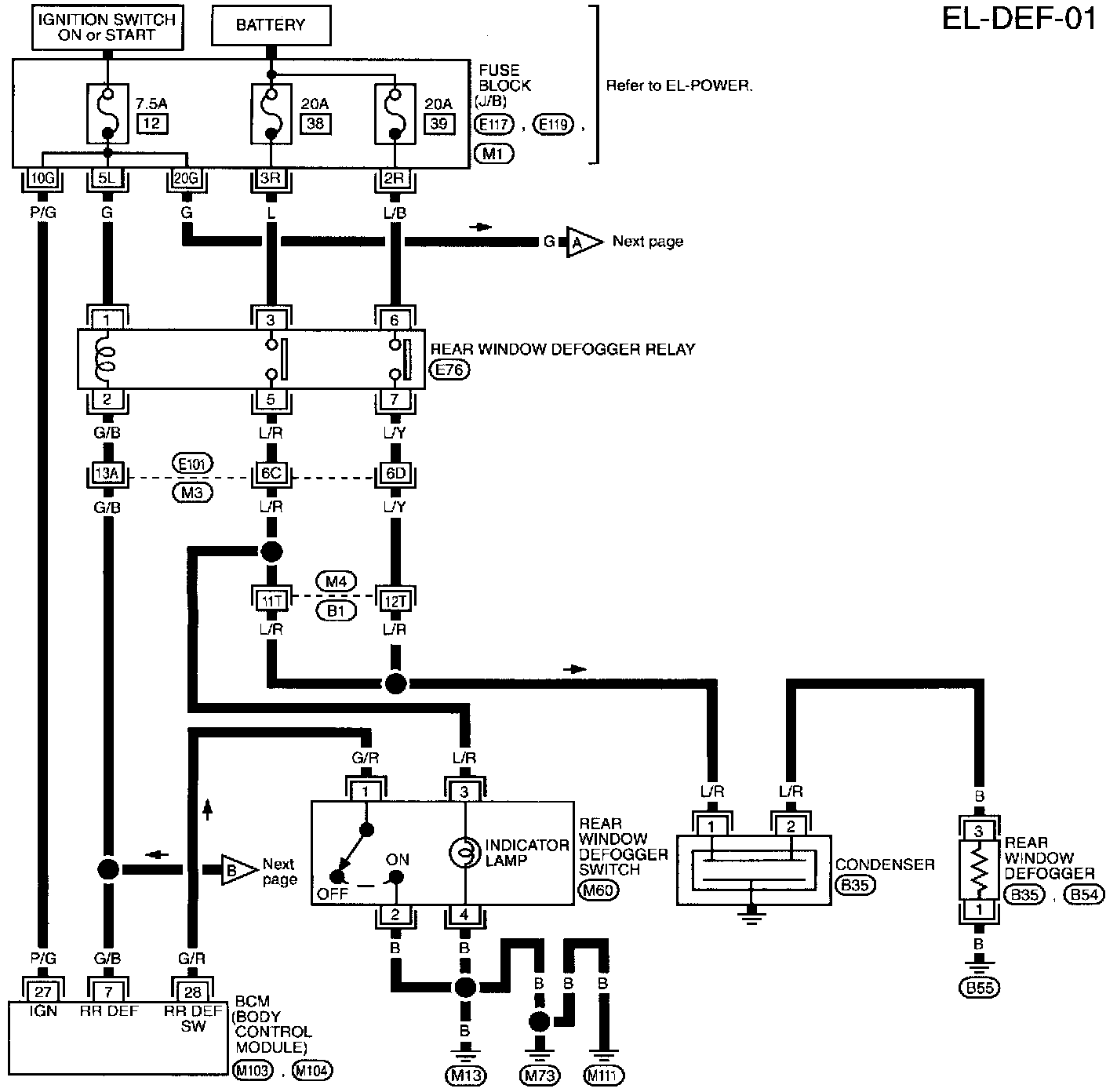

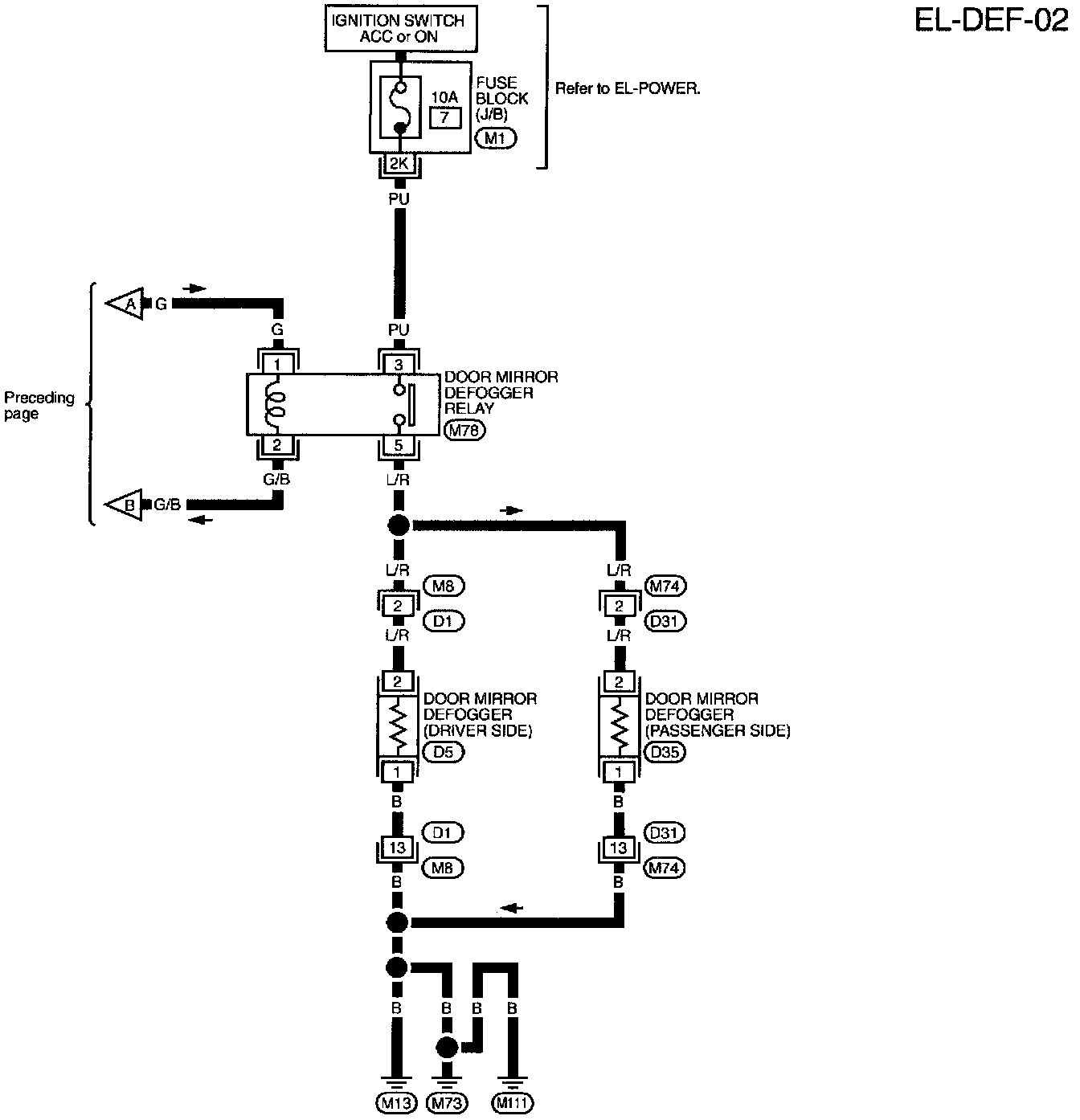

Electrical Diagrams
Electrical Diagrams
Electrical Diagrams

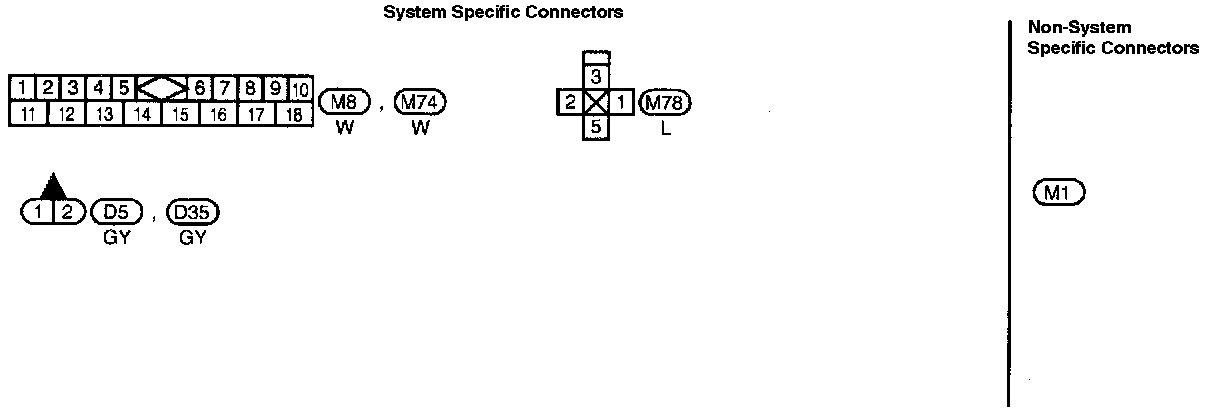

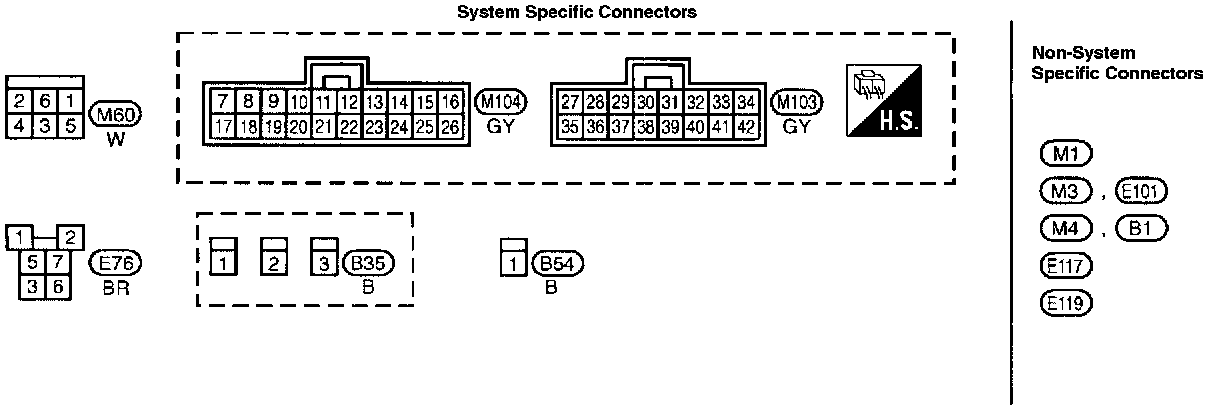

Circuit Connectors
Super Multiple Junction (SMJ)
Fuse Block - Junction Box (J/B)
